Class B 3-times vacuum pulsate

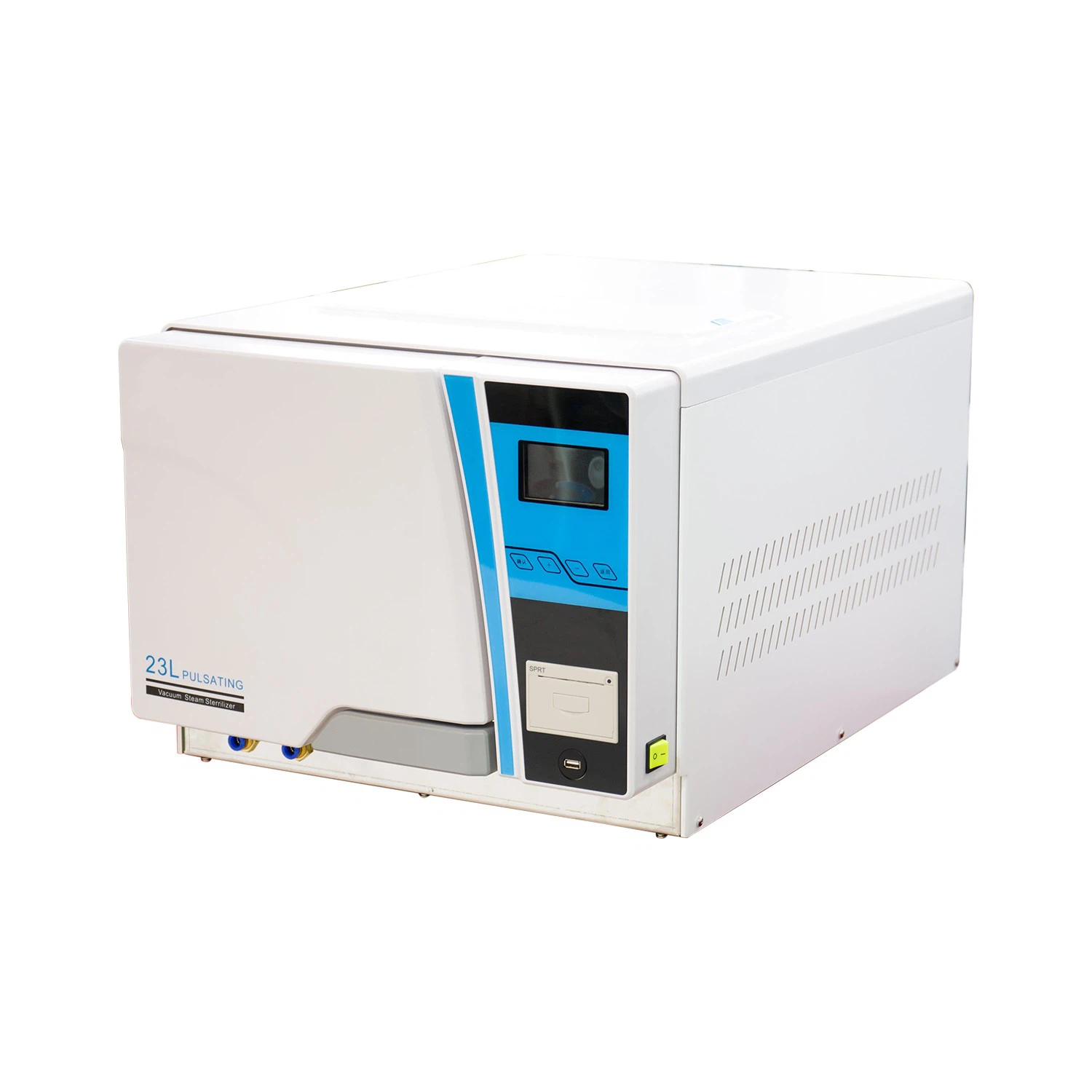

23 liter Desktop steam autoclave
Product introduction:
Desktop steam autoclave ,designed for small volume instruments and fabrics sterilization, especially for dental and Eye clinics
Products feature:
1. Modes : Pre-set cycles for solid instrument, rubber, packed device, user definition.
2. 3.5” LCD display: modes, temperature, pressure and other sterilization status.
3. Door safe system: mechanical and electromagnetic double lock device .
4. Pre&post Vacuum : discharging the cold air from camber, drying the sterilized articles.
5. Post sterilization cool unit: internal steam condensate collector, and heat ex-changer cool down the post waste gas and water. Make the drainage in low temperature.
6. Internal high efficiency steam generator, with water level monitor sensor.
7. Steam generator water inlet equipped with a water quality monitoring sensor, to keep the sterilization steam clean, avoiding the second time contamination and extending the machine service time .
8. big volume top water tank ,can support several sterilization cycles .
9. Mini printer, record the pressure, temperature, time, alarms during process.
10. USB port, download past sterilization records to a U-disk or computer for checking.
11. Alarm: over-temperature, water lack, over pressure, progress ending, other faults .
Parameter
Equipment name | desktop vacuum steam autoclave |
Module | YJ-TPV23 |
Inner chamber size | Ø24x47 |
70x45x40 cm | |
Weight | 50Kg |
Power supply | AC 220V /50Hz / AC 110V/60 Hz 1.7KW |
Material | 304 stainless steel chamber |
TECHNICAL CHARACTERISTICS | Working pressure : -80 kpa - 230kpa |
Working pressure : -80 kpa - 230kpa | |
Working temperature : 121-134 ℃ | |
Temperature measure precision not greater than 0.1℃ | |
Microprocessor control | |
Overheat shutoff and over pressure safety valve | |
Vacuum valve for air discharge | |
Pressure lock to be incorporated to prevent door opening at pressure | |
Internal steam electrical generator | |
Available cycles for a variety of items and tests, alarms, safety systems, adjustable temperature working range, user-reset time elapsed indicator, filtered air intake system, vacuum pump and vacuum sustainability diagnostic system, double protection for over pressure. | |
Bowie-Dick test kit and standard cycles controls/tests | |
PHYSICAL CHARACTERISTICS | 1. meshed internal trays removable and replaceable 2. chamber door including sealing gasket, handle, sealing ring and sealing groove 3.easy to read display indicating chamber pressure, temperature, steam generator pressure, door status and alarms. |
ACCESSORIES | 1.shelving holder 2.basket , shelving 3.water inlet and drainage soft tube 4.door spanner |
QUALITY MANAGEMENT | 1. CE ISO13485 ISO9001 CFDA certificate . 2. one year quality warranty |
Machine introduction：
Machine material application：
Material explain :
Metal: unpacked metal instruments
Packed : tools in packing bags or packed by non-women fabric . Fabric : dressings
Rubber : plastic and rubber which sterilization temperature at 121 ℃ or below .
BD test : Bowei-dick test .
Vacuum test : vacuum pump diagnose .
Parameter setting：
User can check the parameter set by manufacture at each material select ,commonly don’t need to change them , if you have special parameter request , you can set your unique parameters .
