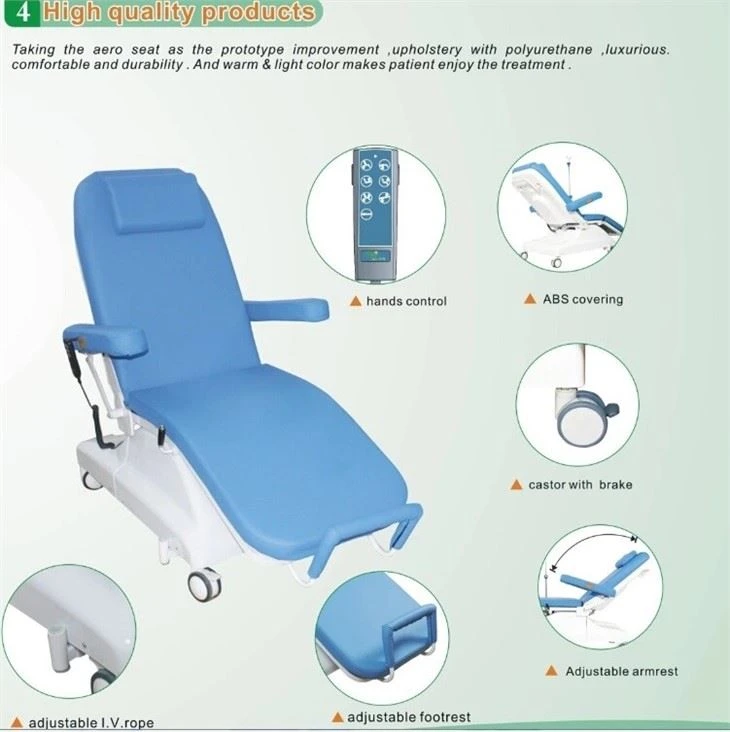

Adjustable Manual Dialysis Blood Donor Chair Bed
Description:
The whole chair bed with a steel frame provides a strong bearing capability, safe working load of up to 240kg. High density (45D) polyurethane foam for mattresses with moderate elasticity and durability provides additional comfort for patients having to sit for long periods.
Soft upholstery makes of breathable PVC material, is waterproof, fire retardant, anti-corrosion, easily clean & disinfection.
Four upholstery colors to choose from. Warm & light colors of upholstery contribute to patients' mental well-being.
Gas spring allows for adjusting positions manually.
Mute medical castors of diameter 150mm with separate brakes.
The detachable headrest pillow can be adjusted according to the height of each patient. Several OPTIONAL accessories: Paper roll holder, Over-bed Table, Folding table.
Features:
High-quality mild steel frame coated
Cushioned with foam mattress & Leather-covered & waterproof Arm board adjustable & I.V.Stand
Backrest adjustable by electric motor: 0-80° Knee-rest downwards by electric motor 0-45°
Height adjustable by electric motor: L1350-H1460mr Trendeleburg / Reverse trendeleburg:12°
Handset control & Silent castor & motors Carton size: 1950*950*800mm/1pc
Technical Parameters:
|
Total Length |
1960 mm±20mm |
|
Seat width |
630mm (total width 940mm including armrest)±20mm |
|
Seat height |
600mm±20mm |
|
Backrest length |
860 mm±20mm |
|
Leg rest length |
540mm±20mm |
|
Armrest Dimension |
L550*W150*D60mm±20mm |
|
Adjustable height Chassis Dimension |
560mm±20mm 930mm x 770mm±20mm |
|
Castor |
150mm diameter swivel castors with separate brakes |
|
Pillow size |
400 mm x 230 mmx80 mm±20mm |
|
Weight |
70KGS±3KGS |
|
Safe Maximum Load |
240KGS |
|
Food table maximum load |
10 KGS |
|
Storage environment Temperature |
-20°C~-60°C, relative humidity: 10%~85% |
|
Operation environment Temperature: |
0°C~35°C, relative humidity: 10%~85% |
|
Backrest Adjustment |
0-80° |
|
Tips |
Leather PVC leather Cushion 45D Sponge Frame Q235 steel Color Blue Green |
Application Scope:
Passion Medical Chair is used for hemodialysis, blood donation, perdition dialysis oncology, chemotherapy, and rehabilitation.
