Products Description

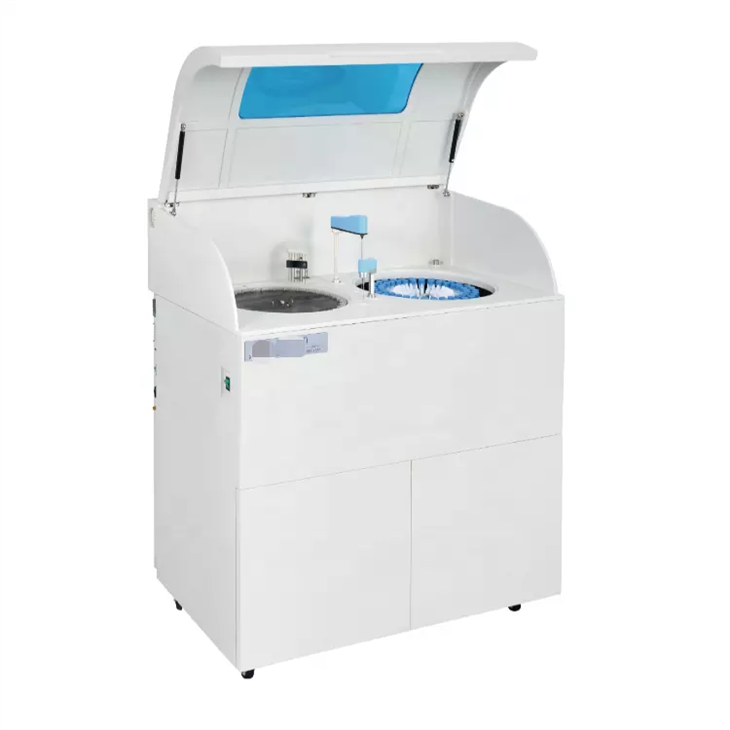

Medical device Factory price Fully automatic biochemistry analyzer with open system 180 test/hour
Advantages
Discrete, random access, fully automated
Up to constant 200 tests per hour
Optional for external bar code reader
30 positions for samples and 60 positions for reagents
Automatic probe cleaning, liquid level detection, collision protection
Reversed optic system with 8 wavelengths: 340-670nm Refrigerated reagent and sample compartment
30 positions for samples and 60 positions for reagents
Automatic probe cleaning, liquid level detection, collision protection
Reversed optic system with 8 wavelengths: 340-670nm Refrigerated reagent and sample compartment
Operation System
Windows XP or Windows 7 Home, easy to operate
Automatic storage, automatic backup, no time limit and storage limit, Permanently preserve all kinds of data English print report, the user can modify the print format English online help and operation guide
The test parameter setting is completely open
Real-time monitor the status of sample tray, reagent tray and reaction tray
Real-time monitor the status of reaction cup, lamp and purified water
Real-time display the reaction tray humidity and reagent remain
Real-time display the reaction curve, calibration curve and QC chart
Automatically check calibration curve and select the calibration type with the best fitting
Calibration Mode: Linear, Logit-4p, Logit-5p, Spline, Factor, Polynomial
Inspection and Judgment: Reaction end point judgment, reaction linear range
judgment, substrate depletion judgment, reaction limit inspection, reagent blank absorbance judgment
The test parameter setting is completely open
Real-time monitor the status of sample tray, reagent tray and reaction tray
Real-time monitor the status of reaction cup, lamp and purified water
Real-time display the reaction tray humidity and reagent remain
Real-time display the reaction curve, calibration curve and QC chart
Automatically check calibration curve and select the calibration type with the best fitting
Calibration Mode: Linear, Logit-4p, Logit-5p, Spline, Factor, Polynomial
Inspection and Judgment: Reaction end point judgment, reaction linear range
judgment, substrate depletion judgment, reaction limit inspection, reagent blank absorbance judgment
RS232 standard interface, support the intranet and remote printing
Hot Tags: Fully Automatic Biochemistry Analyzer, China, suppliers, manufacturers, factory, low price
Specifications
Test Speed: constant 160tests/hour, up to 220tests/hour
Test method: End-point, Fixed-time (two point method), kinetic
Reaction tray: 81 UV cuvettes (disposable)
Mini reaction volume: 150μl, save reagent cost Insert emergency at any time Support linear and non-linear calibration
Heating method: solid constant temperature closed direct heating
Temperature equilibrium time: less than 3minutes,
Reaction Temperature: 37±0.2°C
Temperature Fluctuation: ± 0.2°C
Test method: End-point, Fixed-time (two point method), kinetic
Reaction tray: 81 UV cuvettes (disposable)
Mini reaction volume: 150μl, save reagent cost Insert emergency at any time Support linear and non-linear calibration
Heating method: solid constant temperature closed direct heating
Temperature equilibrium time: less than 3minutes,
Reaction Temperature: 37±0.2°C
Temperature Fluctuation: ± 0.2°C
Optical System :
Integrated full closed optical system, after spectrometric method, no
mechanical parts, not moldy, no maintenance cost
8 wavelengths, selectable among 340-800nm
Absorption range: 0.00-4.00Abs
Halogen-tungsten lamp has more than 2000hrs service time
Center wavelength deviation: ±2nm, half wave width less than 12nm
Stray light less than 0.3%
Resolution: 0.0001Abs
Integrated full closed optical system, after spectrometric method, no
mechanical parts, not moldy, no maintenance cost
8 wavelengths, selectable among 340-800nm
Absorption range: 0.00-4.00Abs
Halogen-tungsten lamp has more than 2000hrs service time
Center wavelength deviation: ±2nm, half wave width less than 12nm
Stray light less than 0.3%
Resolution: 0.0001Abs
Reagent/Sample Tray:
60 reagent + 30 sample positions
Advanced reagent tray refrigeration system, temperature: 4-12°C (optional function)
Automatically detect reagent remain, real time display reagent remain
Reagent bottles with 15ml,30ml,50ml,70ml are available.
Support single/ dual reagents, reagents are open
Real time display reagent tray status
Automatically judge substrate depletion
60 reagent + 30 sample positions
Advanced reagent tray refrigeration system, temperature: 4-12°C (optional function)
Automatically detect reagent remain, real time display reagent remain
Reagent bottles with 15ml,30ml,50ml,70ml are available.
Support single/ dual reagents, reagents are open
Real time display reagent tray status
Automatically judge substrate depletion
Sample adding and rinsing system :
Sample volume: 2-100μl , 0.1μl by step,
Reagent volume: 20-500μl, 1μl by step
Water consumption: less than 3L/hour
Sample volume: 2-100μl , 0.1μl by step,
Reagent volume: 20-500μl, 1μl by step
Water consumption: less than 3L/hour
