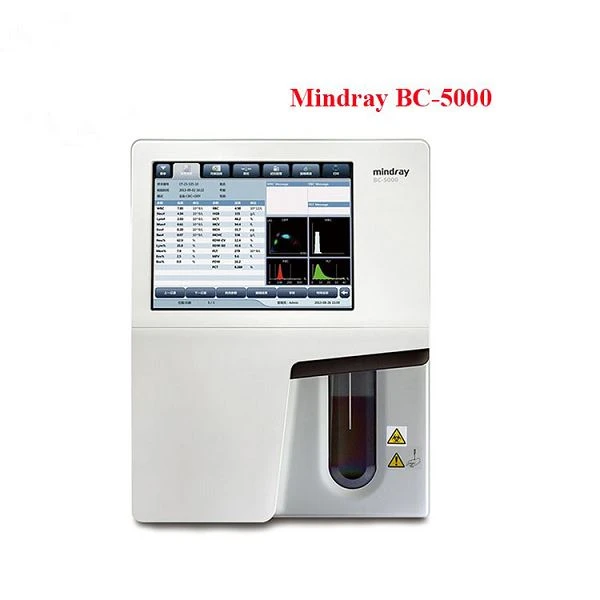

Based on the continuous innovation of MindRay in blood learning, the BC-5000 is particularly personalized for diagnostic laboratories that require the results of CBC + 5.
So far, the lightest is the most compact part of the blood science analyzer. The BC-5000 is a very easy to use and innovative analyzer. Its profitability is under the power of CBC and white blood cells in 5 parts. Its goal is to meet the needs of the laboratory, influential and innovative solutions to meet the needs and surpass global customers.
WBC 5-part difffferentiation, 23 reportable parameters, 3 histograms and 3 scattergrams Whole blood mode, Capillary whole blood mode and Prediluted mode Tri-angle Laser scatter + Chemical dye + Flow cytometry technology Dedicated optical counting channel for Basophil measurement Powerful capability of flflagging abnormal cells 10.4 inch large TFT touch screen with user-friendly software Large storage capacity: up to 20,000 samples Throughput: 40 samples per hour Sample volume is only 15μL which is ideal for pediatrics.
| Technical Specififications | |
| Principles | Impedance method for RBC and PLT counting Cyanide free reagent for hemoglobin test Flow Cytometry (FCM) + Tri-angle laser scatter + Chemical dye method for WBC 5-part difffferential analysis and WBC counting |
| Parameters | 23 parameters: WBC, Lym%, Mon%, Neu%, Bas%, Eos%, Lym#, Mon#, Neu#, Eos#, Bas#, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, PLT, MPV, PDW, PCT 3 histograms for WBC, RBC and PLT 3 scattergrams for WBC difffferential |
| Reagent | Diluent, DIFF lyse, LH lyse, probe cleanser |
| Sample Volume | Prediluted mode 20 μL Whole blood mode 15 μL Capillary whole blood mode 15 μL |
| Throughput | 40 samples per hour |
| Display | 10.4 inch TFT Touch Screen |
| Multi-language | Chinese, English |
| Data Storage Capacity | Up to 20,000 results including numeric and graphical information |
| Communication | LAN port supports HL7 protocol |
| Interface | USB, LAN Support uni-directional LIS |
| Printout | External Laser printer / Inkjet printer, various printout formats and user-defifined formats |
| Operating Environment | Temperature: 10°C~30°C Humidity: 20%~85% Air pressure：70 kPa~106 kPa |
| Power requirement | 100V-240V 50Hz/60Hz |
| Dimension and Weight | Depth(400 mm) x width(320 mm) x height(410 mm) Weight :24kg |
