Portable Dental X Ray(YJ-DXP02) and sensor(YJ-HDR500) solution
1. Product description:
Features(YJ-DXP02):
1.Computer Touch control.
2.Toshiba D-045 Tube.
3.High Frequency DC.
4.Replaceable battery.
TECHNICAL SPECIFICATIONS
Tube Voltage: 65kV
Tube Current: 2mA
Time Exposure: 0.1~~2.5s
High pressure generator: 40kHz DC
Rated Power: 400VA
Focal Spot To Skin Distance: 110mm
Focus Spot Size: 0.4mm(TOSHIBA)
Charger Input Voltage: AC100V～240V±10%
Input Voltage: 25.2V DC
Supply Frequency: 50/60Hz±1%
Radiation Leakage: <0.025mGy/h
Battery: 24.2V DC
Weight: 2.2KG
Dimensions: 17cm×13cm×15cm(L×W×H)

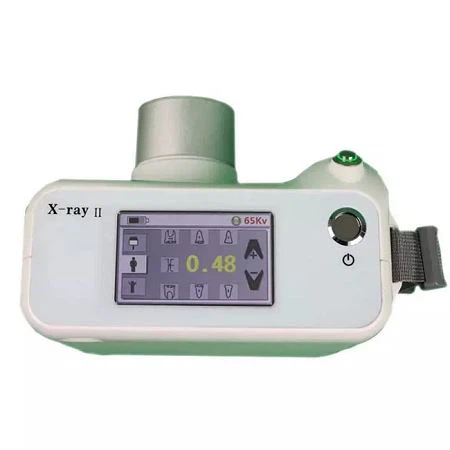

Dental x-ray More picture:
Features of Dental X Ray Sensor YJ-HDR500
Long lifespan, high definition, high efficiency, high benefit, Dicom.
Multiple user solution. Powerful user solution. Powerful image process software.
Specifications
Model | YJ-HDR500 | |
Chip Type | CMO APS | |
Fiber plates | YES | |
Scintillator | Csl:Ti | |
Size： | Size 1:27.5*38.5 | Size 2:32.3*44.3 |
Effective area | Size 1:22.5*30 | Size 2:27*36 |
Pixel dimension | Size 1:375mm3 | Size 2:972mm3 |
Pisel | 18.5µm | |
Resolution | Size 1:1.9m(1600*1200) | Size 2:2.7m(1920*1440) |
Operating system | Theore tical:27 | |
Others | True:>20 | |
Multi-language | Czech,English,French,German,Hungarian,Italian,Polish,Portuguese,Russian,Spanis h,Turkish,Chinese. | |

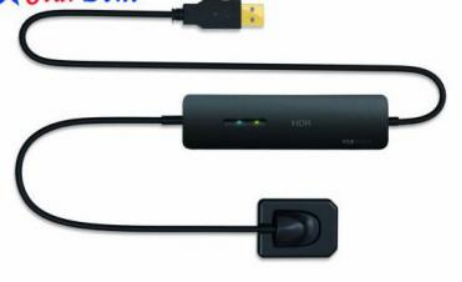

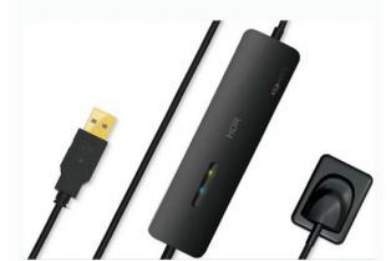

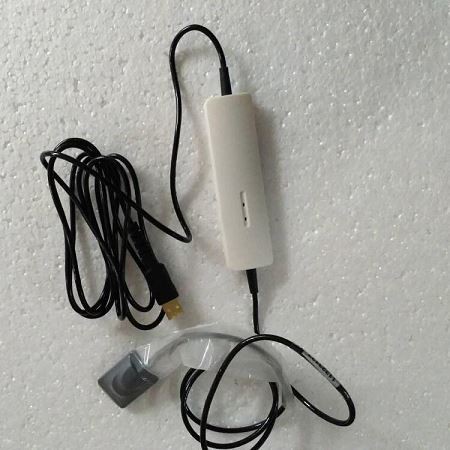

Dental sensor image :
3. Work:

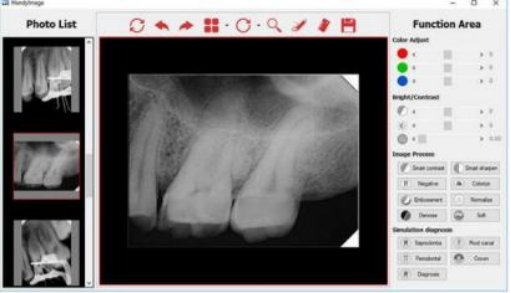

4.Clinical Image:
