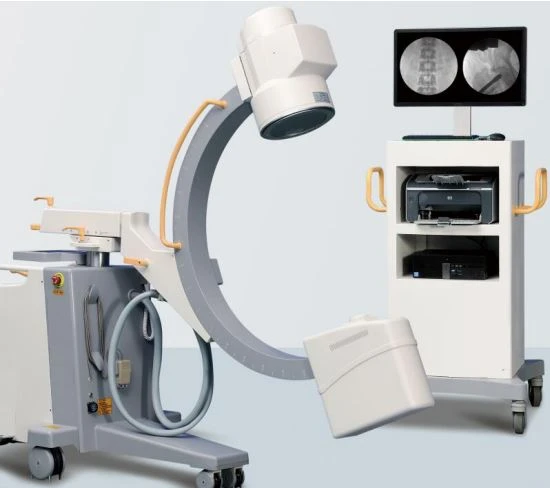

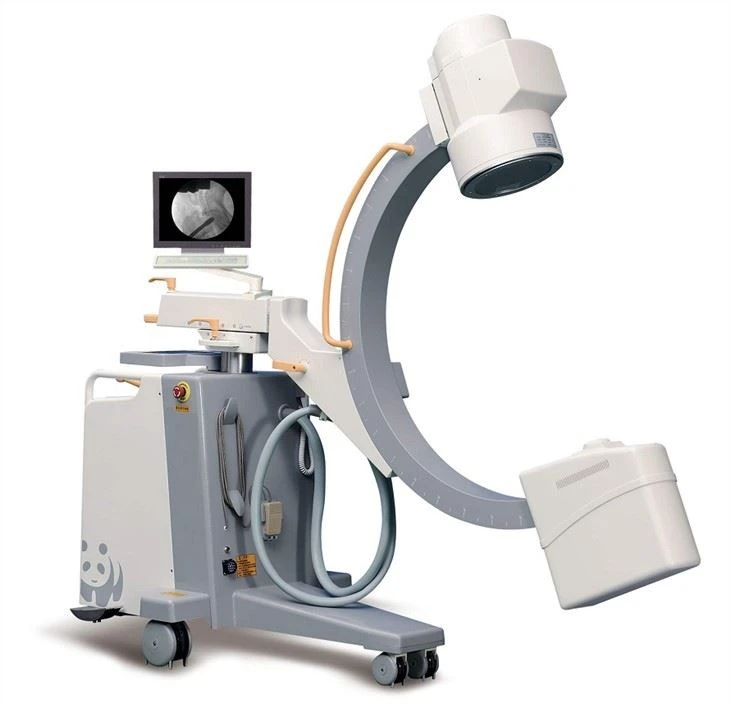

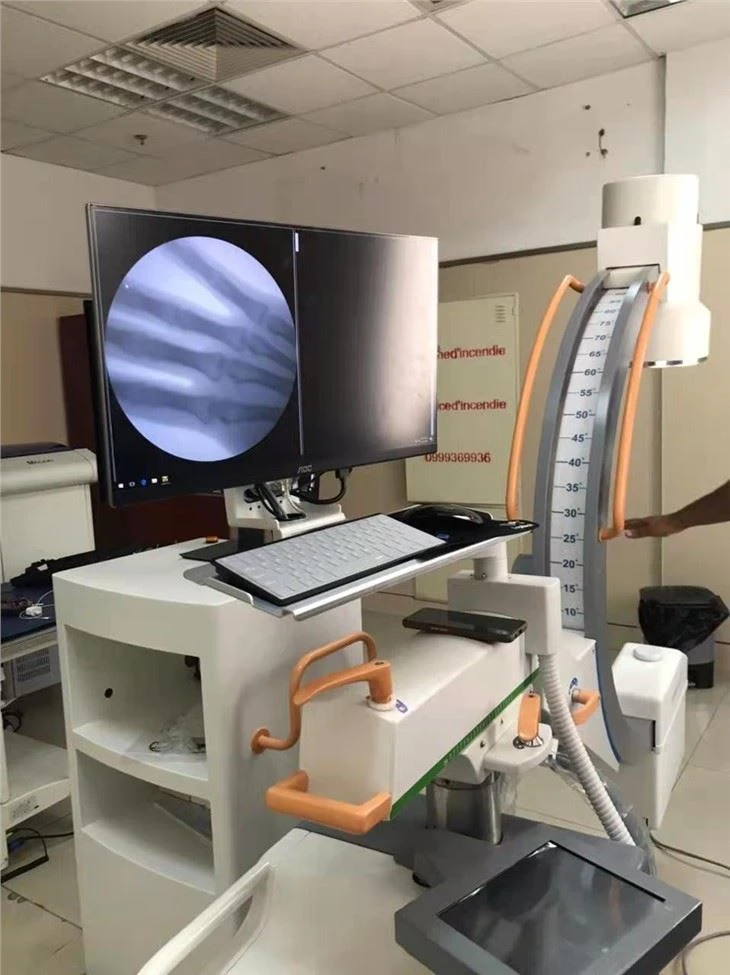

Digital C arm x-ray machine
Application :
Widely used in an operating room, X-ray department, emergency room, intervention and peripheral angiography. General surgery, urology, chest surgery, trauma, spine surgery, abdominal surgery, orthopedics, bone reduction and fixation, endoscopy and surgery.Intervertebral disc angiography and angioplasty.
I. Key features:
1With HF & HV generator, inverter, and High-quality image intensifier, the x-ray generator can work stably. It also reduces the damage for the doctors caused by radiation.
2)10.4" LCD friendly interface control board: easy operation and can be rotated to 180°(L90°, R90°) Compared with an ordinary keyboard, our LCD display is not easy to be oxidized Besides, the trouble will be displayed in Chinese, which will improve the efficiency of fault diagnosis.
3)Pulse and boost fluoroscope provides all kinds of sizes of patients with a clear diagnosis.
4)With a steering handle, it can adjust the direction quickly when moving. And parallel movement function is also available.
5) Equipped with unique block line wheels, it can avoid accidents when the machine moves.
6)Large free space in an arc: the space can reach 800mm, which is convenient for operation.
7)9"/6"/4.5" three fields of vision: it facilitates diagnosis of partial enlargement.
8)CCD camera with rotation function: range of camera rotation: 360°.
9)Original Korean linear slide rail can make the movement of the machine flexibly.
10)Applied with Omron Relay, the noise can be reduced and the lifetime of the equipment can be increased
Main specification | |
HF generator | 110KV, 3.5KW , 40kHz / 120KV, 5KW , 40kHz |
Fluoroscopy mode | Fluoroscopy mode40~110kv /120kv 0.5~5mA (KV manual and automatic); Pulsd fluoroscopy 40~110kv /120kv 0,5-5mA Boost fluoroscopy 40~110kV /120kv 5~10mA; Photography 40~110kV /120kv 1~250mAs |
X-ray tube | Dual-focus fixed anode:0.6mm/1.5mm Dual-focus rotating anode:0.3mm/0.6mm Italy IMD Technology |
Image intensifier | Japan Toshiba Brand |
CCD camera | Japanese Watt Brand, 360° rotation |
Image system | 5 Degree recursive Noise Reduction Frame freezing Thousands of image data storage Image conversing and rotating Screen display with image comparison Support “one-click” print, print the image report Equip with Dicom 3.0 network port Support Dicom 3.0 standard data export function |
Mechanical motion specifications | Verticaltravel:0-400mm Horizontaltravel: 0~200mm(electric for optional) Rotation about horizontal axis: ±180° (electric for optional) Slipping along the circular arc rail (electric for optional) |
C-arm dimension | Distance of focal spot to image generator(SID): 1000mm Depth in arm≥650mm Mobile stand: 1800mm*800mm*1850mm Image system: 750mm*530mm*1680mm |
Standard configuration | High resolution CCD camera: 1set x-ray generator: 1set 9” image intensifier: 1set image processor: 1set 24'' LCD high definition display 1 set |
