Products Description

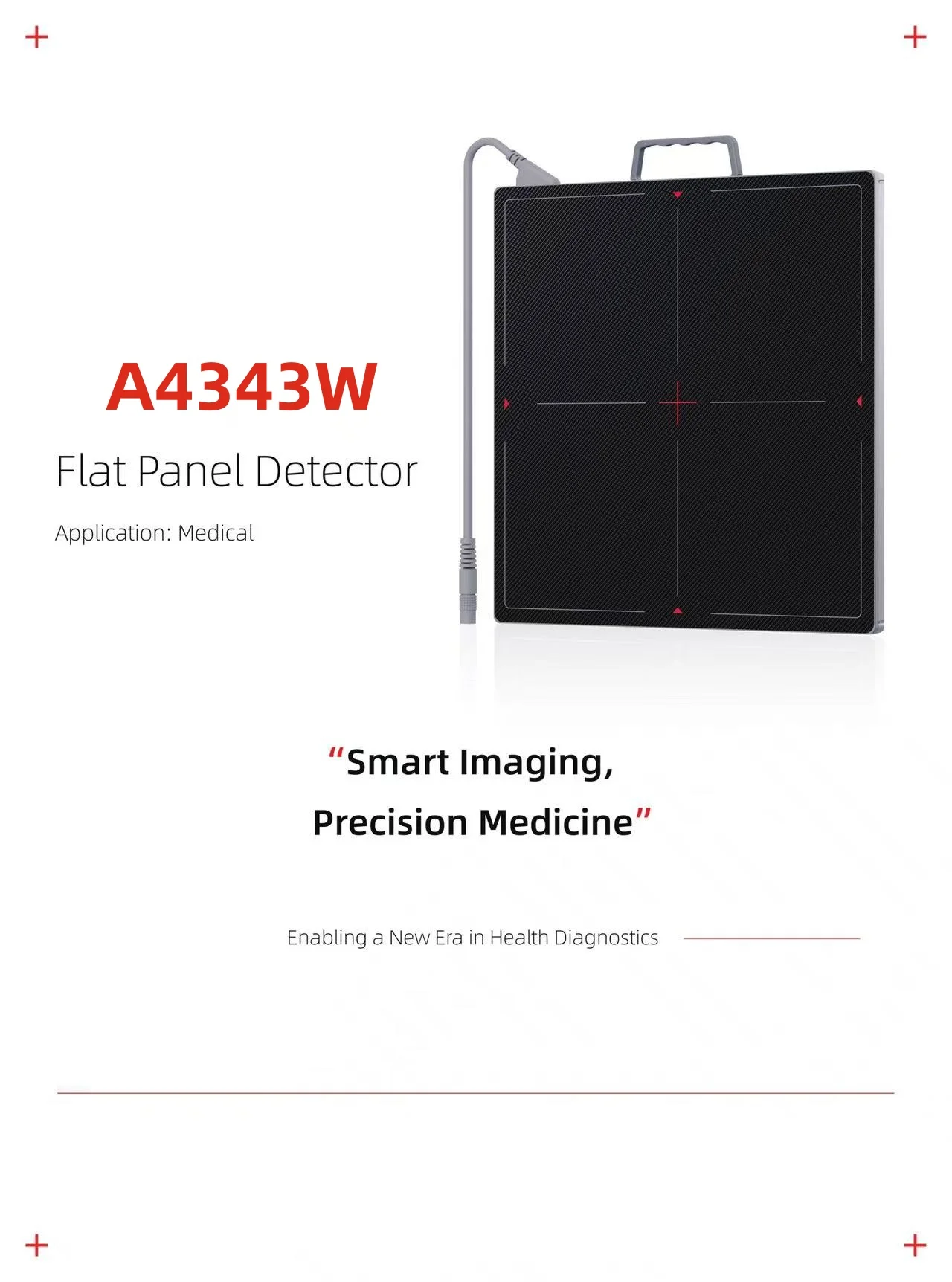

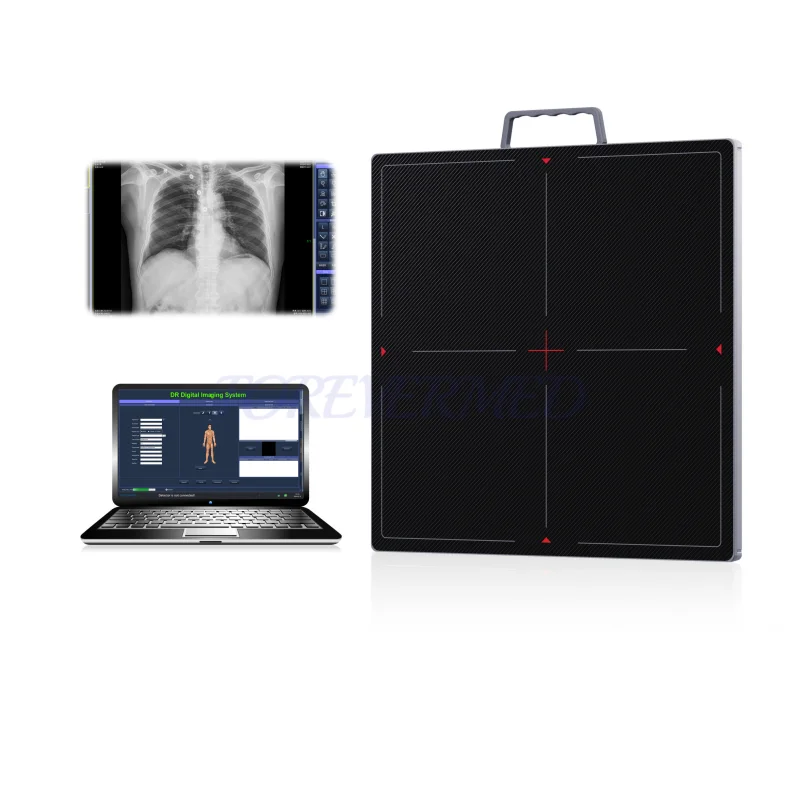

Flat Panel Detector X-ray Imaging DeviceYJ-A4343W
The EVS4343A Radiography Flat Panel Detector offers superior image quality with high DQE and resolution, designed for seamless integration into existing X-ray systems.
Its 17x17-inch size fits standard bucky trays, and the Lossless AED/AWC feature ensures fast image acquisition and smart workflow.
With a robust aluminum housing, IP53 protection, and support for IEEE 802.11ac transmission speeds up to 1300Mbps, it delivers reliable performance.
The detector supports advanced image processing, multiple connectivity options, and ergonomic design for improved patient throughput.
About us
We supply Clinical Equipment(Biochemistry Analyzer, Hematology Analyzer, Electrolyte Analyzer, Coagulation Analyzer, HbA1c, etc...), we devoted ourselves to sending you clients high-quality lab Clinical Equipment with long terms services.We are expecting to become your long-term business partner in China.
Our mission is that we operate on the basis of making it easy and simple to deal and enabling customers to save time and keep competitive in the medical field. We are looking forward to providing you with our best possible service. We have established a good after-sale service team, providing powerful backup force to our customers. In recent years, we have been granted the "Nationwide Medical Device After-sale Service Advanced Unit".
Henan Forever Medical Co., Ltd. is committed to being your trustworthy supplier and exporter in the field of medical equipment.
FAQ:
Q1: Which certifications do you have?
A: Most of our products are CE, ISO and RoHS certified, some medical equipment also have FDA approval.
Q2: What after sales services do you provide?
A: We offer technical, customer service & troubleshooting support for most of our products. Therefore if you have problems with any of our products, please contact us anytime and we will do our best to help.
Q3: How long is your warranty period?
A: We typically offer 12 months warranties for all our products, except some accessories which may have shorter warranty periods. Please check with our sales managers for the specific warranty period of your product.
Q4: Can I make order with different products?
A: Yes,customers can mixx products in one order.
Hot Tags: Flat Panel Detector X-ray Imaging, China, suppliers, manufacturers, factory, low price
|

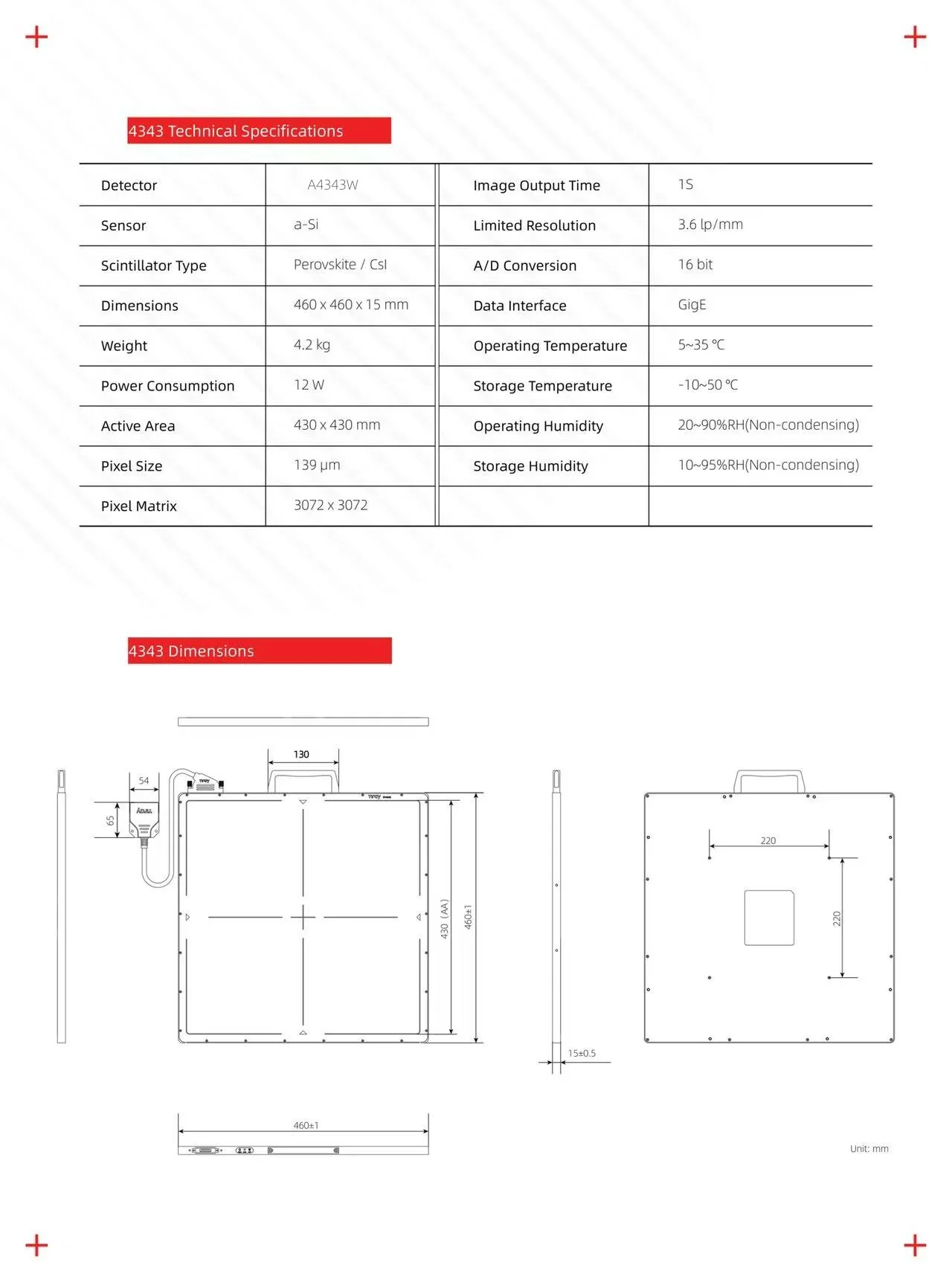

Electricals and interface
|
A/D Conversion 16 bits
|
|
Data Interface Gigabit Ethernet/802.11ac (only 5G)
|
|
|
Acquire Time wired: 1s; wireless: 3s
|
|
|
Exposure Control Software/Sync/AED
|
|
|
Memory 4 GB DDR4, 8 GB SD card
|
|
|
Mechanical
|
Dimension 460 × 460 × 15 mm
|
|
Weight 3.8kg (without battery)
|
|
|
Material Aluminum and magnesium alloys
|
|
|
Front Panel Carbon fiber
|
|
|
Enviromental
|
Temperature 10-35°C (operating);-10~50°C (storage)
|
|
Humidity 30-70% RH (non-condensing)
|
|
|
Ingress Protection IP51 (Customized to IP67)
|
|
|
Sensor
|
Receptor Type a-Si
|
|
Scintillator Gos / CsI:TI
|
|
|
Active Area 430 x 430 mm
|
|
|
Resolution 3072 x 3072
|
|
|
Pixel Pitch 139 μm
|
|
|
Power Supply & Battery
|
Adapter In AC 100-240V,50-60Hz
|
|
Adapter Out DC 24V,2.7A
|
|
|
Power Dissipation <20 W
|
|
|
Standby Time 6 h
|
|
|
Recharge Time 4.5 h
|
|
|
Image Quality
|
Limiting Resolution 3.5 LP/mm
|
|
Energy Range 40-160 KV
|
|
|
Dynamic Range ≥84 dB
|
|
|
Sensitivity ≥0.54 LSB/nGy
|
|
|
Ghos <1% 1st frame
|
|
|
DQE 42% @(1 LP/mm)
|
|
|
28% @(2 LP/mm)
|
|
|
MTF 68% @(1 LP/mm)
|
|
|
38% @(2 LP/mm)
|
|
|
20% @(3 LP/mm)
|
