Medical X Ray Dry Thermal Imager Printer
Short Description

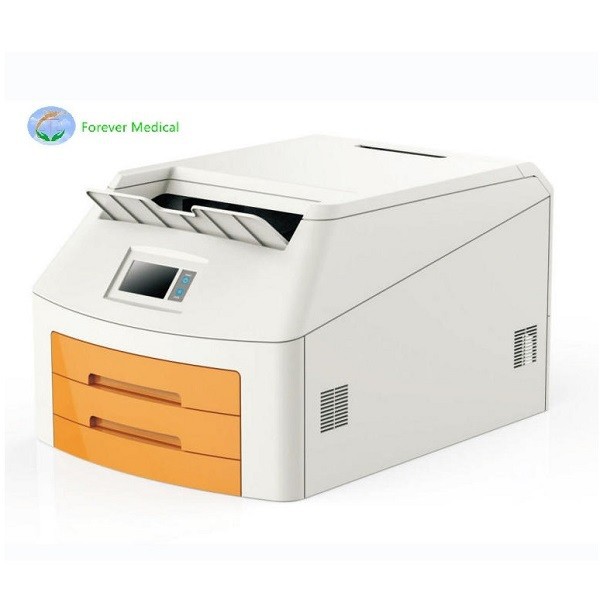

The KX-410 Dry Imager is a thermo-graphic film processor designed for digital radiography imaging.
US, as well as CR/DR applications for GenRad, Orthopaedics, Dental Imaging and more. The KX-Series Dry Imager dedicates to precision in diagnosis with its outstanding image quality, and offers affordable imaging catering to your needs.
- Daylight load film cartridges
- Double tray, supports 4 film sizes
- Speed printing, higher efficiency
- Economical, stable, reliable
- Compact design, easy installation
- Straight forward operation, user-friendly
The KX-410 series dry imager is a medical imaging output device. It is engineered
to achieve its optimal performance when used with KX-410 medical dry films.
Different from the old method of film processors, our dry imager can be operated
under daylight condition. With the elimination of chemical liquid, this thermal dry
printing technology is significantly more environmentally friendly. However, to
ensure the quality of output image, please keep away from heat source, direct
sunlight, and acid and alkaline gas such as hydrogen sulfide, ammonia, sulfur
dioxide, and formaldehyde, etc.
|
Print Technology |
Direct thermal (dry, daylight-load film) |
|
Spatial Resolution |
320dpi (12.6 pixels/mm) |
|
Throughput |
14*17”，50sheets/h;8*10” ^70 sheets/h |
|
Grayscale Contrast Resolution |
14 bits |
|
Film Transferring Method |
Rubbing |
|
Film Tray |
Two supply tray, 200-sheet capacity total |
|
Film Sizes |
8%1O”，10”x12”，14nx17n |
|
Applicable film |
Medical Dry Thermal Film (blue or clear base) |
|
Interface |
10/100/1000 Base-T Ethernet (RJ-45) |
|
Network Protocol |
Standard DICOM 3.0 connection |
|
Image Quality |
Automatic calibration using built-in densitometer |
|
Control Panel |
Touch Screen, Online Display, Alert, Fault and Active |
|
Power Supply |
100-240VAC 50/60HZ 600W |
|
Weight |
50Kg |
|
Operating Temperature |
5X>35°C |
|
Storage Humidity |
30%-85% |
|
Storage Temperature |
-22°C-50X： |
|
Base Holding |
Optional |
