Products Description

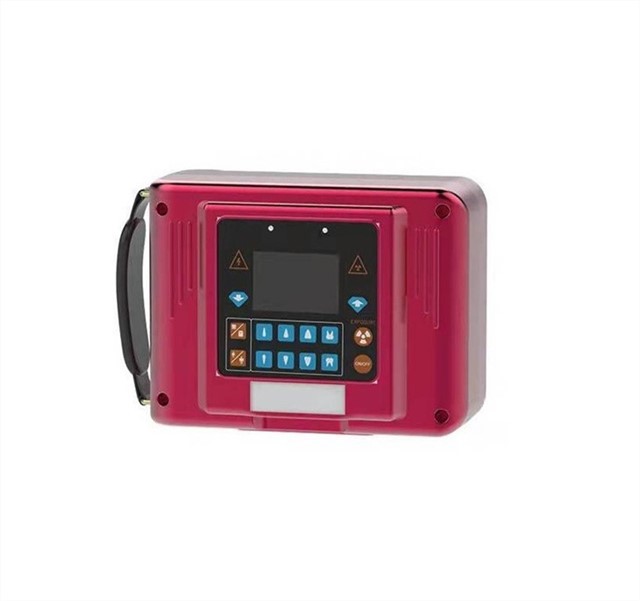

Mobile Digital X-ray Machine Radiography Portable X-ray Machine
Portable digital X-ray generator with fast exposure times, reduced radiation exposure, an aluminum housing, laser diodes for precise placement, and much more
Using high-frequency inverter technology together with the stable high-voltage output for obtaining good images quality.
Compact design makes it more easier to be carried out to work conveniently in different areas and locations.
With three exposure control modes: remote control, hand brake and panel button.
Fault self-diagnosis,self-protection.
With flexible digital interface and the SDK protocol. Users can control the core programming deeply and the machine can be suitable for different DR detectors.
Detailed Pictures
Core strengths
Choose the plan that suits you best.
Cost-Effective
Using high-frequency inverter technology together with the stable high-voltage output for obtaining good images quality.
remote control
With three exposure control modes: remote control, hand brake and panel button
conveniently
Compact design makes it more easier to be carried out to work conveniently in different areas and locations.
Integrating Dr System
With flexible digital interface and the SDK protocol. Users can control the core programming deeply and the machine can be suitable for different DR detectors.
FAQ
Q: 1. What kind of medical equipment does your company specialize in?
Q: 2. Which countries or regions do you export to?
Q: 3. What is your shipping method and delivery time?
Q: 4. What payment methods do you accept?
Q: 5. May we have a tour of your factory?
Q: 6. Do you provide after-sales service?
Q: 7. Can you provide customized solutions for medical devices?
Q: 8. What is your price range for medical equipment?
Q: 9. How can we guarantee the authenticity of your products?
Q: 10. What is your target market for medical devices?
Contact Information
Tel: +8617737780581
Phone: +8617737780581
Email: julianne@yjcompany.com
Address: Wanda Center, Jinshui District, Zhengzhou, Henan, China
Whatsapp: +8617737780581
Skype: live:.cid.f4a1b4801c7fee8
Wechat: +8618237132626
Hot Tags: portable veterinary x ray machine, China, suppliers, manufacturers, factory, low price
|
Technical Parameters |
|||
|
Model |
YJ-M35-Vet |
YJ-M5-Vet |
YJ-M8-Vet |
|
Maximum output power |
3.5 kW |
5.0 kW |
8.0 kW |
|
Operating frequency |
≥30kHz |
||
|
Power capacity |
70kV@50 mA |
100kV@50 mA |
100kV@80 mA |
|
Radiographic kV range |
40-100 kV |
40-110 kV |
40-125 kV |
|
Radiographic mA range |
50, 40, 32 (mA) |
100, 80, 63, 50, 40, 32 (mA) |
125, 100, 80, 63, 50, 40, 32 (mA) |
|
mAs range |
0.32-200 mAs |
0.32-315 mAs |
0.32-400 mAs |
|
Exposure time range |
0.01-6.3 s |
||
|
Input power type |
220V AC±10%, 50Hz/60Hz Option: 110V AC±10%, 50Hz/60Hz |
220V AC±10%, 50Hz/60Hz |
|
|
Dimensions (L*W*H) |
370 mm*260 mm*230 mm |
||
|
Optional Configurations |
||
|
Flat Panel Detector |
||
|
Detector technology |
Amorphous Silicon (Csl) |
|
|
Active area |
430mm*430mm |
360mm*430mm |
|
Imaging Working Station |
||
|
CPU |
Intel i5 |
|
|
RAM |
8G |
|
|
Hard disk |
1TB |
|
