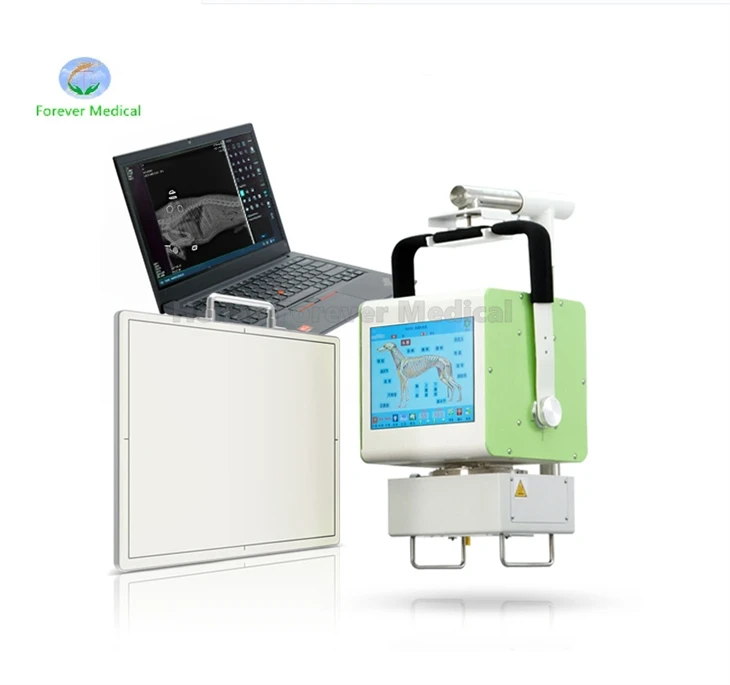

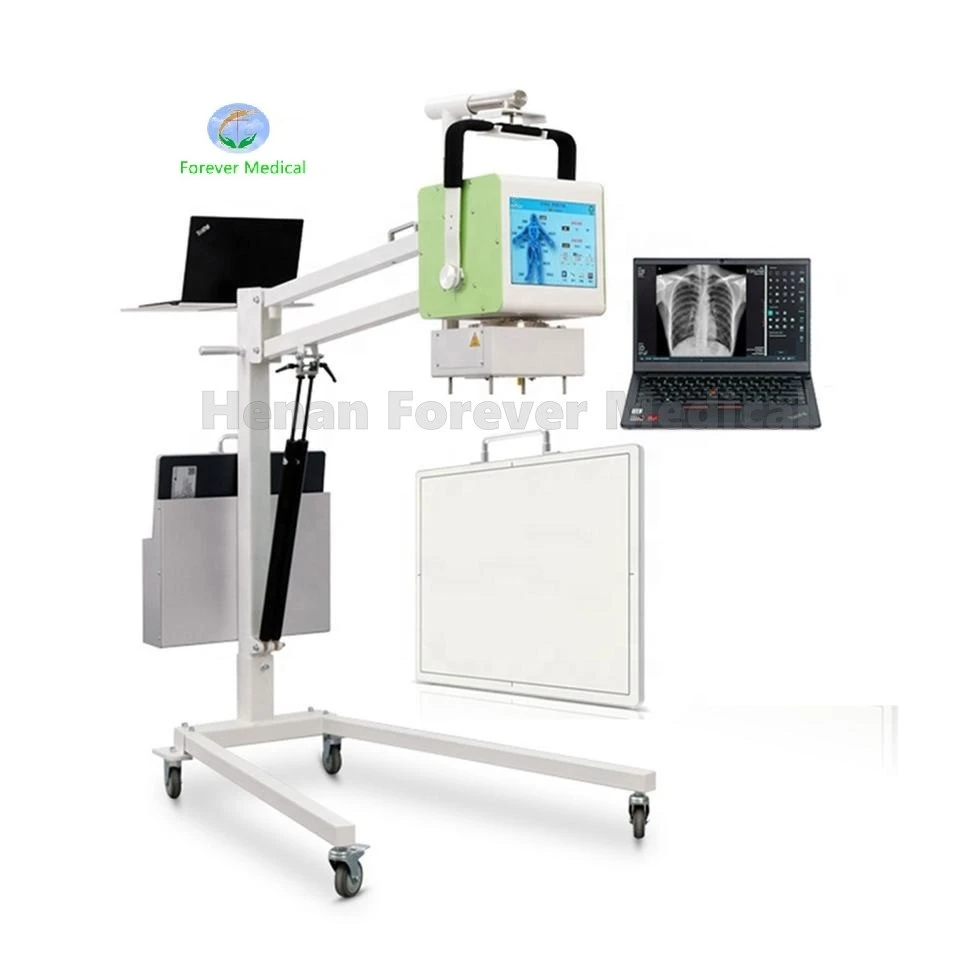

5kW 100mA Digital Portable X-Ray Machine with Flat Panel Detector.
Cutting-edge mobile x-ray solution with a powerful 5kW generator and a 100mA tube for flexible imaging. The cordless flat panel detector improves portability and production efficiency. Suitable for emergency, military, and veterinary purposes. Produces high-quality digital photos using modern image processing techniques. The design is compact and sturdy, ensuring reliable performance in demanding settings.
Products Description
Feature
1, Can be widely used in the examination and diagnosis of human/veterinary, suitable for hospitals, clinics, physical examination centers, ambulances, disaster relief, first aid and other medical institutions
2, Simple structure, small size, light weight, not subject to environmental restrictions, no need to establish lead shielding darkroom, easy to carry out work in different areas, can be used for field and special occasions X-ray photography
3, Optional mobile rack flexible and convenient, can meet different station requirements, can be used as a hospital ward bedside shooting
4, With three exposure control methods: remote control, hand brake;
5, Fault self-protection, self-diagnosis, tube voltage, tube current high-precision control;
Features
- Software canbe switched from veterinary into human
- Max height: 2068.05 mm
- Min height: 1050.75 mm
- Come with high quality computer
- F-D-A approved flat panel detector
- It is available for buying generator or stand only
- Traveling box package is also available
X-ray detector(Flat Panel Detector)
Type: Amorphous Silicon
Scintillator: Cesium Iodide
Active Area: 14x17Inch
Pixel Matrix: 2304 × 2800
Pixel Pitch: 150um
A/D Conversion: 16bits
DQE: >=70%
Spatial Resolution: 34Lp/cm
Acquisition time: ≤2S
Ingress Protection: IPX1
The use of high frequency inverter technology production, stable high voltage output can obtain good image quality
Can be used with DR Flat detector to form DR Digital X-ray photography system.
|
|
|
Detailed Pictures
fAQ
Q: 1. What kind of medical equipment does your company specialize in?
Q: 2. Which countries or regions do you export to?
Q: 3. What is your shipping method and delivery time?
Q: 4. What payment methods do you accept?
Q: 5. May we have a tour of your factory?
Q: 6. Do you provide after-sales service?
Q: 7. Can you provide customized solutions for medical devices?
Q: 8. What is your price range for medical equipment?
Q: 9. How can we guarantee the authenticity of your products?
Q: 10. What is your target market for medical devices?
Q: 1. What kind of medical equipment does your company specialize in?
Q: 2. Which countries or regions do you export to?
Q: 3. What is your shipping method and delivery time?
Q: 4. What payment methods do you accept?
Q: 5. May we have a tour of your factory?
Q: 6. Do you provide after-sales service?
Q: 7. Can you provide customized solutions for medical devices?
Q: 8. What is your price range for medical equipment?
Q: 9. How can we guarantee the authenticity of your products?
Q: 10. What is your target market for medical devices?
contact information as follows
tel: +8617737780581
Phone: +8617737780581
Envelope: julianne@yjcompany.com
Address:Zhengzhou Province, China
Whatsapp: +8617737780581
Skype: live:.cid.f4a1b4801c7fee8
Wechat: +8618237132626
Hot Tags: veterinary x ray machine, China, suppliers, manufacturers, factory, low price
|
Parameter
|
|
|
Output Power
|
5kW
|
|
Rated Voltage
|
220~240VAC
|
|
Dimension
|
265mm (L)x240mm(W) x210mm(H)
|
|
Weight
|
15KG
|
|
Communication in terface
|
RS-232
|
|
Technical parameter
|
|
|
Exposure kV range
|
40kV-125kV,1kV step
|
|
Exposure mA range
|
10-100mA
|
|
Exposure ms range
|
1-4000ms
|
|
Exposurem As range
|
0.1-200mAs
|
|
Maximum power
|
5.3kW
|
|
X-ray focus value
|
Small focus: 0.6; Big focus:1.8
|
|
Max. bulb current of small filament
|
20mA
|
|
Max.bulb current of large filament
|
100mA
|
|
X-ray tube intrinsic filtration
|
0.6mmAI
|
|
Combined head filtration
|
1.5mmAI
|
