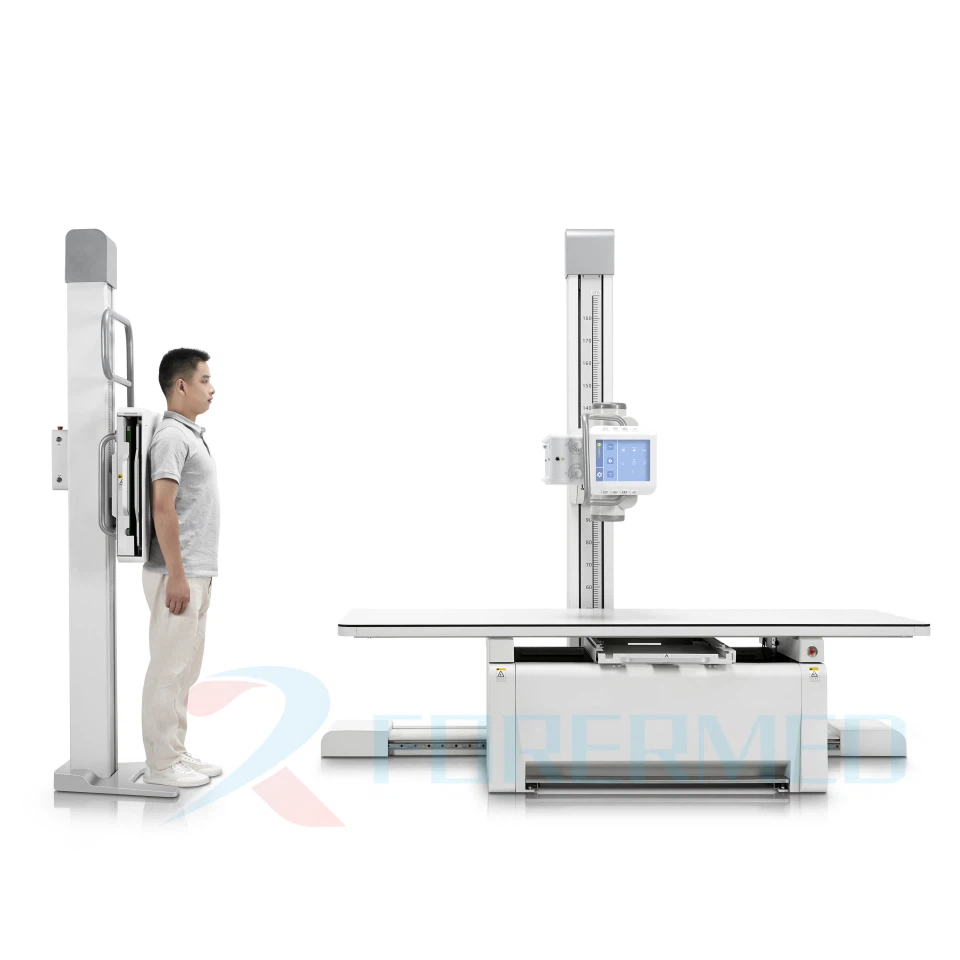

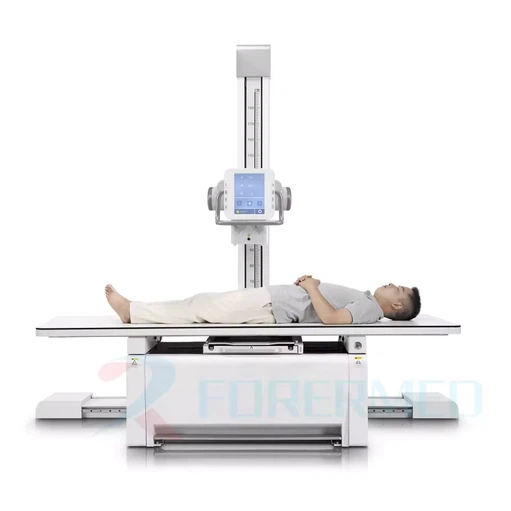

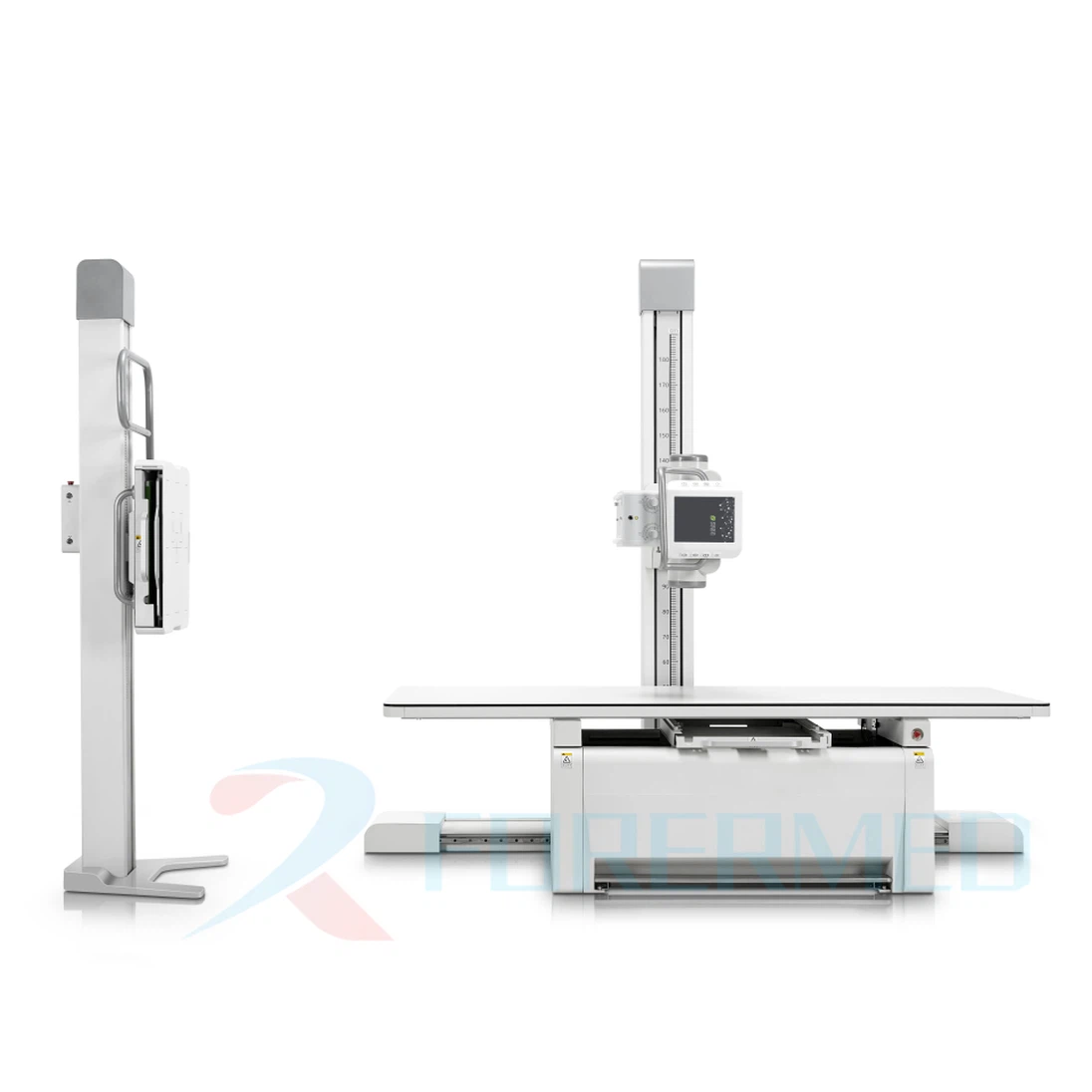

Floor Mounted X Rray Machine
floor mounted x ray machine
dr x ray maxchine
x ray
digital x ray machine
BW-50 (1)
The digital image acquisition system adopts a high-frequency high-voltage generator with a frequency of 400KHz to ensure a stable high-voltage output.
The production of soft X-rays is greatly reduced, which not only guarantees excellent image quality, but also greatly reduces radiation damage to doctors and patients.
The body weight of different patients is completely different.
If the same exposure trajectory is used for exposure, the images taken will inevitably be deformed and distorted.
Our Products
arms and legs
chest
lie low all parts
The high voltage generator control is fully integrated with the image acquisition workstation, and the maximum 630mA photographic tube current achieves sharp picture quality, which is widely applicable to various photographic objects. Its image acquisition system can easily complete the Kv, mAs and up to more than 1000 APR (location program photography) control of different parts of the photography conditions, intuitive inspection site selection, clear shooting position list and parameter Settings, to help doctors quickly and accurately complete the shooting work. The excellent and stable image acquisition system not only guarantees the excellent image quality, but also ensures the efficiency of the doctor's work. With the support of its exquisite technology, there is a supporting remote diagnosis technology as the auxiliary software function of real application and operation.
Tel: +8617737780581
Phone: +8617737780581
Envelope: julianne@yjcompany.com
Address:Zhengzhou Province, China
Whatsapp: +8617737780581
Skype: live:.cid.f4a1b4801c7fee8
Wechat: +8618237132626
Hot Tags: floor mounted x rray machine, China, suppliers, manufacturers, factory, low price
|
High voltage generator |
|
|
Output nominal power |
50KW |
|
Maximum tube current |
630mA |
|
Tube voltage range |
40-150KV |
|
Current time product |
0.1-630mAs |
|
Inverter frequency |
400KHz |
|
X-ray tube assembly |
|
|
Maximum tube voltage |
150KV |
|
Anode heat capacity |
400KHU |
|
Focal size |
0.6/1.2mm |
|
Flat panel detector |
|
|
Effective photographic size |
17" X 17" |
|
Pixel size |
≤135 um |
|
Total pixel count |
9.4 million |
|
Pixel gray scale |
16bit |
|
Imaging time |
≤5 S |
|
With AEC function |
Automatic exposure control (AEC) function |
|
Light Beam |
|
|
Max X-ray area |
43cm×43cm (SID1.0M) |
|
Light field brightness |
≥160Lux |
|
Camera frame system |
|
|
Total height of photo frame column |
2200mm |
|
Longitudinal movement range of bed surface |
930mm |
|
Lateral movement range of bed surface |
260mm |
|
Bed size |
L 2200mm,W 800mm,H 650mm |
|
Bed surface locking mode |
Permanent magnet design, power lock, power release |
|
load-bearing |
≥200kg |
|
One-click alignment |
The column of the bulb tube and the chest X-ray frame have the function of one-key alignment |
|
|
Tube column and chest X-ray frame electric follow-up, tube column |
|
Electrokinetic motion |
Tube column vertical direction, tube column horizontal direction, |
|
Tube assembly column rotation range |
360° |
|
autobit |
One-click automatic bit, SID1 m, SID1.8 m, |
|
Image acquisition workstation |
|
|
CPU main frequency |
≥3.5GHz |
|
Memory capacity |
≥4GB |
|
Hard disk capacity |
≥500GB |
|
Display size |
19 inch LCD display |
|
Display point spacing |
≤0.294mm |
|
Maximum brightness of display |
≥250(cd/m2) |
|
Host console |
The host console is highly integrated with the high voltage generator |
