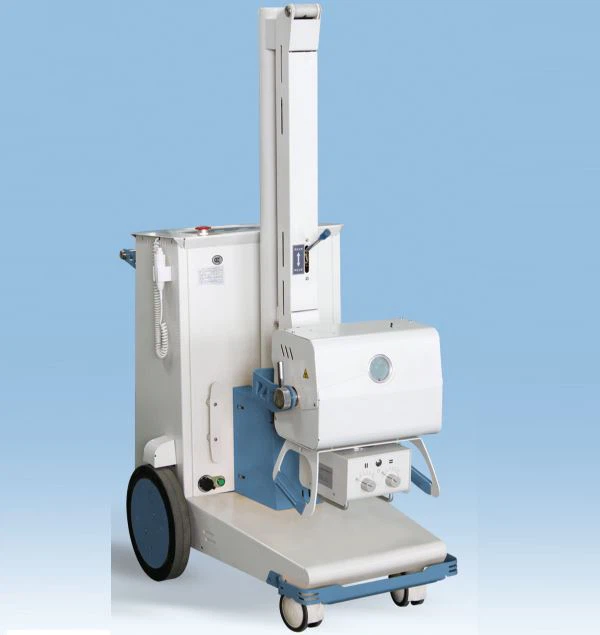

YJ-DG3210 High Frequency Mobile Radiography System
Specifications
Power Output: 3.5KW
Frequency : 40KHz
X-ray Tube : Fixed anode
Focus : 0.6/1.5mm
Tube Voltage : 40-110KV (interval 1KV)
Tube Current : 31-70mA
Power Supply: 220V±10% 50Hz±1Hz inner-resistance≤0.5Ω
Operation Method: Wire/Wireless control
Parameters
X-ray generator:
Power: 3.5kw
Tube voltage: 40-110kV, each 1kV
Frequency: high frequency, 40kHz
Tube currency: 70mA
Exposure time: 0.04-3.2s; radiography mAs 1-250mAs (adjustable)
Wireless exposure remote controller
Features
◇ Lovely appearance, and easy to move and operate; Possess all the features of all the mobile X-ray photography machines.
◇ The piller can be rotated right and left ±90°，which can easy to operate in the wards.
◇ We incorporate the latest compact high-frequency and high-voltage X-ray generator, which ensure superior image quality, while the skin dose is low , to protect the patient better.
◇ Adopt the technology of kV and mAs numeral closed loop control, Real-time control of the microprocessor, which ensure the accuracy and repeatability of the output dose.
◇ The parameter can be adjust by the KV and mAs two-button system. High- brightness、blue screen LCD display. With multiple security protect function such as over-voltage, over-current.
◇ With a high-quality knockdown X-ray generator to reduce irradiation, which is much safer to environment and operator.
