Products Description

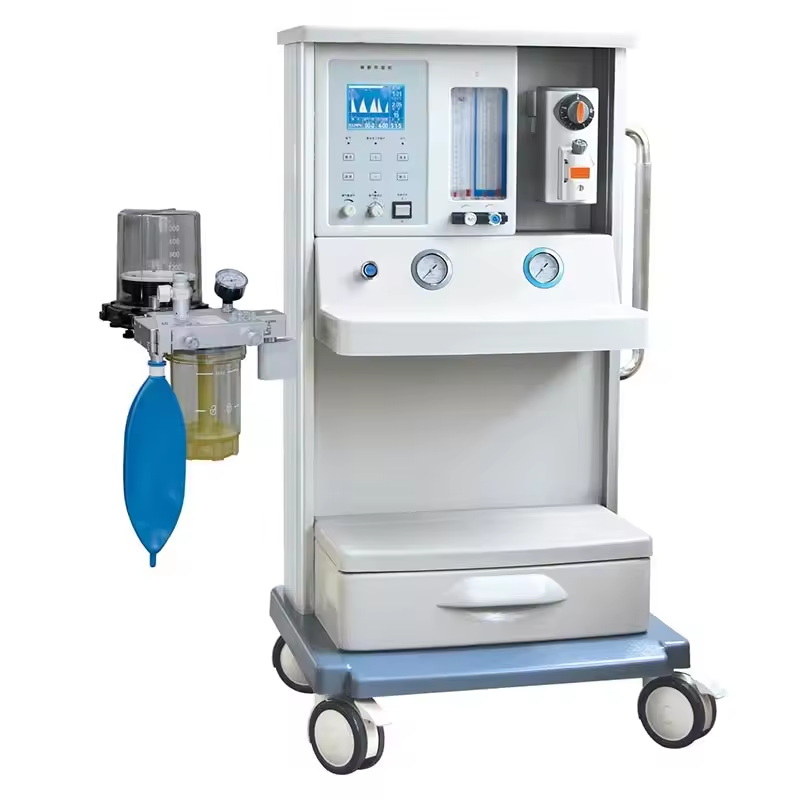

YJ-PA01 with 1 vaporizer Multifunctional Anesthesia machine
Operating Modes: Pneumatically driven & electronically controlled, closed, semi-closed and semi-open
Anesthesia Ventilator: Built-in ventilator, 5.4" LCD display screen
Standard integrated metallic modular respiratory circuit; completely solves the problem of gas sealing under high temperature disinfection, easy to clean and disinfect
Equipped with electronic pressure differential flow sensor, imported respiratory control valve
Alarm parameters:
upper/lower limit of airway pressure,tital volume exceed limitation,no tidal volume output,apnea,AC power malfunction,Battery low power.
product key technologies
Vaporizer: Imported tank components assembled locally; Enflurane, Isoflurane and Sevoflurane (Halothane optional). Also possesses self-compensating functionality
High precision four tube flowmeter：fitted with interlocking oxygen-nitrous oxide supply, guarantees oxygen output is never lower than 21%
Nonhazardous environmentally friendly frame：with automated self-checking function during startup and an automatic self-calibrating sensor
Power Failure Support Functions: Automatically converts to backup power mode during AC power outages
Alarms: Audible and/or visual alarms for tidal volume, airway pressure, asphyxia, power failure, oxygen failure and other alarms, also features a alarm query function,Equipped with advanced international rotating Na-lime tank, uses imported PPSU material and temperature resistant to 134°C
Gas requirement:
- Medical oxygen and nitrous oxide with a pressure ranging from O2 & NO2: 0.32~0.6 MPa.4-tubes Flowmeters, O 2 & N 2 O; 0.1L/Min ~ 10L / Min;
- Oxygen Flush: 25~75 L / Min
- Respiration Mode: A/C,IPPV,SIPPV,IMV,SIMV,MANUAL
- Tidal Volume: 0~1500ml
- I/E Ratio: 4:1 ~ 1:10
- One vaporizer: Enflurane/ Isoflurane/Sevoflurane/Halothane
- Vaporizer Setting Range: 0.5%~5%
- Respiration Frequency : 1~99 bpm;
- Ptr: -1.0kPa ~ 1.0 kPa
- CO 2 absorber capacity : 1 kg

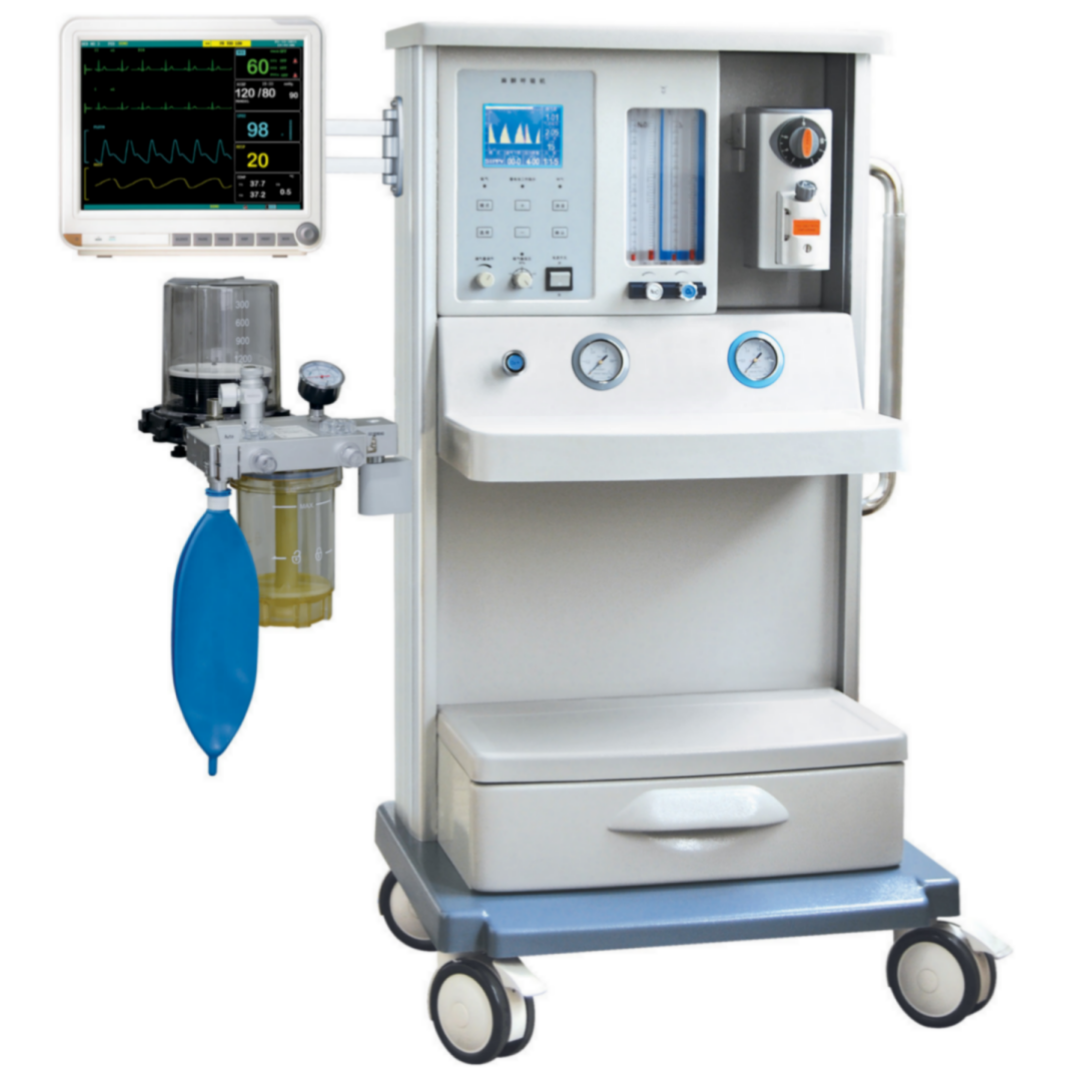

- Optional: Patient monitor
Detailed Pictures
RAQ
Q: 1. What kind of medical equipment does your company specialize in?
Q: 2. Which countries or regions do you export to?
Q: 3. What is your shipping method and delivery time?
Q: 4. What payment methods do you accept?
Q: 5. May we have a tour of your factory?
Q: 6. Do you provide after-sales service?
Q: 7. Can you provide customized solutions for medical devices?
Q: 8. What is your price range for medical equipment?
Q: 9. How can we guarantee the authenticity of your products?
Q: 10. What is your target market for medical devices?
Q: 1. What kind of medical equipment does your company specialize in?
Q: 2. Which countries or regions do you export to?
Q: 3. What is your shipping method and delivery time?
Q: 4. What payment methods do you accept?
Q: 5. May we have a tour of your factory?
Q: 6. Do you provide after-sales service?
Q: 7. Can you provide customized solutions for medical devices?
Q: 8. What is your price range for medical equipment?
Q: 9. How can we guarantee the authenticity of your products?
Q: 10. What is your target market for medical devices?
Contact Information
Tel: +8618237112626
Phone: +8618237112626
Email: forermed@yjcompany.com
Address: Wanda Center, Jinshui District, Zhengzhou, Henan, China
Whatsapp: +8618237112626
Skype: live:.cid.f4a1b4801c7fee8
Wechat: +8618237112626
Hot Tags: Equipment Of Anesthesia Anesthesia Machine Hospital, China, suppliers, manufacturers, factory, low price
| Model | YJ-PA01 |
| Display | 5.4" LCD display screen |
| Flowmeter Range | O2: 0.1-10L/min |
| N2O: 0.1-10L/min | |
| Ventilation Mode | A/C,IPPV,SIPPV,MANUAL |
| Back-up Power Supply | At least 4 hours |
| Tidal Volume | Adjustable range: 50-1500ml |
| Display range: 0-1500ml | |
| Respiratory Rate | 1-99bpm |
| Inspiratory/Expiratory (I:E) Ratio | 4:1 ~ 1:10 |
| Inspiratory Pressure Trigger Range | -10-10cmH2O (electronically controlled) |
| Vaporizer Concentration Ranges | 0-5% |
