Description
Technical Parameters

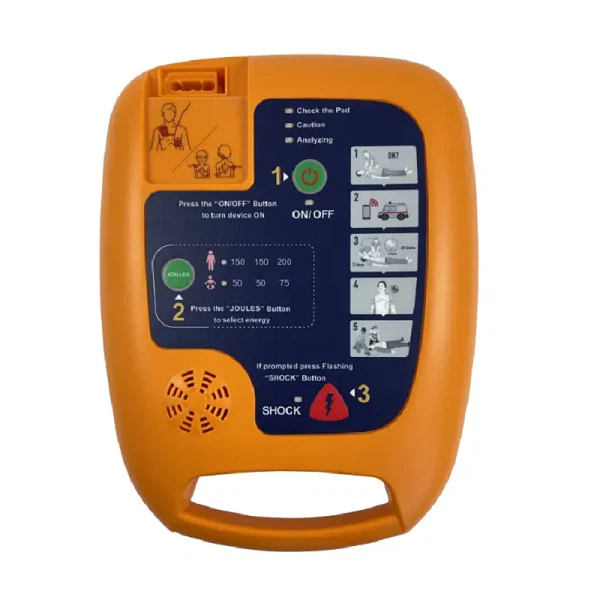

High quality Medical Cardiac First Aid Portable AED automated external defibrillator calibrator portable defibrillator
Advantages:
* 2 Languages to choose
* 5 Levels of sound volume
* Adult / Child Mode Button
* Infra-Red for data transmission
* Daily, Weekly and Monthly Self-test
* Using the AED while in the bag
1.Data Communications
AED storage software supports AED to receive data,which is sent through infrared, AED storage software supports reading and setting of ECG waves, Setting of AED language,Reading,analysis,deletion of storage data can be achieved by AED storage software as well.
2. Case Management
AED storage software makes selected data file as a case record and stores cases by ACCESS database.
Case Management supports data importing and data deletion, which can respond to ECG waveform of data file by selecting cases.
Case Management supports data importing and data deletion, which can respond to ECG waveform of data file by selecting cases.
3.Memory Playback
he interface display status information recorded in the running of the AED, including type, event time,
description, waves. Event type includes on event, self-test event, analyzing event, charging event, discharging event, CPR starting event, CPR stopping event. The event time displayed is when the event happened. Description shows the parameter information. "OHM" represents the detected impedance of the patient. Pxower parameter represents the voltage of the finishedcharging; ”need to shock" represents that shock advised after analyzing "no need to shock" represents that no shock advised after analyzing.
description, waves. Event type includes on event, self-test event, analyzing event, charging event, discharging event, CPR starting event, CPR stopping event. The event time displayed is when the event happened. Description shows the parameter information. "OHM" represents the detected impedance of the patient. Pxower parameter represents the voltage of the finishedcharging; ”need to shock" represents that shock advised after analyzing "no need to shock" represents that no shock advised after analyzing.
4. ECG
Waveform gain can be set as 5mm/mv, 10mm/mv, 20mm/mv; Waveform speed can be set as 12.5mm/s,
25mm/s, 50mm/s:
25mm/s, 50mm/s:
5. Print Print
page can preview selected page in the playback interface, which can be used for printing basis
information.
information.
|
Technical Specifications
|
|
|
Self-test
|
Daily, Weekly, Monthly
|
|
Mode
|
Adult, Child
|
|
Waveform
|
Biphasic truncated exponential
|
|
Energy
|
200-Joules max.
|
|
Energy Sequence
|
Child Mode: 50/ 50/ 7 5 Joules Adult Mode: 150/150/200 Joules
|
|
Charge time (New, at 25°C)
|
Less than 6 sec. to 150Less than 8 sec. to 200
|
|
Voice Prompt
|
Extensive voice prompt
|
|
Visual Indicators
|
LED prompts
|
|
Control
|
Two buttons: ON/OFF, Shock
|
|
ECG storage
|
1, 500 events.
|
|
Data transmission
|
Infrared
|
|
Power
|
Battery non- rechargeable
|
|
Type
|
12V, 2800mAh Li-MnO2 Cell
|
|
Dimensions
|
Depth (D):80mm / Width (w): 240mm / Length(L): 300mm
|
|
Weight (with battery)
|
1.9Kg (4.2 Pounds)
|
