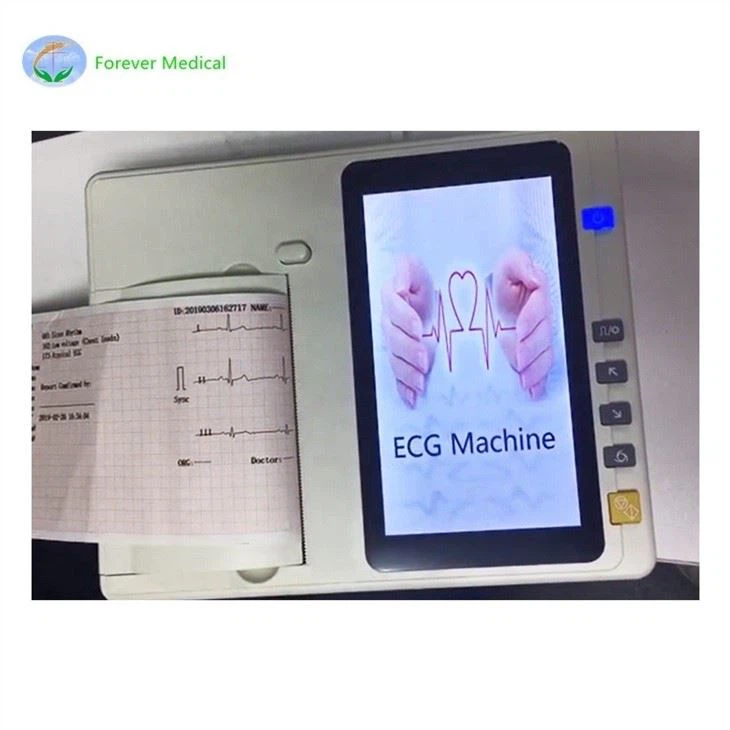

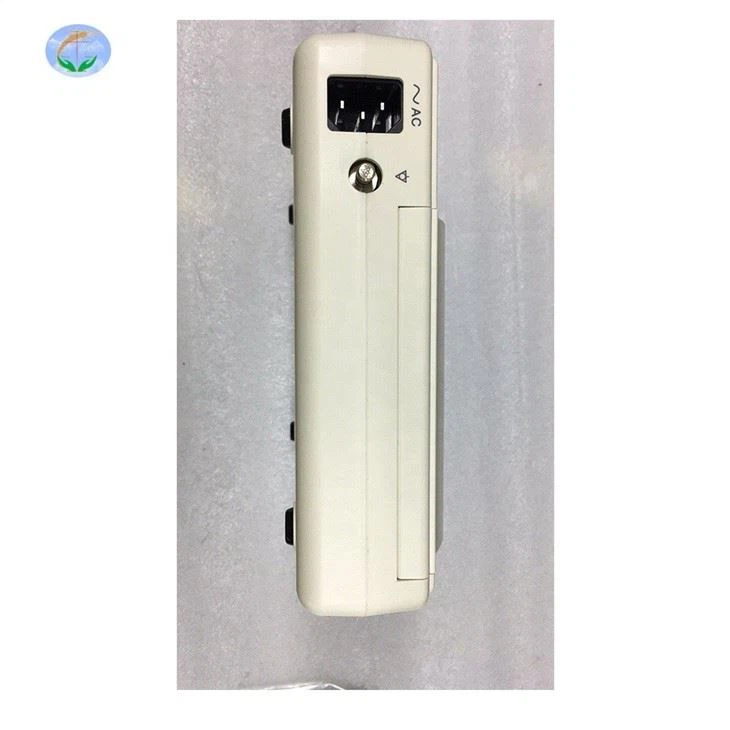

Electrocardiograph YJ-ECG601
Features
7 inch high resolution color touch screen
6 - lead simultaneous acquisition and display
ECG Automatic measurement and interpretation function Complete digital filters, resisting baseline drift,AC and EMG interference
Compact and lightweight design
Support USB flash disk and micro SD card to extend memory
Software upgrade via USB/SD card
Built-in rechargeable Li-ion battery
Standard Configuration:
Main machine: 1 PC
Patient cable: 1 PC
Limb electrode: 1set(4pcs)
Chest electrode: 1set( 6pcs)
Power cable: 1 PC
80mm*20M recording paper: 1 PC Paper axis: 1 PC
Power cord: 1 PC
Packing:
Single package size:32*25*17cm
Single gross weight:2.8 KG
8 unit per carton, package size:
54*33*75cm, total gross weight 22 KG
Technique Specification | |
Items | Specification |
Lead | Standard 6 leads |
Acquisition Mode | Simultaneous 6 leads acquisition |
Measurement Range | ±5mVpp |
Input circuit | Floating: Protection circuit against Defibrillator effect |
Input Impedance | 250M0 |
Input circuit current | <0.05UA |
Record mode | Automatic:3CH×4+1R,3CH×4,3CHx2+2CHx3,3CHx2+2CHx3+1R,6CHX2; |
Manual: | |
Rhythm: | |
Filter | EMG Filter:25 Hz / 30 Hz/40Hz/75 Hz/ 100 Hz/150Hz |
0.05 Hz/ 0.15 Hz | |
AC Filter: | |
CMRR | >100dB |
Patient leak current | <10μA(220V-240V) |
Freguency Response | 0.05Hz~150Hz (-3dB) |
Sensitivity | 2.5mm/mV,5 mm/mV,10 mm/mV,20 mm/mV (error:±5%) |
Anti-baseline Drift | Automatic |
Time constant | ≥3.2s |
Noise level | <15μVp-p |
Paper speed | 12.5 mm/s,25 mm/s,50 mm/s |
Recording mode | Thermal printing system |
Paper specification | Roll 110mmx20M |
Safety Standard | IEC I/CF |
Sample Rate | Normal:1000sps/channel |
Power Supply | AC:100~240V,50/60Hz30VA~100VA |
DC:14.8V/2200mAh,built-in lithium battery | |
