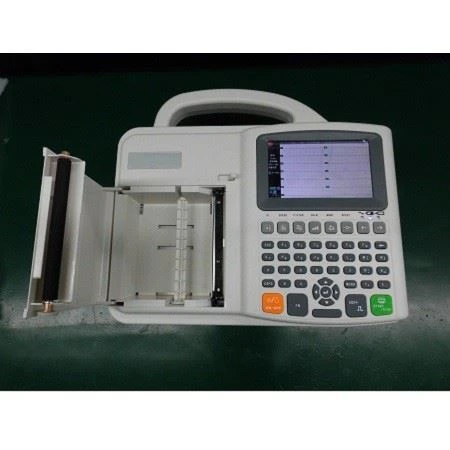

Portable ecg machine electrocardiograph 3 channel
Features
●3-channel ECG machine with interpretation
●5.0" color TFT LCD display
●Simultaneous 12-lead acquisition and 1, 1+1, 3-channel (manual/automatic) recording with high-resolution thermal printer
● Manual/automatic working mode
●Use of digital isolation technology and digital signal processing
● Baseline stability check
● Full alphanumeric silicon keyboard
Technical Specifications
Lead: Standard 12 leads
Acquisition: Simultaneous 12leads A/D
Converter: 14bit
Sampling Rate: 1000Hz
Working Mode: Manual/Auto
Interference Filter: AC Filter and EMG Filter
CMMR: ≥100dB (with AC filter)
Input Circuit: Floating, protection circuit against defibrillator effect
Input Circuit Current: ≤0.1μA
Input Impedance: ≥50MΩ
Patient Current Leakage: ＜10μA
Calibrating Voltage: 1mV±2％
Skin Voltage Tolerance: ≥±500mV
Time Constant: ≥3.2s
Frequency Response: 0.05 Hz～250Hz
Noise Level: ＜15μVp-p
Sensitivity Threshold: ≤20μV
Signal Channel Interference: ≤0.5mm
Printer: Thermal printer
Paper: 80mmx20m, roll
Page Speed: 6.25, 12.5, 25, 50mm/s (±3％)
Sensitivity Printer: 10mm/mV (AUTO), 2.5, 5, 10, 20mm/mV
CPU: 32 bits
Safe Class: GB9706.1, Class I, Type CF
Power Supply: AC 220V (±10%), 50Hz±1Hz, Power ≤60VA AC 85～265V, 50/60Hz DC14.8V (2200mAh), rechargeable Li-ion battery Dimension: 310mm×270mm×73mm
Weight: 1.45kg (with battery)
