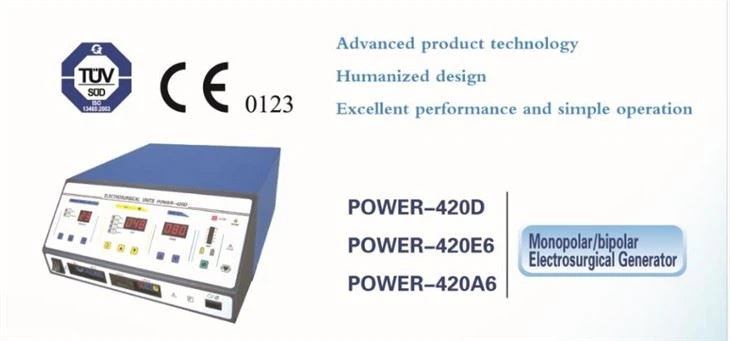

Monopolar Electrosurgical Generator
Advanced product technology
Humanized design
Excellent performance and simple operation
PURE CUT
Low-power setting suits for surgeries need accurate cutting and would not cause ther mal damage, such as plastic,scab cutting surgeries. Higher power setting (80W~180W) suits for urology surgery,and vaporize electrotomy of obstetrics and gynecology surg eries. BLEND Coagulation effect accompanies with cutting,and applies to surgical operations such a s general,thoracic,abdominal,hysteroscope and urology surgeries. Having adopted the automatic power adjustment technology,the above two modes hav e advantages of high efficiency and low power consumption. Low voltage output specially designed for endoscopic surgeries,greatly reduce risks in herent to such operations. Bipolar macro mode (bipolar cut): specially designed for endoscopic surgery, such as l aparoscopy and hysteroscopy surgery. Adopt the contact quality monitoring system which is proven safe by globe clinical ap plication.
Main technical parameter:
1. Type of the equipment: Model CF, Class I.Anti-defibrillation common equipment.
2.Working frequency: 512 KHz; Working mode : interval loading and continuous operating, temporary loading rate: 10S/30S.
3. Main Output Power:
| MODEL | PURE CUT (500Q) |
BLEND 1 (500Q) |
BLEND 2 (500Q) |
BLEND 3 (500Q) |
MONOPOL ARCOAG (500Q) |
BIPOL ARCO AG |
MACROBI POLAR (500Q) |
| POWER-420D | 350W | 250W | 200W | 120W | 120W | 50W | 80W |
| POWER-420E6 | 300W | 250W | 200W | 120W | 120W | 50W | 80W |
| POWER-420A6 | 350W | 250W | 200W | 120W | 120W | 50W | 1 |
4. High frequency drain current: 150mA
5. Power supply: single-phase AC220V±22V, 50Hz±1Hz, max.current 3.5A
6. Boundary dimension:456×382×186; packed dimension: 605×530×255
7. Host machine net weight:11.5kg; Machine gross weight: 19.5kg
8.Operation conditions: ambient temperature 5℃~40℃, humidity: 80% RH, Atmospheri cpressure 860 hpa~1060hpa.
9.Transportation and storage conditions:
ambient temperature -40℃~55℃,
humidity ＜95% RH,
Atmospheric pressure 500hpa~1060hpa.
