Products Description

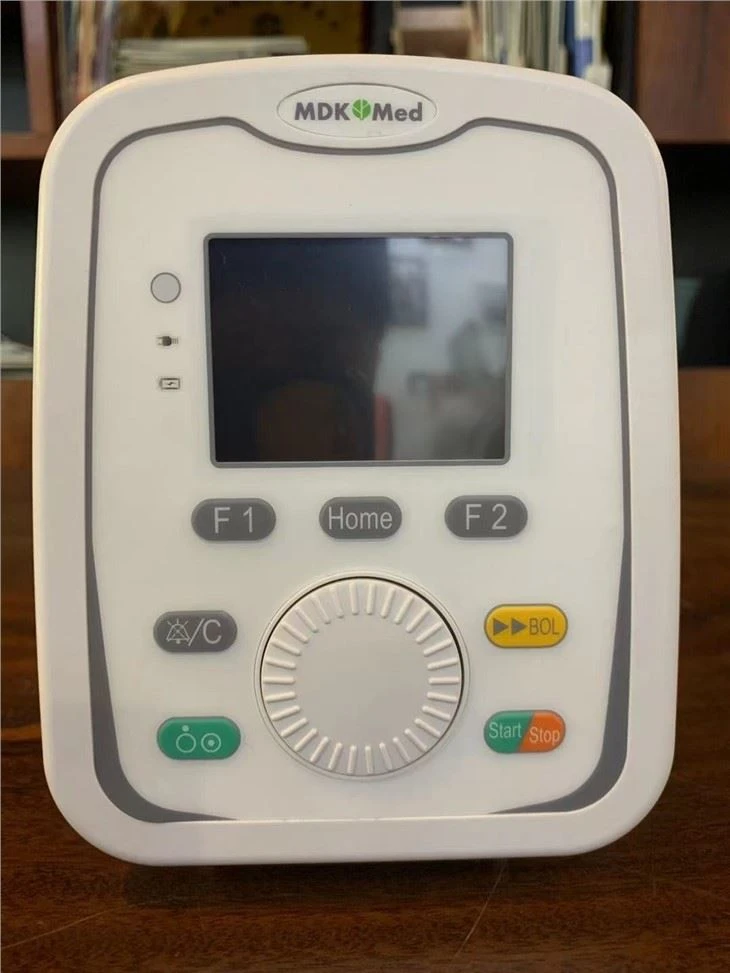

YJ-MI22 Medical Infusion Pump
Medical Infusion Pump Main performance: Adjustable AIL sensitivity Upstream occlusion alarm 2.8 inch touch Color TFT Touch Display Operate with gloves Redundant keys for usability and safety
Main performance:
- Adjustable AIL sensitivity
- Upstream occlusion alarm
- 2.8 inch touch
- Color TFT Touch Display
- Operate with gloves
- Redundant keys for usability and safety
RAQ
Q: 1. What kind of medical equipment does your company specialize in?
Q: 2. Which countries or regions do you export to?
Q: 3. What is your shipping method and delivery time?
Q: 4. What payment methods do you accept?
Q: 5. May we have a tour of your factory?
Q: 6. Do you provide after-sales service?
Q: 7. Can you provide customized solutions for medical devices?
Q: 8. What is your price range for medical equipment?
Q: 9. How can we guarantee the authenticity of your products?
Q: 10. What is your target market for medical devices?
Q: 1. What kind of medical equipment does your company specialize in?
Q: 2. Which countries or regions do you export to?
Q: 3. What is your shipping method and delivery time?
Q: 4. What payment methods do you accept?
Q: 5. May we have a tour of your factory?
Q: 6. Do you provide after-sales service?
Q: 7. Can you provide customized solutions for medical devices?
Q: 8. What is your price range for medical equipment?
Q: 9. How can we guarantee the authenticity of your products?
Q: 10. What is your target market for medical devices?
Contact Information
Tel: +8618237112626
Phone: +8618237112626
Email: forermed@yjcompany.com
Address: Wanda Center, Jinshui District, Zhengzhou, Henan, China
Whatsapp: +8618237112626
Skype: live:.cid.f4a1b4801c7fee8
Wechat: +8618237112626
Hot Tags: medical infusion pump, China, suppliers, manufacturers, factory, low price
| Technical Specification: | |
| Range of flow rate setting Flow rate acouracy (Essential Performance) |
0011800m/ 15% Noke: One pump and ten IV sets far the accurasy test. |
| VTBI ([Volume to be Infused) range | 0.01-9999.99ml step by 0.01ml |
| Infusion volume accuracy (E8senfial Performance) |
15% Note: One pump and ten IV sets for the accuracy test. |
| Purge rate | 1ml/h-1800ml/h adjustable:±20%; |
| Oecdusion alarm(pressure (Essential Performance) |
100kP8120kP8_50kP8420kPa High: 100kPa±50kPa Low:50kPa±20kPa |
| Maximum infusion pressure | 16CkPa |
Time to activate the occlusion alam, max bclus (Essential Performance) |
Minimum flow rate: ocdusion alarm is activated when pressure is within 50kPa+20kPa tor 20 minutes. And when prossure is wilthin 120kPa+20kPa for 45 minules. Intermediale flow rate: ocdlusion alarm is activated when pressure is within 40kPa±20kPa for 1 minules and 30 seconds, or when pressure is within 100kPa±30kPa for 2 minutes and 30 seconds, and the bolus produced is less or equal than 0.7ml The minimum selectable rate is the minimum flow rate. It equals to 1 mL/h The time to activate the ooclusian alarm is the same as minimum flow rate The minimum selectable rate is the minimum flow rate. It eqjuals to 1 mLhThe time to activale the ocdusion alarm is the same as minimum flow rale. (Jerry infusion set is used to create ocdusion at the end of infusian line during verificaticn test. Measure environment is 20°℃, and patient line is 1 meter) |
| KVO Rale | Flow rate 2 10muh KVO rate=3mi'h; 1mlh sFlow rale <10ml/h. KVO rate = 1mih Flow rale < 1mi/h, KVO rate -fow rate |
| Recover time after the recoverable alarm sound is cleared. | 1min50s~2min |
| Time for pause over time alarm. | 1min50s~2min |
| High priority alarm (Essential Performance) |
Door open alarm, occlusion alarm, VTBI completion alarm, air in line alarm, out of battery alarm, battery/mains power double disconnect alarm, malfunction alarm. |
| Classification | Class II Type CF, capacity infusion pump with internal power source for continuous operation, IPX2 |
| Environmental Requirement | Storage Temperature-30℃~+55℃; |
| Operation Temperature:5℃~+40℃; | |
| Storage relative humidity:$75%; | |
| Operating relative humidity:20%~90%; | |
| Barometric pressure range: 80.0kPa~106.0kPa. | |
| Software Version | V1.0.0 |
| Lifetime |
5 |
