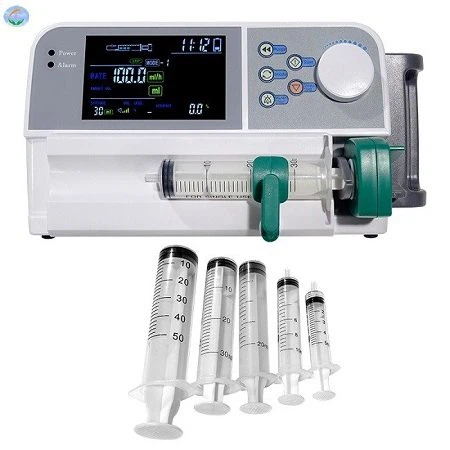

Portable small injection pump
Features
1. 4.3'' colour segment LCD with backlit display for use in a variety of lighting conditions
2. Simultaneous display. Time, battery indication, injection status, mode, speed, volume and time of injection, syringe size, alarm sound, zone, accuracy, weight, drug dose and liquid volume
3. Speed, time, volume and dose can be adjusted by remote control for easier operation and to save the time of doctors and nurses. Advanced technology, based on Linux system, safer and more stable
5. Multiple injection modes. Volume/time/weight mode
6. Visible and audible alarms cover all abnormalities
Technical Specification
Injection Rate Range
50ml syringe : 0.1～999.9ml/h (step :0.1ml/h)
1000～1800ml/h (step : 1ml/h)
30ml syringe :0.1～900ml/h (step :0.1ml/h)
20ml syringe :0.1～600ml/h (step :0.1ml/h)
10ml syringe :0.1～300ml/h (step :0.1ml/h)
5ml syringe :0.1～150ml/h (step :0.1ml/h)
Purge Rate
50ml syringe: 1800ml/h (Bolus rate: 1200ml/h)
30ml syringe:900ml/h (Bolus rate: 600ml/h)
20ml syringe:600ml/h (Bolus rate: 400ml/h)
10ml syringe:300ml/h (Bolus rate: 200ml/h)
5 ml syringe:150ml/h (Bolus rate: 100ml/h)
Mechanical Precision
Within±2%
Preset Volume Range 0.1～1999.9ml
Occlusion Alarm Threshold
High: 800mmHg±200mmHg (106.7kPa± 26.7kPa)
Medium: 500mmHg ± 100mmHg (66.7kPa± 13.3kPa)
Low: 300mmHg ± 100mmHg (40.7kPa± 13.3kPa)
KVO Rate 0.1～5ml/h (step: 0.1 ml/h)
Fuse F1AL/250V 2 pcs (installed inside pump)
Power Supply 100～220V, 50Hz, Built in Rechargeable Li-ion battery, 11.1V, Capacity ≥2000mAh; by charging 10 hours, it can work at 5ml/h (GB 9706.27-2005 medium rate) for 4 hours Environment Requirement: Operation:
a) Ambient temperature: +5℃~+40℃
b) Relative humidity: 20%~ 90%
c) Atmosphere Pressure: 86.0~106.0 (kPa)
Transportation & Storage:
a) Ambient temperature: -30℃~+55℃
b) Relative humidity: ≤95%
c) Atmosphere Pressure: 50.1~106.0 (kPa)
Alarm Near, Injection finished, Preset dose injection finished, Occlusion, Syringe off, Syringe dislocated, Low battery, AC power off
Safe Class Class I Type BF
Size 282mm(L)×210mm(W)×148mm(H)
Weight 2.2Kg
