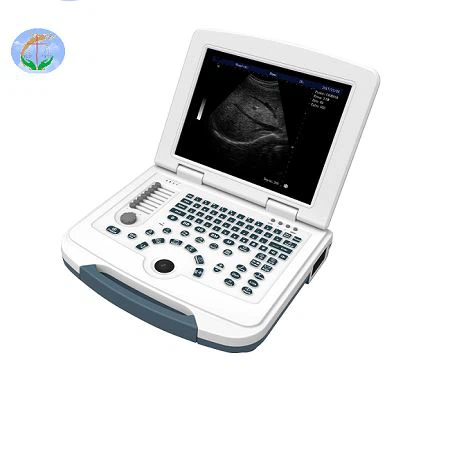

Introduction of Full-Digital Laptop Ultrasound Scanner YJ-U580
Full-Digital Laptop Ultrasound Scanner YJ-U580 is light and portable, with much clearer image and convenient to operate. YJ-U500 has an extra-long battery life with over 8 hours of standby time and 4 hours of working time - useful for consultation in various environment of cities, towns, outdoor. A variety of charging to ensure the examination consultation under different environments. That is applicated to abdomen,obstetrics and gynecology, pediatrics, urology, small organs, musculoskeletal and so on.
* 12.1 inch HD LCD display
* Rechargeable battery
* THI and Histogram function
* Support OB Report
*Support: Chinese/English/Spanish/French
/Portuguese/Russian/
Basic Parameters:
Probe Depth: 16 levels
Probe Frequency: 5 levels
Main gain: 0-100%
8 TGC: adjustable
Focus: 4
Image storage: 4920 images
Pseudo color: 0-7
Scanning area(angle): 3 levels
Edge enhancement: 0-3
Linear correlation: 0-5
Gamma correction: 0-7
Frame correlation: 0-3
Dynamic range: 0-135
Cine loop: 512 frames
Body mark: 97 kinds
U Disk support: FAT32 format
Image reversal: up/down, left/right, black/white
Measurement: General measurement, GYN & OB measurement package, Andrology measurement , Cardiac measurement
OB-1: GS,BPD,CRL,FL,HL,TAD,LV,OFD,AC,HC,AFI
OB-2: FTA,TTD,APTD,THD,TCD,CI,EFW,Input LMP,Growth Curve
Various Probes (80 elements):
Convex probe (2.0 - 5MHz)
Linear probe (5.5 - 9.0MHz)
Trans-vaginal probe (5.0 - 8.5MHz)
Micro-convex probe (4.0 - 7.0MHz)
Flexible and convenient operating system
A type of high array, high definition, multi-function full-digital real 80 elements laptop ultrasonic diagnostic apparatus.
Light and portable, more clearer,delicate and smooth image, convenient to operate, and powerful electrical power ability supports the machine for consultation in various environment of cities, towns, outdoor.
A variety of charging to ensure the examination consultation under different environments.
Supernormal battery life 4-6 hours
Probe frequency:
Convex probe Frequency: 2.0MHz,2.5MHz,3.5MHz,4.0MHz,5MHz
Depth: 16 level 【126,142,158,173,189,197,205,213,221,229,237,245,253,261,269,307mm】
Linear probe Frequency: 5.5MHz,6.5MHz,7.0MHz,7.5MHz,9.0MHz
Depth: 16 level 【35,42,49,62,69,76,83,90,97,104mm】
Trans-vaginal probe Frequency: 5.0MHz,5.5MHz,6.5MHz,7.5MHz,8.5MHz
Depth: 16 level 【62,69,76,83,90,97,104,111,125,139mm】
Micro-convex probe Frequency: 4.0MHz,4.5MHz,5.0MHz,6.5MHz,7.0MHz
Depth: 16 level 【62,69,83,97,111,125,139,152,166,180mm】
FAQ：
Q:What is time of delivery?
A:Since our products are produced according to each specific order, the delivery period will be 15days after confirmation of order. If it is small or sample order, please do check with us about whether we have ready goods in stock to make delivery as soon as possible.
Q:What about quality assurance?
A:We offer one year warranty period beginning from the time of shipment for medical equipment, Per minor problems, we can provide free spare parts for replacements, Per serious problems, we can make replacement of free charge. But if the machine is damaged due to rough handling during the transportation, we are free of any responsibility, but we will still provide help to the buyer issue claims against the shipping company or insurance company, thus all the spare parts or expenses should be borne by buyer
