Products Description

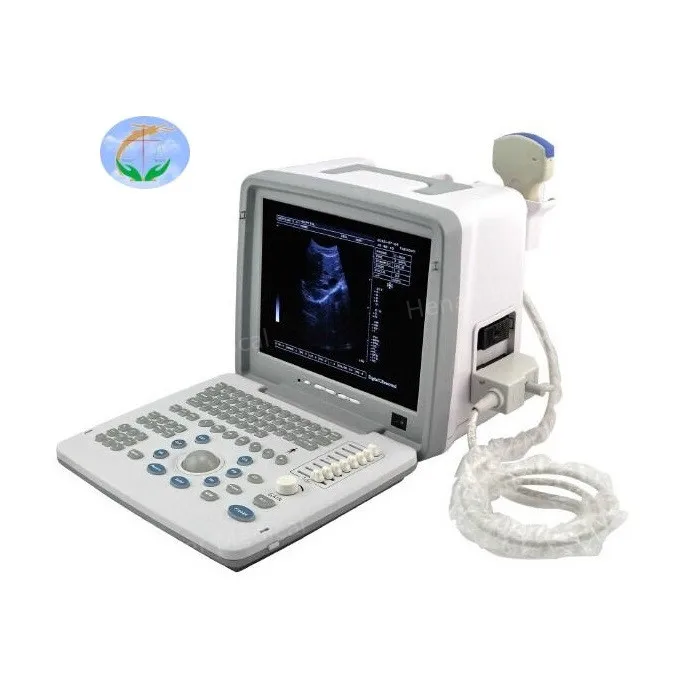

YJ-X300 Full Digital UItrasound Diagnostic System
12" color LED screen, friendly interface and fashion design.
High-capacity video replay and permanent image storage.
Humanization keyboard, intelligent fluorescent trackball.
8 segment TGC control, overall GAIN control.
The high-speed USB port supports a large-capacity USB Disk.
2 probe sockets, probe automatic Identification.
SVGA, PAL video output.
External video image recorder, image workstation optional.
Auto-generated report page.
product key technologies
1. Mass memory , cine loop and permanent storage.
2. Radium Caved buttons and Silicon backlit buttons to be chosen;
3. Intelligent fluorescence trackball.
4. 8-segment TGC control. Overall Gain control
5. 1 USB ports only save image;
6. 2 probe connectors. Probe automatic identfication; be modified in the menue.
7. 1 SVGA video outputs and 1 PAL video outputs offer connection to video image recorder and image workstation. etc.
8. Report page is generated automatically.
9. According to the user's pattern style preference, the parameter will be set up automatically and saved , Boot default this parameter.

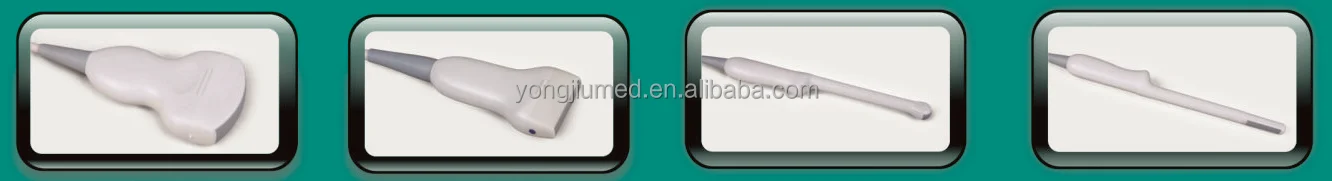

Optional Probe
Convex; Linear; Trans-vigianl; Trans-rectal; Micro-convex
Detailed Pictures
RAQ
Q: 1. What kind of medical equipment does your company specialize in?
Q: 2. Which countries or regions do you export to?
Q: 3. What is your shipping method and delivery time?
Q: 4. What payment methods do you accept?
Q: 5. May we have a tour of your factory?
Q: 6. Do you provide after-sales service?
Q: 7. Can you provide customized solutions for medical devices?
Q: 8. What is your price range for medical equipment?
Q: 9. How can we guarantee the authenticity of your products?
Q: 10. What is your target market for medical devices?
Q: 1. What kind of medical equipment does your company specialize in?
Q: 2. Which countries or regions do you export to?
Q: 3. What is your shipping method and delivery time?
Q: 4. What payment methods do you accept?
Q: 5. May we have a tour of your factory?
Q: 6. Do you provide after-sales service?
Q: 7. Can you provide customized solutions for medical devices?
Q: 8. What is your price range for medical equipment?
Q: 9. How can we guarantee the authenticity of your products?
Q: 10. What is your target market for medical devices?
Contact Information
Tel: +8618237112626
Phone: +8618237112626
Email: forermed@yjcompany.com
Address: Wanda Center, Jinshui District, Zhengzhou, Henan, China
Whatsapp: +8618237112626
Skype: live:.cid.f4a1b4801c7fee8
Wechat: +8618237112626
Hot Tags: Full Digital UItrasound Diagnostic System, China, suppliers, manufacturers, factory, low price
|
YJ-X300 Full Digital LED Portable Ultrasound
|
|
|
Main Feature |
Portable
|
|
12.1'' LED
|
|
|
Backlight Key
|
|
|
Main Parameter
|
Display modes: B, B/B, 4B, B+M, M.
|
|
Gray scale: 256 levels.
|
|
|
Dynamic range: 0~120dB adjustable.
|
|
|
External LED display have 16 kinds of pseudo color.
|
|
|
Permanent storage: 128 images .
|
|
|
Capacity cine loop: real time display 256 consecutive images which are memorized successively.
|
|
|
Gain control: 8 segments TGC and overall gain can be adjusted respectively.
|
|
|
Frequency conversion: 2.5MHz/3.0MHz/3.5MHz/4.0MHz/5.0MHz five periods of frequency conversion; frequency range applies 5.5
MHz/6.0MHz/6.5MHz/7.0MHz/7.5MHz can match high frequency probe. |
|
|
According to the user's pattern style preference, the parameter will be set up automatically and saved ,Boot default this
parameter. This default of parameter can aslo be modified in the menue. |
|
|
E-zoom: magnify 2 times of real time image.
|
|
|
Focus position: dynamic electron focusing.
|
|
|
γ correction, frame correlation, point correlation, line correlation, digital filtering, digital edge enhancement and pseudo color
processing, etc. |
|
|
Output Interface
|
1. USB video output
2. SVGA video output 3. PAL video output |
|
Optional Probe
|
Convex; Linear; Trans-vigianl; Trans-rectal; Micro-convex
|
