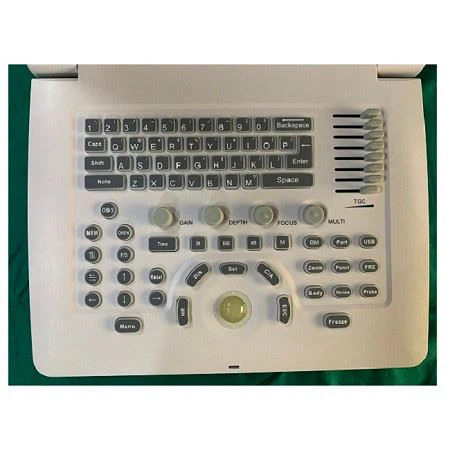

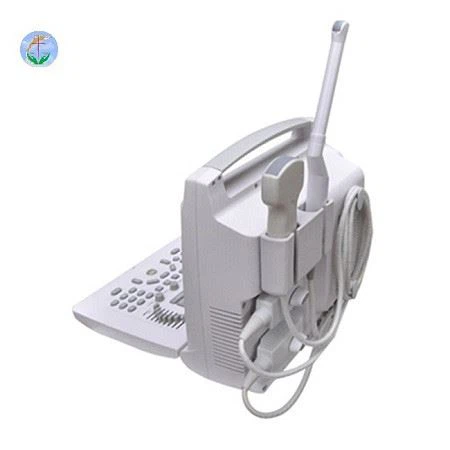

YJ-U318 Full Digital Portable Ultrasound Scanner
Features:
For real-time picture uploading to PC;
2- probe connectors;
Monitor: imported 12 " LCD;
Probe elements : 96;
Power Supply: AV220V±22V, 50MHz±1MHz.
Specifications:
Display depth (mm): 240 (max),16 levels adjustable.
Monitor size:12 inch.
Display mode: B,B+B,B+M,M,4B.
Image gray scale:256 level.
Cine loop: 809 frame (Max).
Image storage: 32 frames.
Scan angle: Adjustable.
Scan depth: 40mm-240mm.
Acoustic power: 2 steps.
Dynamic range: 100dB-130dB.
Image flip: Up/down, left/right, black/white.
Focus position: Adjustable.
Focal space: 5 level.
Measurement: Distance, circumference, area, volume, heart rate, GA, FW, EDD.
Notation: Date, time, name. sex, age, doctor, hospital name.
Full screen words edit.
Output report: 2 type.
Posture mark: ≥40.
Video output: PAL-D, VGA.
Standard Configuration:
·Scanner Body: 1pc
·3.5Mhz Convex Probe: 1pc
·Charger with a Set of wires: 1set
·Bottle of USG gel: 1pc
·User Manual: 1pc
Optional:
·5.0MHz Micro-convex Probe
·6.5MHz Trans-vaginal Probe
·7.5MHz Linear Probe
·Video Printer
·Trolley
