YJ-V20 Medical Ultrasound Scanner with Rectal Probe
Features:
5" TFT-LCD, wide visual, high brightness, high contrast, image clear and exquisite.
Hand-held design, smart and light, easy to carry, convenient for detection.
OB measurement: EDD and GA for Bovine, equine, swine, alpaca, ovine, goat, canine, feline, rabbit.
65 frames permanent storage, 400 frames cine loop.
Output: USB2.0, video (PAL-D, NTSC), connecting to video recorder and workstation.
Easy to print out all kinds of detection images and reports.
Optional mouse to operate easier.
Adopted AC and DC to supply power, lithium battery capacity 2600mA which machine work more than 180 minutes.
Applications:
◆ Ovine, Bovine, Equine, Swine, Alpaca, Feline, Canine, Rabbit, Fish, Snake and etc.
Features:
◆ 5.7" TFT-LCD, wide visual, high brightness, high contrast, image clear and exquisite.
◆ Hand-held design, smart and light, easy to carry, convenient for detection.
◆ Adopted AC and DC to supply power, lithium battery can be support machine to work more than 5 hours.
Specifications:
◆ Detect depth(mm): ≥140
◆ Blind zone(mm): ≤3
◆ Monitor size: 5.7 inch TFT-LCD
◆ Display mode: B, B+B
◆ Image grayscale: 256
◆ Image storage: available
◆ Cine loop: available
◆ Scan depth: available
◆ Image flip: up/down, left/right
◆ Focus position: adjustable
◆ Posture mark: available
◆ Image process: histogram, color encoding, image smooth
◆ Probe frequency: adjustable (3 points each probe )
◆ Frame correction: adjustable
◆ Measurement: distance, circumference, area, volume, GA and etc.
◆ Notation: Date, time, name, sex, age, height, weight, farm.
◆ Output report: regular
◆ Charging method: adapter, battery
◆ Adapter rating: 100-240V, 50-60Hz, 70VA
◆ Battery continuous work: ≥5 hours
◆ Machine dimension: 203mm(L)x136mm(W)x45mm(H)
◆ Net weight: 950g

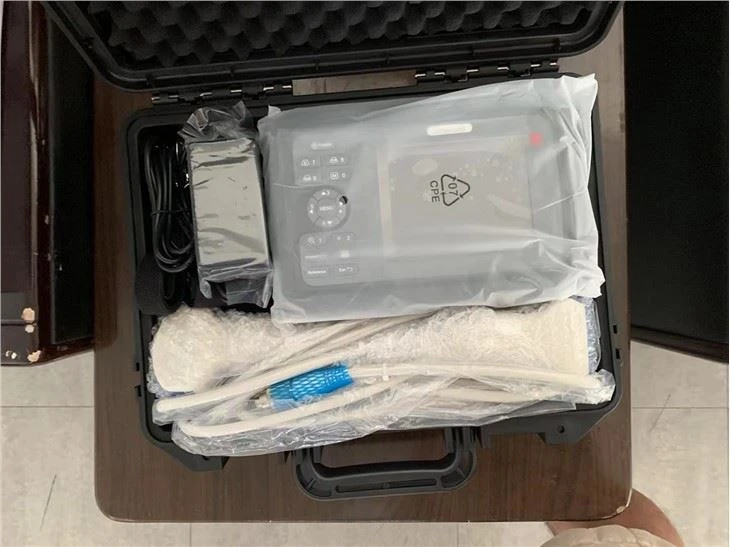

Standard Configuration:
◆ Scanner Body: 1pc
◆ Li-ion Battery: 1pc
◆ 3.5MHz Convex Probe: 1pc
◆ Charger with a Set of Wires: 1set
◆ Memory card: 8GB
◆ User Manual: 1pc
Optional:
◆ Micro-convex Probe
◆ Rectal Probe
◆ Convex Rectal Probe
◆ Back-fat Probe
◆ Li-ion Battery
