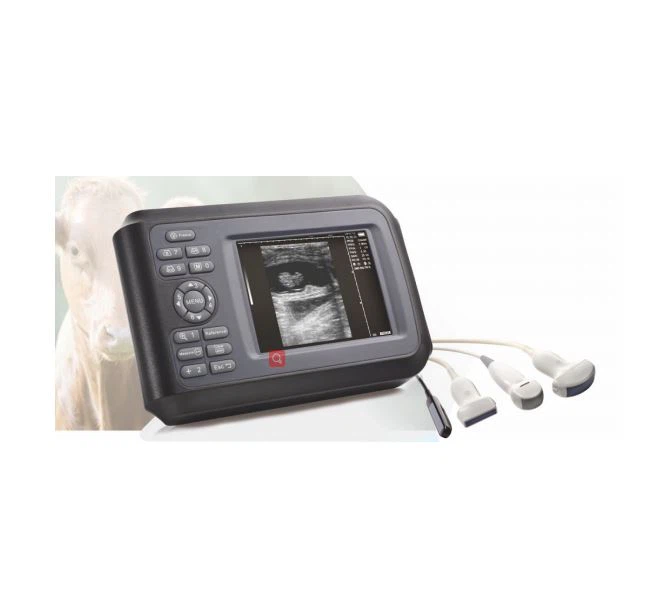

Small and portable veterinary ultrasound
Introduction:
This equipment is high resolution linear/convex ultrasound scanning diagnostic equip ment. It adopts micro-computer control and digital scan converter (DSC), digital beam-forming (DBF), real time dynamic aperture (RDA), real time dynamic receiving apodization, real time Dynamic receiving focusing (DRF), digital frequency scan (DFS), frame correlation technologies to endue its image with clarity, stability and high resolution.
Features:
5" TFT-LCD, wide visual, high brightness, high contrast, image clear and exquisite.
Hand-held design, smart and light, easy to carry, convenient for detection.
OB measurement: EDD and GA for Bovine, equine, swine, alpaca, ovine, goat, canine, feline, rabbit.
65 frames permanent storage, 4 00 frames cine loop.

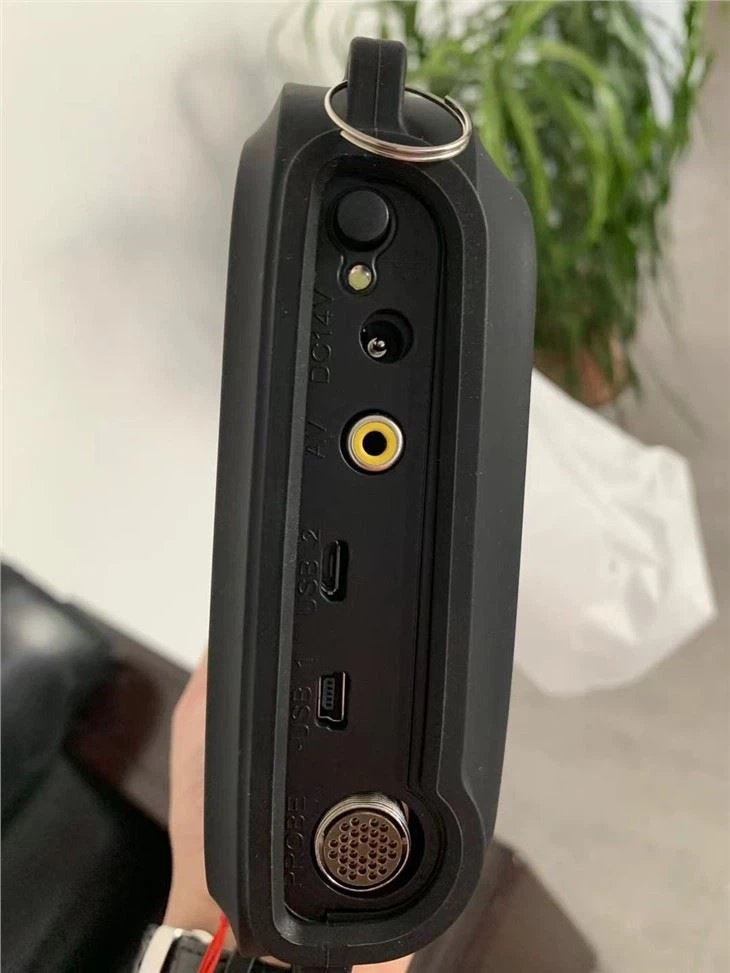

Output: USB2.0, video (PAL-D, NTSC), connecting to video recorder and ultrasonic workstation.
Easy to print out all kinds of detection images and reports.
Optional mouse to operate easier.
Adopted AC and DC to supply power, lithium battery capacity 2600mA which can make machine work more than 180 minutes.
Specifications:
etect Depth(mm) | ≥140 |
Blind zone(mm) | ≤3 |
Monitor size | 5 inch TFT-LCD |
Display mode | B, B+B, B+M, M, 4B |
Image gray scale | 256 |
Image storage | 65 |
Cine loop | ≥400 frame |
Scan depth | 120mm-220mm |
Image flip | up/down, left/right |
Focus position | Adjustable |
Posture mark | 15 |
Image process | Histogram, color encode, gama, image smooth |
Probe frequency | Adjustable ( 3 point each probe ) |
Frame correction | Adjustable |
Measurement | distance, circumference, heart rate, EDD, area, v |
Notation | date, time, name, sex, age, full screen words edit |
Output report | regular |
Output | USB2.0, VIDEO( PALD, NTSC) |
Charging method | adapter, battery |
Battery | 2600mAh, continuous work: ≥3 hours |
Machine dimension | 230mm(L)x120mm(W)x38mm(H) |
Net weight | 700g |
