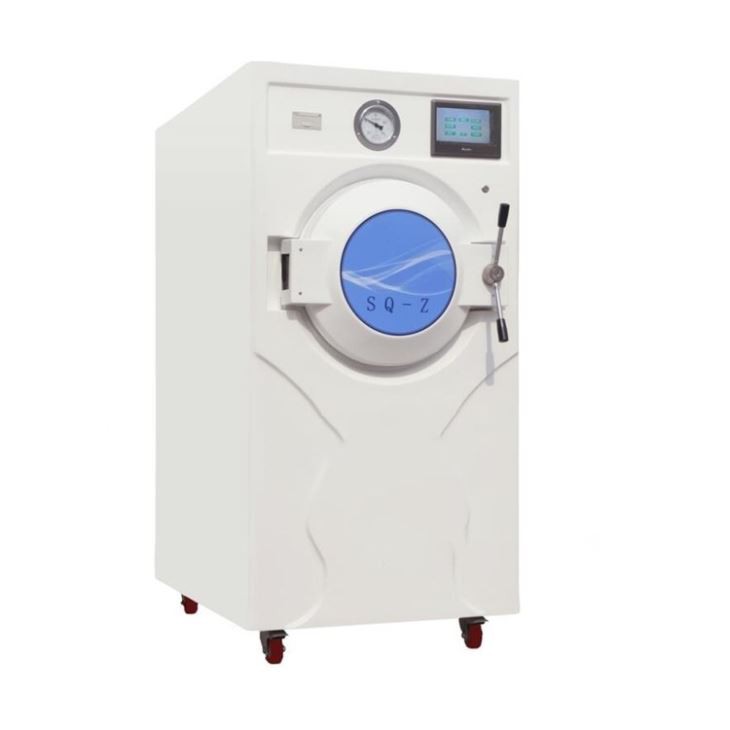

Full Automatic ETO Ethylene Oxide Sterilization

FULL Automatic ETO Ethylene oxide Sterilization We supply All kind of Ethylene Oxide Sterilization Equipment,we devoted ourselves to send you clients high quality and high efficiency Sterilization Equipment. We are expecting to become your long-terms business partner in China. 1.Production of EO...

Send InquiryChat Now
Product Details

FULL Automatic ETO Ethylene oxide Sterilization


We supply All kind of Ethylene Oxide Sterilization Equipment,we devoted ourselves to send you clients high quality and high efficiency Sterilization Equipment.

We are expecting to become your long-terms business partner in China.

1.Production of EO Autoclave YJ-EO1000

This series of ethylene oxide sterilization cabinet is well designed, sophisticated technology, mainly by the microcomputer control system, the residual gas processing device, sterilization studio etc..

All the technical indicators of the product by the computer automated management, so control is accurate and reliable; The use of mixed ethylene oxide gas sterilization has the advantage of low toxicity, efficient broad-spectrum, sterilization thoroughly, penetrating strong sterilization time is short, no corrosion of items, no residue after sterilization of items, no pollution to the environment, so the use of safe and reliable; The series of products is China ethylene oxide sterilization equipment in the more advanced equipment

2.Specifications of EO Autoclave YJ-EO1000

Sterilization room material

304corrosion proof stainless steel

Outer case material

Carbon steel (1.5mm thick)baking plastic powder

Temperature of sterilization

50℃+5℃

Working pressure

-60Kpa

The highest pressure value

-140kpa

Sterilization humidity

45%-85%RH

Power supply

AC380V/50Hz

Selection of gas

Ethylene oxide gas and carbon dioxide mixed gas

The dosage of gas

0.8g/L

Sterilization time

Adjustable 0-99 hours

Sealing door

Using electric automatic doors,pneumatic sealing easy operation,good sealing

Multiple protection function

With over-temperature protection function, more safe and reliable

Sealant strip

Concave and convex type sealing ring (patent product)silica gel material

Shelf

304stainless steel

Push cart

Carbon steel material

Printer

To record and printer the information of the whole sterilization process, for verification

Each type Parameter as follows:

Model

Volume

Chamber size(L*W*H)

Carton size(L*W*H)

YJ-EO1000

1000L

115*80*110cm

140*160*170cm

YJ-EO2000

2000L

228*80*110cm

255*160*170cm

YJ-EO3000

3000L

220*100*143cm

245*170*205cm

YJ-EO4000

4000L

290*100*143cm

315*170*205cm

YJ-EO5000

5000L

360*100*143cm

385*170*205cm

YJ-EO6000

6000L

335*120*150cm

355*175*205cm

Epoxy ethane sterilizing cabinet(fully automatic)

Volume(l)

120L

190L

Sterilizing room size (L×W×H)cm

70×45×40

82×51×46

Outline dimension(L×W×H)cm

108×80×171

108×80×171

Net weight

248Kg

319kw

Power

2.95W

3.15kw

Power supply

AC220V/50Hz

AC220V/50Hz

3.Articles and materials Can be sterilized

hysteroscopy, laparoscopy, laryngoscope, probe, rigid endoscope, hose endoscope, ophthalmic lens, fiber optic cable, cranial pressure sensor, cold treatment probe, resectoscope, esophageal dilator, electrocautery device, defibrillation electrode, laser head, metal, glass, silicone, rubber, traditional Chinese medicine, Western medicine, human implant, DNA

Multiple protection functions: With over temperature protection function, more safe and reliable.

The air inlet is provided with a sterile filter, which can effectively filter out bacteria and microorganisms, and avoid the second time pollution when discharged.

4.Features of EO Autoclave YJ-EO1000

Control mode

Programmable  controller, a key start to the end,automatic completion

Sterilization method

100%ethylene oxide gas sterilization

Display mode

Touch screen real-time display of the main parameters, operating procedures and operating conditions, etc.

Drug Add Method

Built-in piercing type automatic dosing

Sterilization room material

5052Aluminum or 304stainless steel

Sterilization chamber seal

Concave and convex type sealing ring (patent product)silica gel material

Sterilization room door

After the device starts, the door is locked automatically, and automatically opens after the program is finished, so as to prevent misoperation effectively.

Sterilization and exhaust time

0-99 hours set at random, the entire cycle time is 6-12h

Safety requirements

1.Unexpected power failure, sterilizer restore the stop state automatically
2.The whole process of sterilization is operated under negative pressure to ensure zero leakage of ethylene oxide.

Fault and error handling

If there is a fault or error, there is sound and light alarm, can immediately stop operation, color LCD touch screen with Chinese display and record

Leakage detection

Microcomputer automatic detection, if there is leakage, automatically turn to exhaust state, and alarm.

Record / print

The data can be recorded and printed in detail in English, and can be kept permanently

Emissions way

1.Built-in water atomization splitter;
2.EO is converted to ethylene glycol, which effectively reduces the degree of pollution to the environment.
3.sewer discharge

5.Deliver,shipping and Packing of EO Autoclave YJ-EO1000

YJ-EO1000 often can be delivered with in 5 working days after we received your payment.
