Full Digital Diagnostic Ultrasound System (YJ-U60) We are professional supplier of Ultrasound,We have been exported our machines to more than 60 countries such as Italy, Hungary, France, Spain, Belgium,Switzerland, Ecuador, Brazil, Bolivia, Paraguy, Nigeria, Ghana, Zambia, Kenya, Tanzania,...
Send Inquiry
Chat Now
Description
Technical Parameters

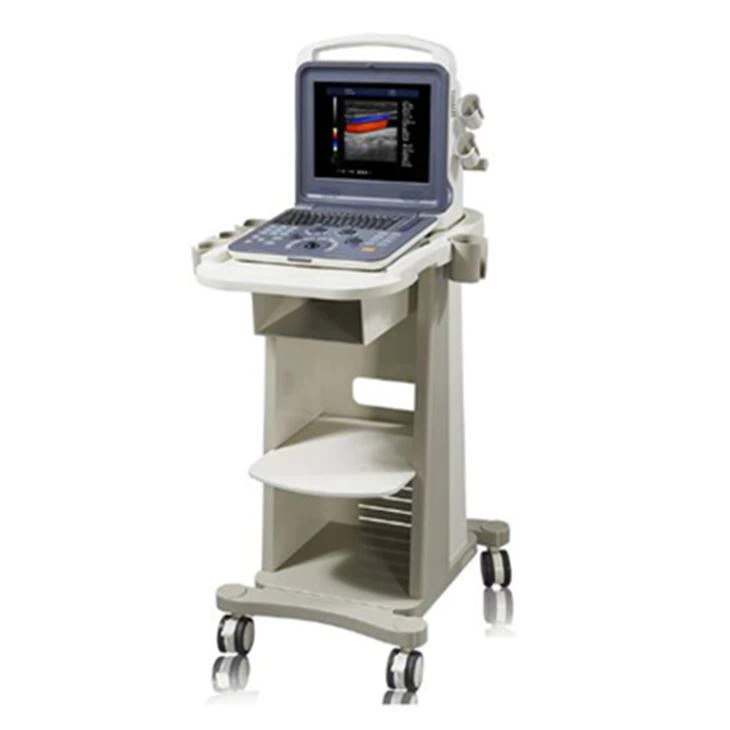

Full Digital Diagnostic Ultrasound System (YJ-U60)

Color Digital Portable Cardiovascular Ultrasound

We are professional supplier of Ultrasound,We have been exported our machines to more than 60 countries such as Italy, Hungary, France, Spain, Belgium,Switzerland, Ecuador, Brazil, Bolivia, Paraguy, Nigeria, Ghana, Zambia, Kenya, Tanzania, Democratic Republic of Congo, Cameroon, Uzbekistan, Libya, Jordan, Nepal, Singapore, India, etc.

We are expecting to co-work with you now.

Introduction of Color Doppler Ultrasound Scanner YJ-U60:

Application:Abdomen, Obstetrics, Gynecology, Pediatrics, Small parts, Artery, Superficial organ, Orthopedics, Cardiology, Musculoskeletal, Vascular, etc

Our new designed Imagine Diagnosis Equipment. Perfect designing with Laptop style,make it more convenient. And it can be produced by OEM style.

Choosing Reasons:

1.Support 3D/4D (option).

2.Multi language:Chinese/English/Spanish/ French/Persian/Russian etc

3.OEM is acceptable.

4.Smart, compact and clamshell design

5.Backlit operation panel, 8TGC

6.Floating keyboard

7.Two probe holders

Note:

1,Two years quality guarantee and 24 hours phone service for all the products supplied.

2,Training Service Supplied!

Specifications of Color Doppler Ultrasound Scanner YJ-U60:

Model

Color DopplerUltrasound Scanner YJ-U60

Application

Abdomen, Obstetrics, Gynecology, Pediatrics,Small parts, Artery, Superficial organ, Orthopedics, Cardiology, Musculoskeletal, Vascular, etc

Connectivity

Video out port
DVI out port
VGA out port
2 USB port
DICOM 3.0

Dimension

Gross dimension:
510 mm X 500 mm X 330mm
Net dimension:
330mm X 150 mm X 380mm

Weight

Gross weight
12 kg
Net weight
7 kg

Power Requirements

Voltage: AC 100V to 240V±10%
Frequency: 50Hz±1Hz
Rated Power: 250VA

Monitor

12 inch LED monitor

Display mode

B, B|B,4B, B|M,M,B|B,B|C|D,B|D,PW,B|PW,CF
Triplex mode
4D mode

Language

Chinese/English/Spanish/ French/Persian/Russian etc

Operation Conditions

Ambient temperature: 0℃to +40℃
Relative humidity: 38% to 85%
Atmospheric Pressure: 700hPa to 1060hPa

Standard Accessories

Power Cable
Operation Manual
S‐Video cable
Fuse
Recovery system USB

Optional probes

Convex probe
Trans-vaginal probe
High frequency Linear probe
Trans-rectal probe
Micro-convex probe
Phased array probe
4D volume probe

HS Code

901812910

Features:

1.12 inch LED monitor;

2.Light weight design,6.5KG;

3.Built-in floating standard keyboard and backlit keyboard design;

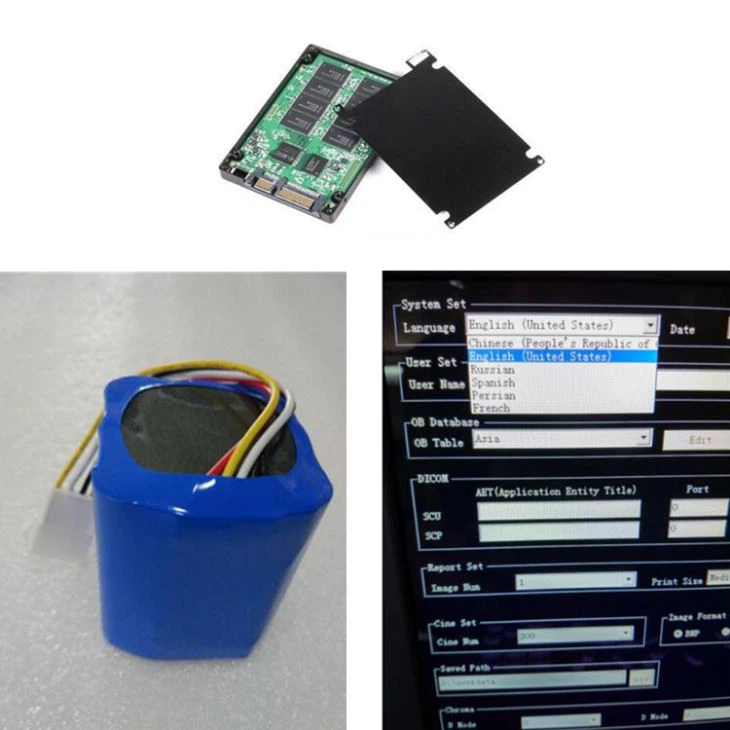

4.Built-in large capacity rechargeable Li-ion battery;

5.Multi-language software for choose (Chinese, English, Spanish, Russian, Persian and French);

6.Rich function: Spectrum Doppler(PW);Continuous Wave(CW);Panoramic imaging(option);

FAQ - What we have?

We supply B ultrasound scanners, 2D/3D/4D Color Doppler Ultrasound, 1/3/6/12 ECG/EKG, ECG Holter, handheld and Portable patient monitor, vital monitor, fetal monitor, Biochemistry Analyzer, Hematology Analyzer,Elisa Reader and Elisa Wahser,DNA&RNA Test machine,Infuison Pump, Syringe Pump, Enteral Feeding Pump,etc.

We sincerely hope to establish a nice long business relationship with your esteemd side by offering best quality and professional service in medical field.

Delivery:

FORERMED put your order into our tight production schedule, ensure your punctual delivery time.

Production/inspection report before your order packed.

Shipping notice/insurance to you as soon as your order is shipped.
