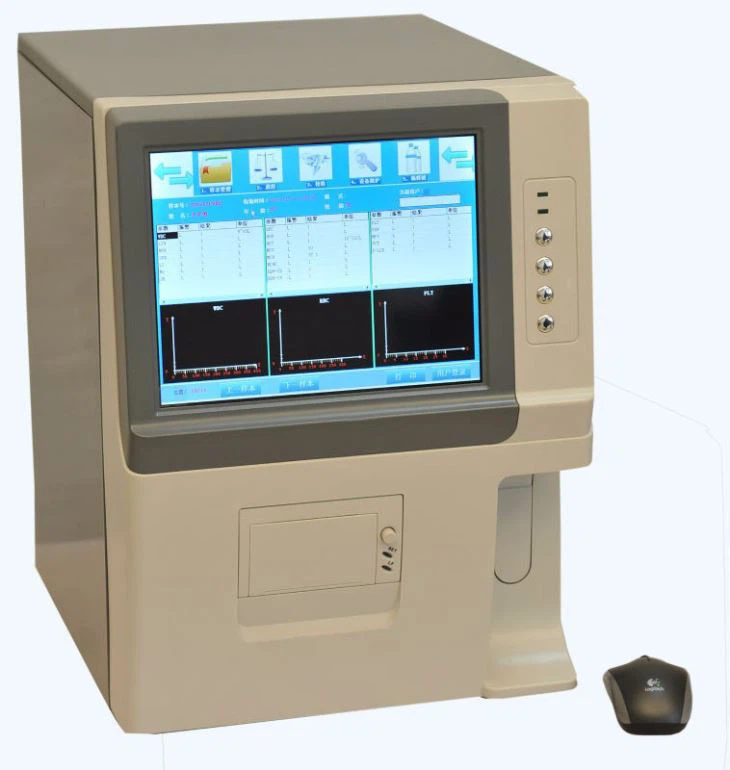

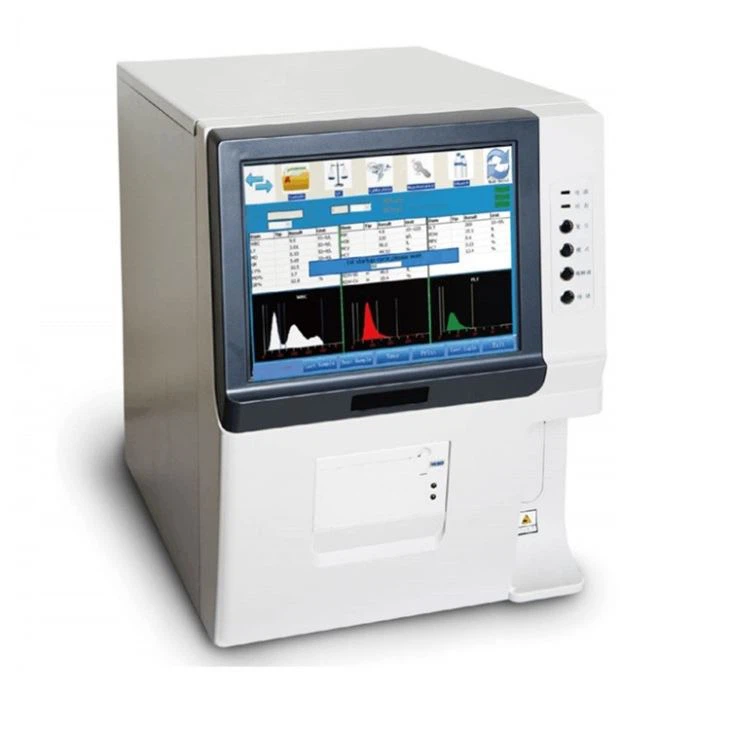

10.4″ Large color LCD Full-auto Hematology Analyzer
We supply Clinical Equipment(Biochemistry Analyzer,Hematology Analyzer,Electrolyte Analyzer,Coagulation Analyzer,HbA1c,etc...),we devoted ourselves to send you clients high quality lab Clinical Equipment with long terms services.
We are expecting to become your long-terms business partner in China.
Introduction of hematology Analyzer YJ-H6001:
Blood analyzer is one of the most widely used instruments in hospital clinical examination. Blood test refers to blood routine examination. It is the earliest manual operation and counting under microscope. It includes red blood cells, hemoglobin, white blood cell count and its classification, platelet count and so on. There are 23 items in total.
Hematology analyzers are specialized, automated systems that count leucocytes, red cells and platelets in blood, and also determine hemoglobin and hematocrit levels. Hematology technology has come a long way in a relatively short space of time. In the 1950s, complete blood counts (CBC) were performed manually by a technician in front of a microscope. Hemoglobin was also measured manually using a cyanmethemoglobin method, which was slow and time consuming.
Specification of hematology Analyzer YJ-H6001:
2 counting mode | whole blood, pre-dilution blood |
Sample pre-dilution | internal diluter, add 1ml diluent automatically by the needle, no need to add diluent manually to avoid deviation. |
Calibration | automated or manual |
QC | comprehensive QC program, forming and printing the histogram automatically |
Block removal | Real time monitor, high ignition, soak, flush and back flush |
Principle | Electrical impedance for counting and SFT method for hemoglobin |
Parameters | WBC, LYM#, MID#, GRA#, LYM%, MID%, GRA%,RBC, HGB,HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, PLT, MPV, PDW, PCT, P-LCR, and 3 Histograms for WBC, RBC and PLT |
Throughput | Up to 60 samples per hour |
Sample Volume | Whole blood:9μl;Pre-dilution blood:20μl |
Aperture Diameter | WBC:80μm;RBC: 50μm |
Alarms | Error messages |
Display | 10.4’’ large color LCD |
Storage | 10,000 sample results including histograms,available to increase storage by expanding memory card |
Printout | Built-in thermal printer, various print-out formats; external printer optional |
Input | Mouse and keyboard, connected by USB port |
Interface | USB x3, RS232 x2 |
Working Conditions | Temperature:15-35℃;Humidity:≤80%;Atmospheric pressure:70Kpa-106Kpa;Power supply:AC220V±22V, 50±1Hz |
Packing Dimension | 325x370x545mm(L*W*H) |
Weight | 16Kg(net), 25Kg(gross) |
Features of hematology Analyzer YJ-H6001:
1.3-part blood cell counter;
2.20 parameters + 3histograms;
3.2 counting channels;
4.Up to 60 samples/hour;
5.10.4″ large color LCD;
6.Built-in printer, USB port;
7.Stable, durable and economical;
User-friendly System
10.4’’large color LCD displays main menu and all parameters & color histograms in one screen;
Brief operation instruction built-in software, easy for user to view;
Separate module design, very simple mechanical structure,easy maintenance;
Self check for hardware, alarm for error;
Reagent depletion alarm for Lyse, Cleanser and Diluent, as optional function;
High Stability & Accuracy
Use the most advanced binuclear embedded digital circuit system, to make the analytical ability great and stable
2 counting channels of WBC and RBC, to make the test results more accurate and less cross- contamination
Use CPLD technology in data processing, to avoid the interference of electromagnetic signals
Reliable Operation System
ARM intelligent micro-processing technology
Data analysis: intelligent pulse formulation technology
Classification: floating landmark technology
Module design, fast maintenance
Reagents of hematology Analyzer YJ-H6001:
We will offer you a Start-up reagent set free per unit Hematology analyzer:
(Lyse-500ml,Cleanser-1L,Diluent-5L,Cont.Cleanser-100ml) for 200 samples tests.
And We also have Sales Reagent sets:(Lyse-1L,Cleanser-1L,Diluent-20L,Cont.Cleanser-100ml) for 800 samples tests.
The reagent you also can use ABX micro 60 and Sysmex reagents.
FAQ：
Q:What is time of delivery?
A:Since our products are produced according to each specific order, the delivery period will be 15days after confirmation of order. If it is small or sample order, please do check with us about whether we have ready goods in stock to make delivery as soon as possible.
Q:What about quality assurance?
A:We offer one year warranty period beginning from the time of shipment for medical equipment, Per minor problems, we can provide free spare parts for replacements, Per serious problems, we can make replacement of free charge. But if the machine is damaged due to rough handling during the transportation, we are free of any responsibility, but we will still provide help to the buyer issue claims against the shipping company or insurance company, thus all the spare parts or expenses should be borne by buyer.
Q:What is payment terms?
A:T/T in advance, Western Union
Q:Which shipping company usually using?
A:MAERSK-LINE, PIL, COSCO, SAFMARINE, MARUBA, APL, CMA, CSAV, K-LINE, MSC, NYK, AND DHL, EMS, TNT, UPS FOR COURIER, buyer's option will be our priority, we will give suggestion according to the schedule and services.
Delivery:
