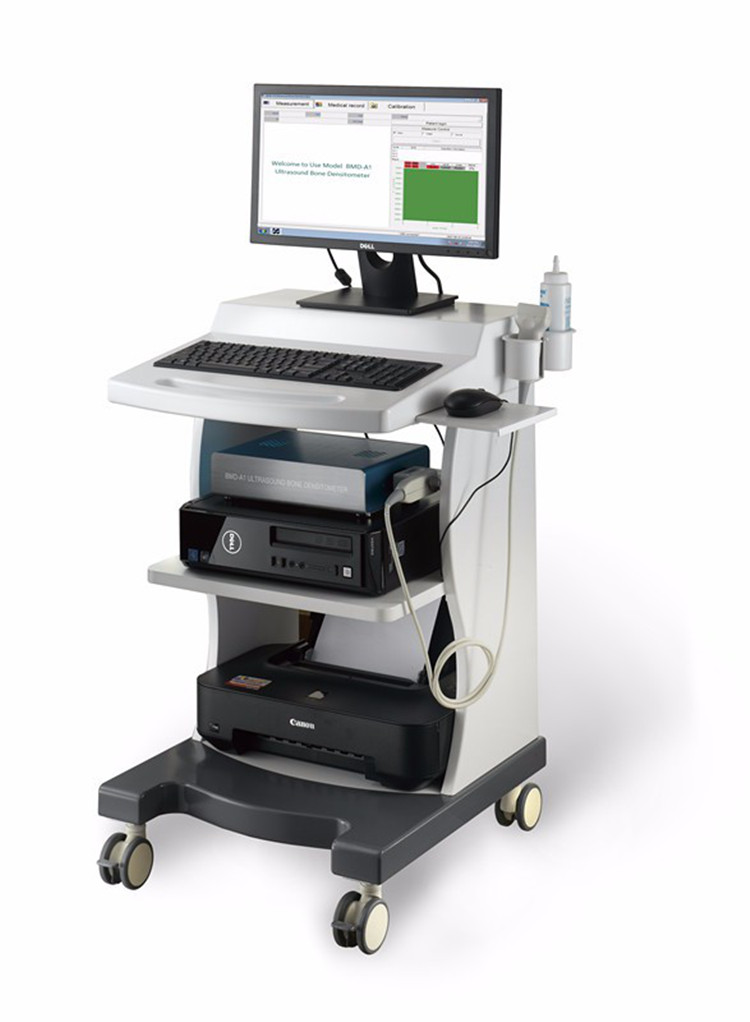

Trolley Ultrasound Bone Densitometer (YJ-UBD2A)
We supply Image Equipment(Human ultrasound, Veterinary ultrasound, Ultrasound Bone Densitometer,X Ray,CT and MRI...),we devoted ourselves to send you clients high quality Clinical Equipment with long terms services.
We are expecting to become your long-terms business partner in China.
Introduction of Ultrasound Bone Densitometer YJ-UBD2A：
YJ-UBD2A ultrasound bone densitometery is designed to measure bone mass.Using our owned ultrasonic patent technology and USA DuPont technology,making it right for diagnosis all age persons,right for WHO standard.What’s more,it can be much more safety for pregnant woman and children bone densitometer testing.
Specifications of Ultrasound Bone Densitometer YJ-UBD2A：
Measurement parts | 1/3 of radius and middle of the Tibia |
Measurement mode | double emission and double receiving |
Measurement parameters | Speed of sound (SOS) |
Analysis Data | T- Score, Z-Score, Age percent[%], Adult percent[%], BQI (Bone quality Index ), PAB[Year] (physiological age of bone), EOA[Year] (Expected Osteoporosis age), RRF(Relative Fracture Risk). |
Measurement Accuracy | ≤0.15% |
Measurement Reproducibility | ≤0.15% |
Measurement time | three period <25 seconds |
Probe frequency | 1.20MHz, United States DuPont technology. |
Date analysis | BMD-A5 special intelligent real –time data analysis system, it selects the adult or child databases according to the age automatically . |
Daily Calibration | automatic calibrating after power on |
Temperature control | Perspex sample with temperature instructions |
Power and voltage | AC220V±10%,50Hz±1Hz |
Input power | ≤120VA |
Features of Ultrasound Bone Densitometer YJ-UBD2A：
1.Using the full dry technology, makes diagnostic more convenient.
2.The probe adopt the Technology of the United States DuPont, makes the probe to receive higher sensitivity and better reception.
3.the better ultrasonic frequency on the measuring position, with better penetrability, more effective signal
4.use the ultrasonic axial conduction technology, double emission and double receiving, it can provide more effective data
5.With innovative algorithm, effectively remove clutter and jamming signal, to get the valid data.
6.With a special correction system, to correct the system error effectively, get more accurate measurement results.
7.multipoint access mode with high shield and mold manufacturing, to ensure the lossless transmission of the ultrasonic signals.
8.it with multi race clinical database, including: European, American, Asian, Chinese, WHO international compatibility. It measuring the people between the age of 0 and 100.
Configuration of Ultrasound Bone Densitometer YJ-UBD2A：
1.YJ-UBD-A1 Ultrasound Bone Densitometer Main unit
2.1.20MHz Probe
3.Intelligent Analysis System
4.Luxurious Trolley
5.Dell Business Computer with i3 CPU
6.Dell 19.5 Inch Color LED Monitor
7.Canon Color Ink Jet Printer IP2780
8.Calibrating Module (Perspex sample)
9.Disinfectant Coupling Agent
FAQ：
Q:Which certifications do you have?
A: Most of our products are CE, ISO and RoHS certified, some medical equipment also have FDA approval.
Q:What after sales services do you provide?
A:We offer technical, customer service & troubleshooting support for most of our products. Therefore if you have problems with any of our products, please contact us anytime and we will do our best to help.
Delivery:
By express like:DHL,TNT,UPS...
By Air,
By sea...
According to the client’s need.
