Digital Portable Colposcope
We supply Clinical Equipment(Color ultrasound, B/W ultrasound, Human ultraound, Veterinary ultrasound, Portable ultrasound. Trolley ultrasound, etc...),we devoted ourselves to send you clients high quality Clinical Equipment with long terms services.
We are expecting to become your long-terms business partner in China.

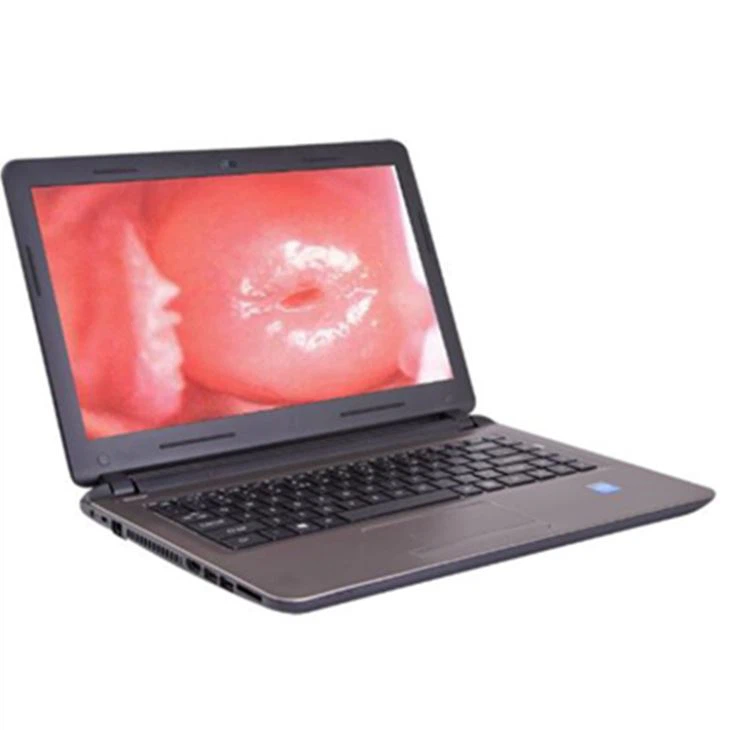

Introduction of Laptop Digital Electron Colposcope Workstation YJ-U150：
Colposcope is a gynecological clinical diagnostic instruments. For the diagnosis of cervical disease, it can be observed 10 to 60 times magnification images, found small lesions the naked eye can not find. Through this amplification effect, the doctor can clearly see the cervix blood vessels on the skin, detection of cervical cancer precursor lesions, to provide the basis for early diagnosis of cervical cancer, so that patients receive effective treatment in advance, so that the cure rate of cervical cancer greatly increased. And it can be produced by OEM style.
Note:
1,Two years quality guarantee and 24 hours phone service for all the products supplied.
2,Training Service Supplied!
Specifications of Laptop Digital Electron Colposcope Workstation YJ-U150:
| Laptop Digital Electron Colposcope Workstation YJ-U150 | |
Model | YJ-U150 |
Camera | Brand: Sony |
1)Image Senor:1/4' Super Had CCD 2)Imaging Pixels:800,000 Pixels 3)Scanner System: NTSC(525)30frame/sec PAL (625)25frame/sec 4)Level Clarity: 480 TV 5)Self-automatic focus working distance: 200mm~300mm, 6)Electronic Control: 1/50～1/10000 7)γ: 0.45 8)Camera: 18 Times Optics zoom lens can enlarge 12 Times of the Image 9)Viewing Angle: 48°(WIDE)-2.7°(TELE) 10)Illumination Intensity(mix):1.0Lux 11)Zooming speed: 3 SEC mode/6 SEC mode 12)The standard of Video Out: 1VP-P75Ωmixed 13)Back Lighting Compensation: Open/Close 14)EV Compensation:-10.5DB - 10.5DB 15)Range of view: Φ10mm ～ 60mm 16)The depth range for camera: 5mm~120mm 17)Self-automatic adjustment for balances. 18)The life of light source ≥50000 hours, light illumination≥2000Lux 19)3-stage electronic green filter technology controlled by key 20)Timing control technology of acetic acid or iodine staining test reflect controlled by key (Record is displayed in image), which need to provide graphic and text report sample. 21)Check the display of image magnification times and provide graphic and text report sample. Image zoom, white, green, time, freezing and other functions are integrated into the palm-type control system. The real palm-type control. | |
Colposcope Workstation Software | |
| 1)Support real-time display, capture, frozen, storage and printing of images. 2)It can realize dynamic video and movie replay for observing and checking the images. 3)Digital patients’ database management mode: 1.Based on patients’ records system of database management, it can supply the name of database system. 2.It has storage of more than 1,000,000 pictures, and it can call, add and delete randomly any of the patients’ records. 3. It's convenient to check patients’ records which can be analyzed statistically 4.It can support two or more graphic color printing for patients’ reports, and graphic report sample is available. 5.Based on the requirements, users can self-design and save the printing result, so as to have their own style print report, with photo quality printing and illustrated report. 4)It supports the printing function for LEEP surgery report. 5)It supports comparative analysis of patients’ data. 6)It supports RCI assessment and graphic report sample is available. 7)Mining map is controlled by the foot switch and by mouse. 8)With image data exchange interface (DICOM3.0), it supports network and provides the using hospital information. 10) The device installs self-automatic recover system of operation. Once in the abnormal situation, it can immediately return to the initial state. | |
Stand | Flexible |
Storage environment and working condition | Power:1.5W-2.5W |
Size | 57*42*40CM |
Features of Laptop Digital Electron Colposcope Workstation YJ-U150:
1.Sony camera
2.Support real-time display, capture, frozen, storage and printing of images
3.The device installs self-automatic recover system of operation. Once in the abnormal situation, it can immediately return to the initial state.
Construction | with sony lens |
Optional | Laptop Computor |
FAQ：
Q:What is time of delivery?
A:Since our products are produced according to each specific order, the delivery period will be 15days after confirmation of order. If it is small or sample order, please do check with us about whether we have ready goods in stock to make delivery as soon as possible.
Q: Are you manufacture?
A: Yes,we have our own team,we provide you non-stop service.
Q: What is payment terms?
A: T/T in advance, Western Union
Q: Which shipping company usually using?
A: MAERSK-LINE, PIL, COSCO, SAFMARINE, MARUBA, APL, CMA, CSAV, K-LINE, MSC, NYK, AND DHL, EMS, TNT, UPS FOR COURIER, buyer's option will be our priority, we will give suggestion according to the schedule and services.
Delivery:
Hot Tags: portable video colpscope, China, suppliers, manufacturers, factory, low price
