Products Description
YJ-Mars1717v Wireless Digital Flat Panel Detector
Mars 1717V is a smart 17×17-inch wireless, cassette-sized FPD for radiographic imaging. It features reliable
AED, dependable wireless performance, and a long battery life. The Mars 1717V supports a fast work flow,
and is the optimal choice for both retrofit and new DR system solutions.
Mars 1717V production is a wireless type and low noise x ray flat panel detector based on amorphous silicon technology.
A-Si technology based detector owns many advantages that are unavailable with other technology, Mars 1717V production takes a high image quality and a large dynamic range, also Mars 1717V possesses multi-gain stage, this function makes it possible that the detector can both be suitable for high sensitivity and large dynamic range requirements.
Based on above characteristics, Mars 1717V detector can be widely used in medical, industrial,vet-erinary, and research application area.
Products Feature
successful cases
Choose the plan that suits you best.
Key Feature
Pixel Matrix： 3072X3072
ADC： 16-bit
Gain Stage： Multi-Gain
Scintillator： GOS / CSI
Water Proof： IP54
Interface： Wi-Fi
Calibration： Software, Firmware
Radiation Hardness：≥10000Gy
Technology
Scintillator : GOS / CSI
Active Area : 430 x 430 mm
Pixel Matrix : 3072 x 3072
Pixel Pitch : 140 μm
AD Conversion : 16 bits

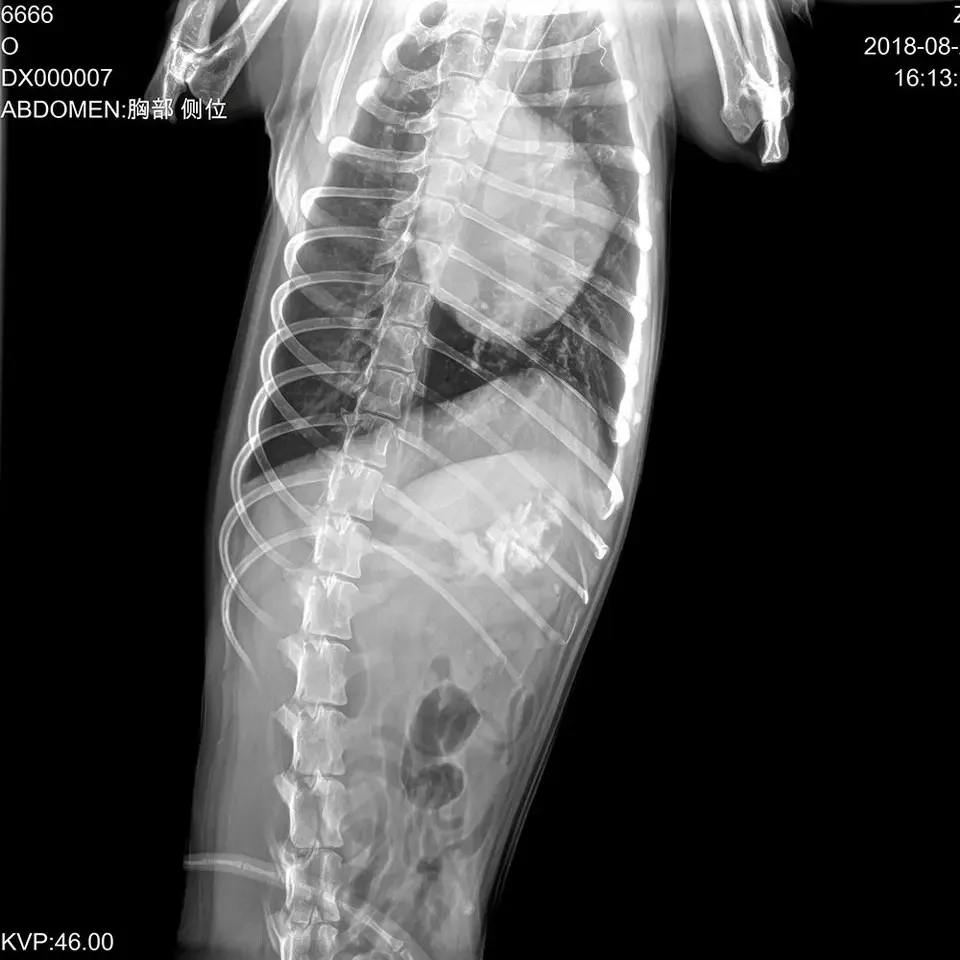

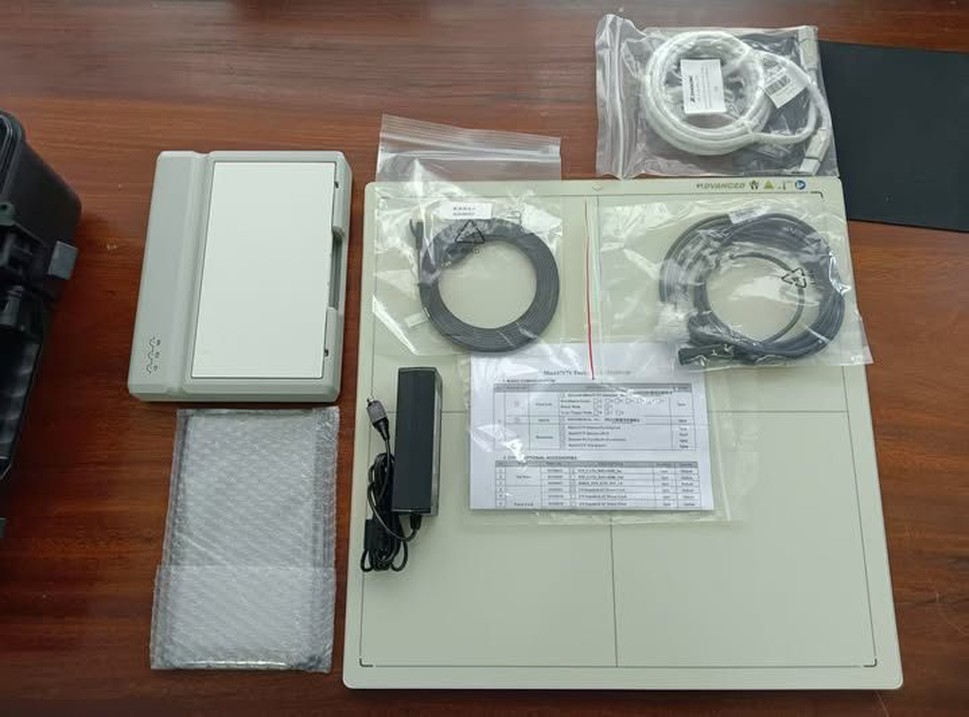

Detailed Pictures
RAQ
Q: 1. What kind of medical equipment does your company specialize in?
Q: 2. Which countries or regions do you export to?
Q: 3. What is your shipping method and delivery time?
Q: 4. What payment methods do you accept?
Q: 5. May we have a tour of your factory?
Q: 6. Do you provide after-sales service?
Q: 7. Can you provide customized solutions for medical devices?
Q: 8. What is your price range for medical equipment?
Q: 9. How can we guarantee the authenticity of your products?
Q: 10. What is your target market for medical devices?
Contact Information
Tel: +8618838114181
Phone: +8618838114181
Email: emily@yjcompany.com
Address: Wanda Center, Jinshui District, Zhengzhou, Henan, China
Whatsapp: +8618838114181
Hot Tags: wireless digital flat panel detector, China, suppliers, manufacturers, factory, low price
|
Technical Specifications |
Mars 1717V |
|
Detector Technology |
Amorphous Silicon |
|
Scintillator |
CSI |
|
Active Area (inch) |
17×17 |
|
Pixel Matrix |
3072×3072 |
|
Pixel Pitch (pm) |
139 |
|
Spatial Resolution (lp/mm) |
3.6 |
|
AD Conversion (bit) |
16 |
|
Battery Autonomy (h) |
5 |
|
WIFI |
2.4G and 5G, IEEE802.11 a/b/g/n/ac |
|
Trigger Mode |
AED (Optional) / Software |
|
Internal Image Storage |
200 full size images |
|
Full Image Time (s) |
5 |
|
Dimensions (mm) |
460×460×15 |
|
Weight (kg) |
4.6 |
|
Static Loading |
150 kg Uniformly |
|
Center Loading |
135kg@4cm |
|
Ingress Protection |
IPX1 |
|
Operating Temperature (°C) |
5~35 |
|
Storage & Transport Temperature with Package (C) |
-20~55 |
|
Operating Humidity (% RH) |
10~90(Non-Condensing) |
|
Storage & Transport Humidity with Package (% RH) |
5~95 (Non-Condensing) |
