Products Description

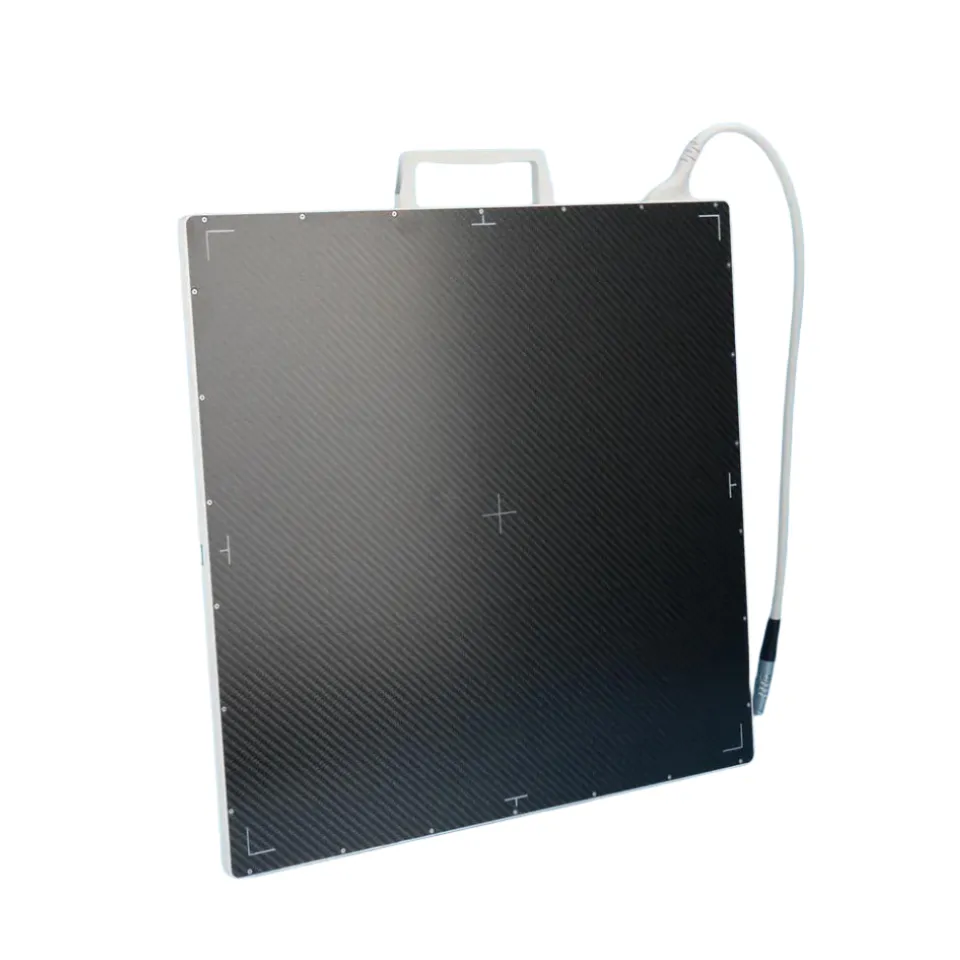

YJ-4343FP
High resolution 17''*17'' Portable Wired X Ray Digital X Ray Machine Handy X Ray System Equipment Portable Xray Panel
successful cases
Choose the plan that suits you best.
Key features for amorphous silicon technology：
Power
Application
extreme light weight
Detailed Pictures
FAQ
Q: 1. What kind of medical equipment does your company specialize in?
Q: 2. Which countries or regions do you export to?
Q: 3. What is your shipping method and delivery time?
Q: 4. What payment methods do you accept?
Q: 5. May we have a tour of your factory?
Q: 6. Do you provide after-sales service?
Q: 7. Can you provide customized solutions for medical devices?
Q: 8. What is your price range for medical equipment?
Q: 9. How can we guarantee the authenticity of your products?
Q: 10. What is your target market for medical devices?
Contact Information
Tel: +8618838114181
Phone:+8618838114181
Email: emily@yjcompany.com
Address: Wanda Center, Jinshui District, Zhengzhou, Henan, China
Whatsapp: +8618838114181
Skype: live:.cid.f4a1b4801c7fee8
Wechat: +8618838114181
Hot Tags: Wired Flat Panel Detector, China, suppliers, manufacturers, factory, low price
|
Sensor |
A-Si |
|
Scintillator |
GOS / CSI |
|
Active Area |
350 x 427 mm |
|
Pixel Matrix |
2500 x 3052 |
|
Pixel Pitch |
140 μm |
|
AD Conversion |
16 bits |
|
Interface |
|
|
Communication Interface |
Gigabit Ethernet |
|
Exposure Control |
Trigger In(Edge or Level) / Trigger Out (Edge |
|
Image Acquisition Time |
≤1 seconds |
|
Operating System |
Windows7 / Windows10 OS 32 bits or 64 bits |
|
Technical Performance |
|
|
Resolution |
3.5 lp/mm |
|
Energy Range |
40-160 KV |
|
Lag |
<1% @1st frame |
|
Dynamic Range |
≥86dB |
|
Sensitivity |
540 lsb/uGy |
|
SNR |
48 dB @(20000lsb) |
|
MTF |
70% @(1 lp/mm) |
|
DQE |
58% @(0 lp/mm) |
|
Mechanical |
|
|
Dimension(H x W x D) |
460 x 383 x 15 mm |
|
Weight |
3.5 Kg |
|
Sensor Protection Material |
Carbon Fiber |
|
Housing Material |
High Strength Aluminum Alloy |
|
Environmental |
|
|
Temperature Range |
10~35°℃(operating);-10~50℃(storage) |
|
Humidity |
30~70% RH(non-condensing) |
|
Vibration |
IEC/EN 60721-3 class 2M3(10~150 Hz,0.5 g) |
|
Shock |
IEC/EN 60721-3 class 2M3(11 ms,2 g) |
|
Dust and Water Resistant |
IPX0 |
|
Power |
|
|
Supply |
100~240 VAC |
|
Frequency |
50/60 Hz |
|
Consumption |
13W |
|
Application |
|
|
Human |
Veterinary |
