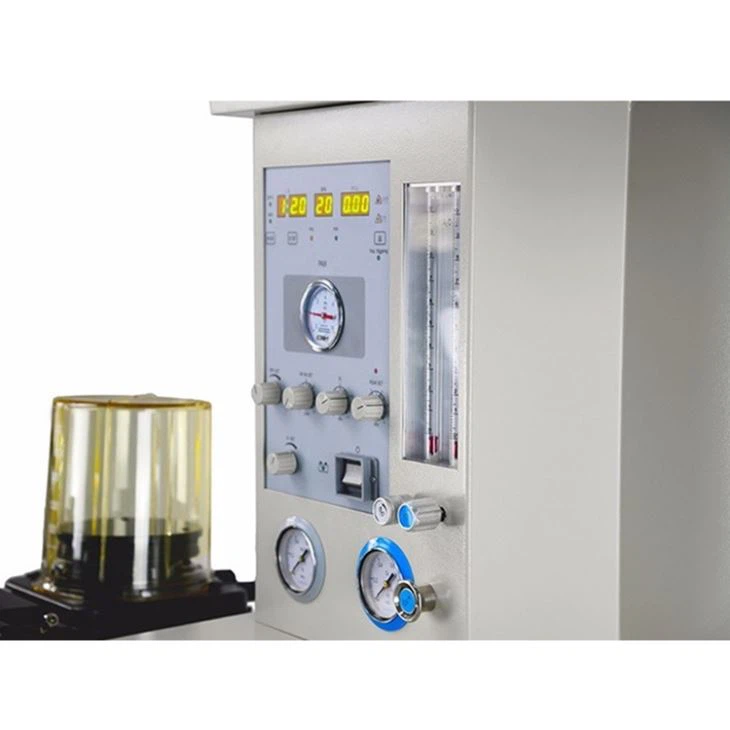

Veterinary Multifunctional Anesthesia machine
Introduction:
One high-precision vaporizer is designed with a stable concentration output, automatic compensation for pressure, temperature and flow rate. And it is available to choose one kind of gas from Halothane, Enflurane, Isoflurane, and Sevoflurane, ensuring a successful anesthesia operation.
Reliable pneumatic transmission system.
Economic and proper configuration of technologies, optional as required by the customer.
Modularized design and upgrading. Upgrading is available as required by the customer.
Main technical specifications: | |
Gas requirement: | Medical oxygen and nitrous oxide with a pressure ranging from O2 & NO2: 0.32~0.6 MPa. |
2-tubes Flowmeters: | O2 & N2O; 0.1L/Min ~ 10L / Min; |
Oxygen Flush | 25~75 L / Min |
Respiration Mode: | A/C, IPPV, SIPPV, MANUAL |
Tidal Volume: | 50~1500ml |
I/E Ratio: | 1:1.5 ~ 1:3.0 |
One vaporizers: | Enflurane/ Isoflurane/Sevoflurane/Halothane |
Vaporizer Setting Range: | 0.5%~5% |
Respiration Frequency: | 4~40 bpm |
Ptr: | -1.0kPa ~ 1.0 kPa |
CO2 absorber capacity: | 1 kg |
Optional | Patient monitor |
Alarm parameters | upper/lower limit of airway pressure, tital volume exceed limitation, no tidal volume output, apnea, AC power malfunction, Battery low power. |
Alarm parameters: upper/lower limit of airway pressure,tital volume exceed limitation,no tidal volume output,apnea,AC power malfunction,Battery low power.
FAQ:
Q:The minimum order quantity of patient monitor Anesthesia machine YJ-801?
A:1 Piece
Q:What is your companies’ port loading?
A:Shanghai
Q:What is your companies’ payment term?
A:T/T,Western Union.,Alibaba Trade Assurance,etc...
Packing and Shipping:
The equipment could be shipped by sea,air and express as per your needs.
The package will be delivered to your office effeciently and safely.
