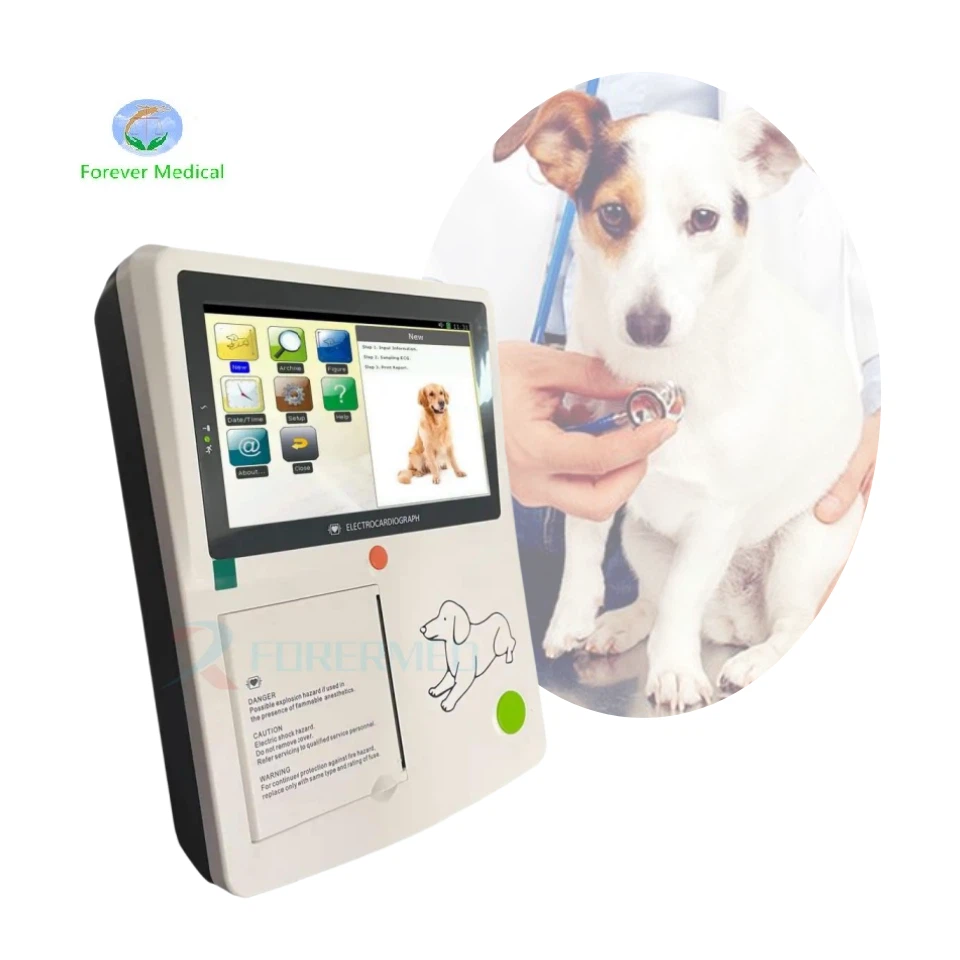

Veterinary Ecg Machine

* 7/12 lead ECG synchronous sampling system.
* Thermal printer with 80mm print paper, synchronization print.
* 7 color touch-screen, touch operation.
* Automatic measurement, calculation, analysis, waveform freezing.
* Support USB flash disk & SD memory.
* Datatransmittingto PC via USB.
* Patient's information can be input.
* Historical data can be reviewed and printed.
* Built-in rechargeable li-ion battery

Send Inquiry

Chat Now

Download

Description

Technical Parameters

Products Description

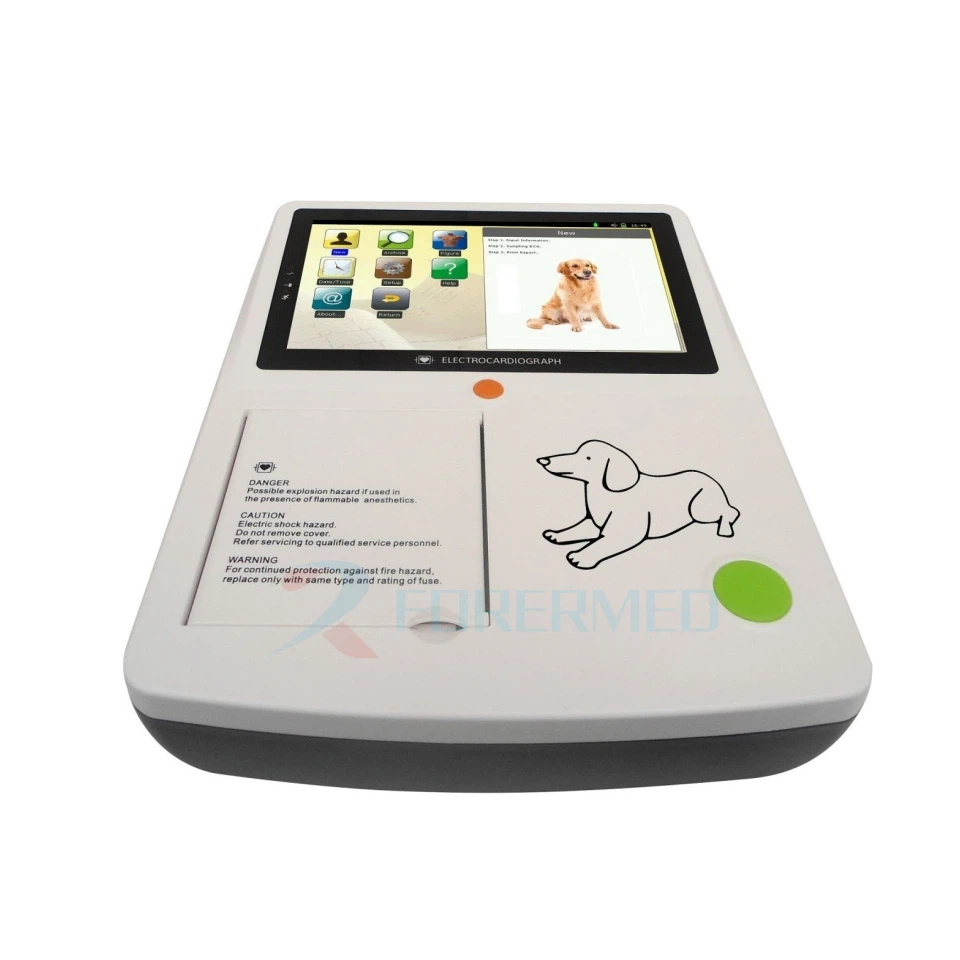

Animals Portable ECG Machine with 7'' Color Touch Screen

vet ecg

Introducing our revolutionary ECG product for animals! With cutting-edge technology and accuracy, our product provides real-time monitoring of your pet's heart health. Its compact design and user-friendly interface make it easy to use for both veterinarians and pet owners. Stay informed about your furry friend's cardiovascular well-being with our reliable and efficient ECG device.

Features

* 7" Color Screen

* Touch Operation

* Barcode Scanner

* PC Review & Print

* USB Key board/Mouse

* USB & SD Memory

* 7/12 lead ECG synchronous sampling system.

* Thermal printer with 80mm print paper, synchronization print.

* 7 color touch-screen, touch operation.

* Automatic measurement, calculation, analysis, waveform freezing.

* Support USB flash disk & SD memory.

* Datatransmittingto PC via USB.

* Patient's information can be input.

* Historical data can be reviewed and printed.

* Built-in rechargeable li-ion battery, AC/DC power conversion.

* Sleep mode to save energy and extend TFT screen life.

* Support USB Key board/Mouse.

* Lead off & lack off paper detection function.

* 7 level printing thick can be chosen.

* Adapt to 110-230V, 50/60Hz AC power supply.

Products parameters

Technical Specification
CMRR	≥ 100dB, with AC Filter	Calibrating voltage	1mV± 3%
Input circuit	Floating, Protection against defibrillator effect	Voltage tolerance	± 500mV
Input circuit current	≤ 0.1UA	Time Constant	> 3.2s
Resolution	12bit/1000Hz	Frequent response	0.05Hz~150Hz
Operation mode	Manual/Auto	Noise level	≤ 15 uVp-p
Filter	AC. ECG Filter	Threshold	≤ 20μV
Drift filter	Anti-Drift System	Paper speed	12.5mm/s, 25. 50mm/s(±3%)
Input impedance	> 50M2	Sensitivity	5, 10, 20mm/mV
Patient current leakage	< 10P A	Recorder	High resolution thermal printer
Rated voltage	100V-230V 50Hz/60Hz	Battery	Li-ion Battery(11.1V,2200mAh)
Recording paper	Thermal recording paper	Dimension	256mm×204mm×66mm

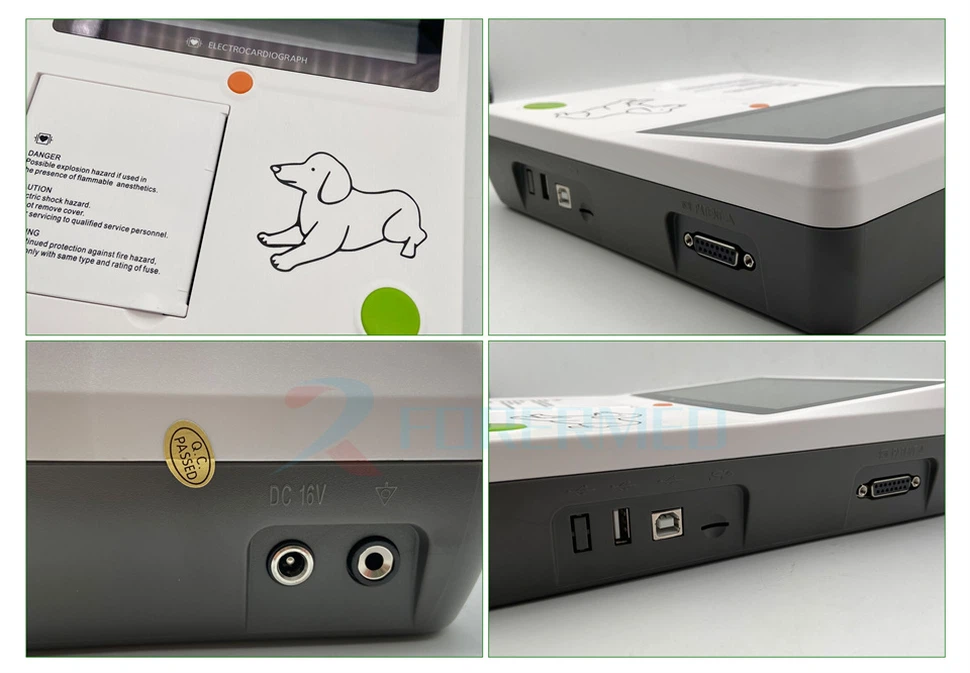

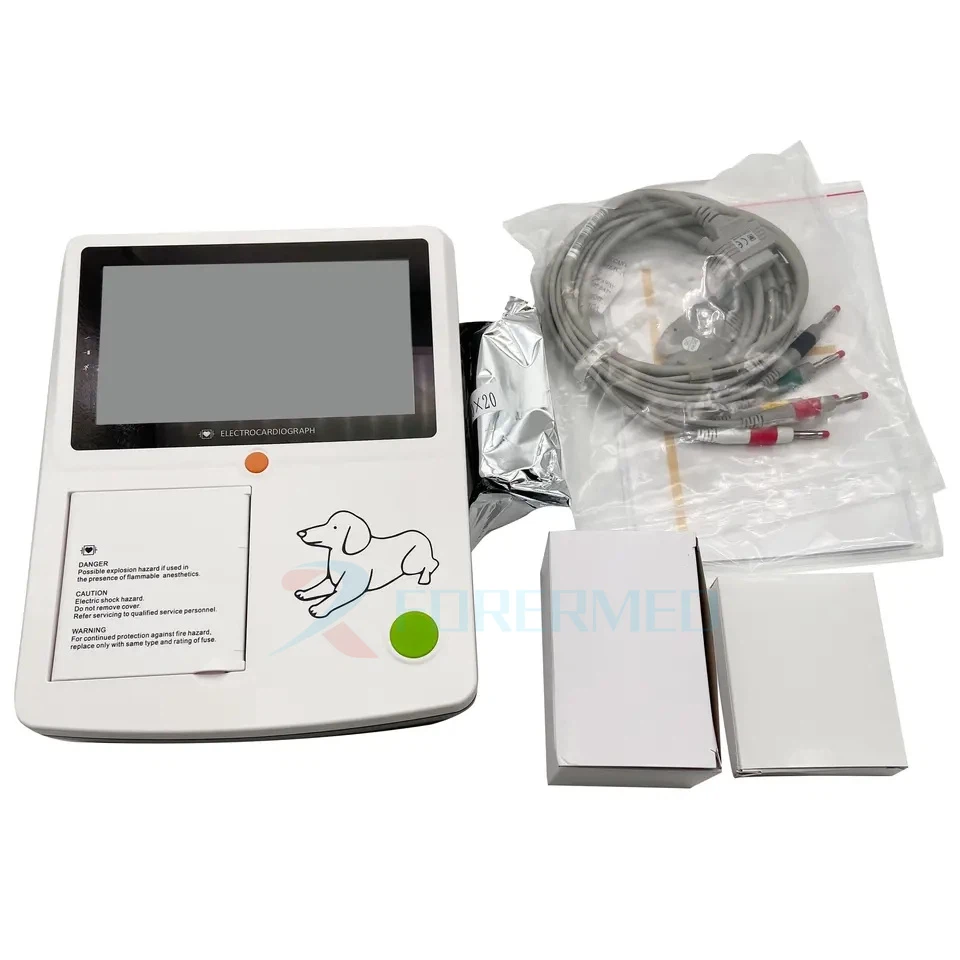

Detailed Pictures

ECG

FAQ

Q1: Can I use this ECG product on different types of animals?
A :Yes, our ECG product is designed to be used on a variety of animals, including dogs, cats, and even larger animals like horses.

Q2:How long does it take to get results from the ECG monitoring?
A :The ECG monitoring process is quick and efficient, typically providing real-time results within seconds of placing the electrodes on your pet's body.

Q3:Is the ECG device safe for my pet to wear for extended periods?
A :Yes, our ECG device is designed with your pet's safety and comfort in mind. It is safe for your pet to wear for extended periods, allowing continuous monitoring without causing any discomfort or harm.

Q4:Can I access the ECG data remotely?
A :Absolutely! Our ECG product is equipped with advanced connectivity features, allowing you to access and review your pet's ECG data remotely through a dedicated mobile app or web interface.

Q5:How do I interpret the ECG results?
A :While our ECG product provides real-time monitoring, it is always recommended to consult with a veterinarian for the accurate interpretation of the results. They can provide expert analysis and guidance based on your pet's specific health needs.
