Name: Multi-parameter Patient Monitor
Brand: FORERMED
SKU: 187334103

Multi-parameter Patient Monitor

YJ-C8000 patient monitor is designed to match the pace and unique needs of adult, pediatric, and neonatal intensive care; anesthesia and peri-operative care; OR and cardiac care environments.
Pacemaker detection and Arrhythmia analysis.

Send Inquiry

Chat Now

Description

Technical Parameters

Products Description

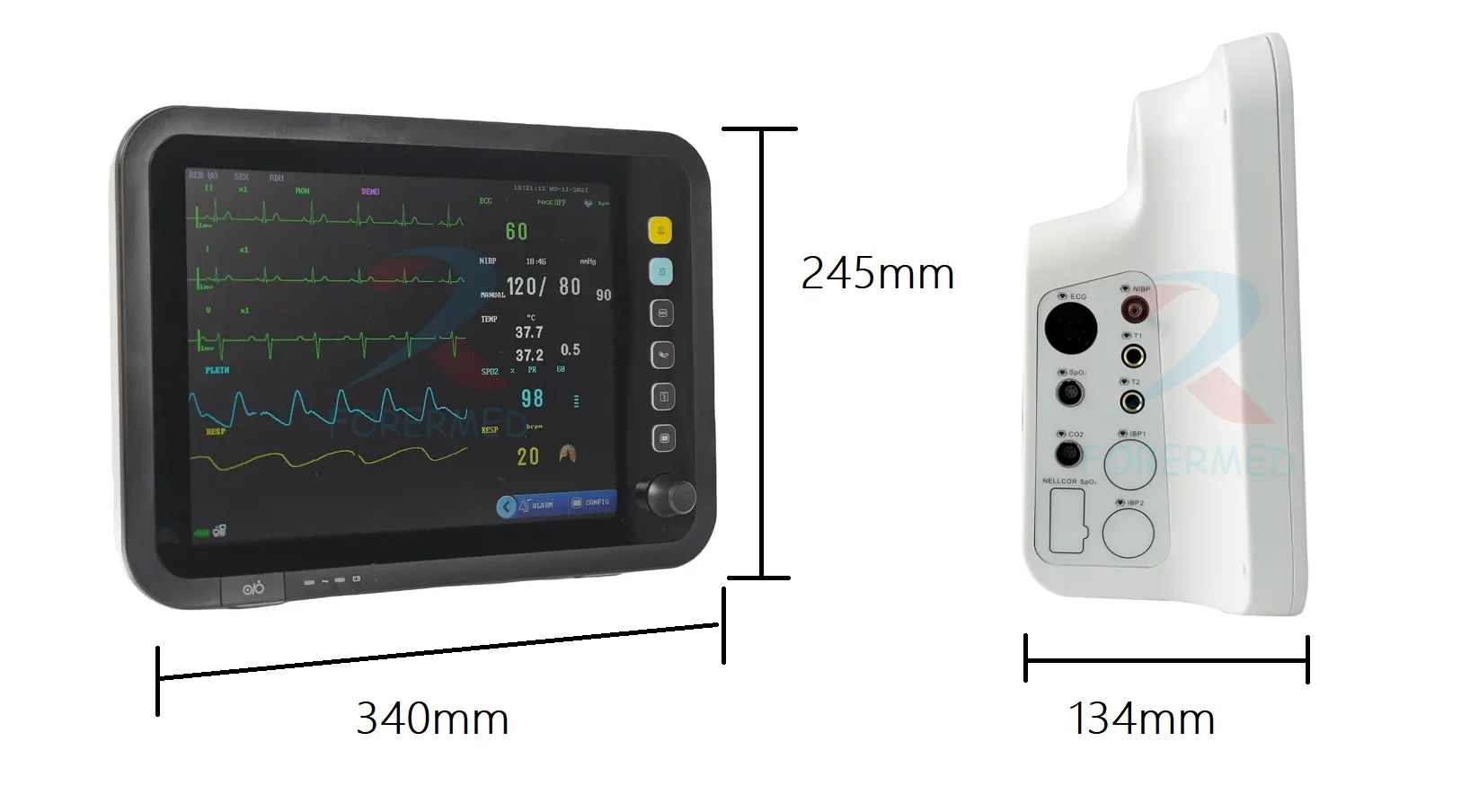

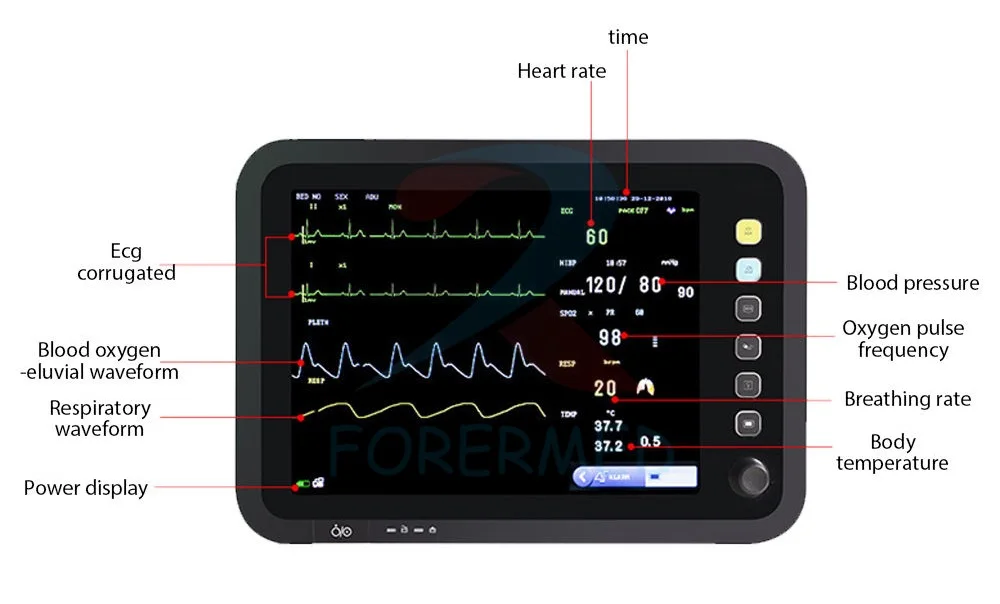

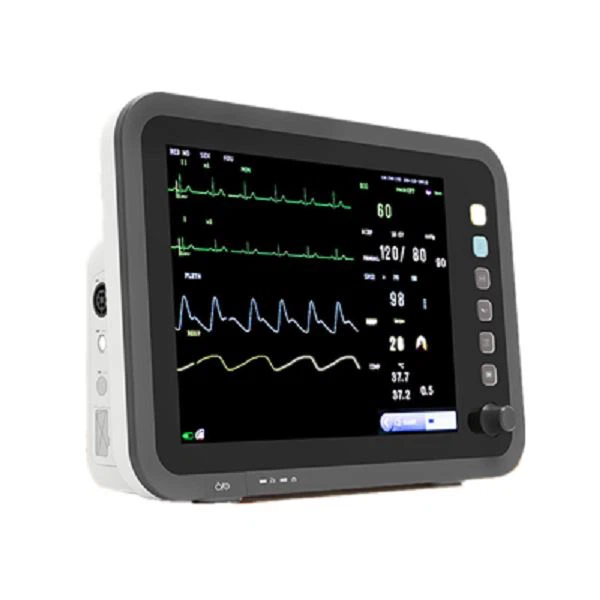

YJ-C8000 Multi-parameter Patient Monitor

Standard parameter configuration: ECG, heart rate, respiratory oxygen, pulse rate, non-invasive blood pressure, body temperature;
Our product has 7 major testing function modules, all independently developed, with its hardware, central processor, and core components.
Its testing accuracy reaches 98%, far ahead of similar monitoring equipment on the market.

Multi-parameter Patient Monitor

Competitive advantage

The company conducted a competitive advantage analysis to identify its strengths and weaknesses compared to its rivals.

Display

* 12.1"real color TFT Screen

Date Storage

Trend diagram/table: 720h
NIBP review:10000 events
Wave review: 12h
Alarm review:200 alarm events
Suppert drug concentration titration analysis

Enviroment

Operating environment:
Temperature: 0~40℃
Humidity:15%~80%
Pressure :86.0 kPa~106.0 kPa
Transport and Storage environment:
Temperature: -20~55℃
Humidity:10%~90%
Pressure:86.0 kPa~106.0 kPa

Power Requirements

AC: 100 ~240V.50Hz/60Hz
DC: Built-in rechargeable battery
Battery: 11.1V 24wh Li-ion Battery
2h operating after full charge
5min operating after low battery alarm

Application Range

Adult/Pediatric/Neonatal/Medicines/ Surgery
Operating Room/ICU/CCU

ST Segment

ST Segment Range: ﹣2.0 mV ~ + 2.0 mV
Accuracy:0.02 mV

Pulse Rate

Measure/alarm range: 20~300bpm
Resolution:1bpm
Accuracy :±3bpm

Optional accessories

IBP CO2 Nellcor SpO2

SpO2

Measurement range: 0~100%
Resolution:1%
Accuracy.:70%- 100% ± 2%
40%~ 69% :±3%

ECG

5 Leads: RA, LA, LL RL, V
Lead mode: I,Ⅱ, Ⅲ,m., AVR, AVL, AVF.V
Gain: x 1.25 mm/mV, 2.5 mm/mV.
5.0 mm/mV, 10 mm/mV, 20mm/mV (error ≤ 5%)
Sweep speed: 6.25mm/s.
12.5mm/s,25mm/s,50mm/s (error ≤ ± 10%)
Bandwidth: Surgery 1~25 Hz
Monitor 0.5~40 Hz
Diagnostic 0.05-130 Hz
Sensitivity: ＞200 μV P-P
CMRR: ≥ 112dB
Differential Input Impedance: >5M
ohm Electrode Offset Potential:±300mV
Polarization Voltage: ≥± 500mV
Input Impedance: ≥ 5 M
Calibration Voltage: 1 mV ± 5%

NIBP Method

Oscillometry Measure mode:

Manual, Auto. STAT Measure interval in auto mode: 1~5/10/15/30/60/90/120/180/240/480min Measure period in STAT mode: 5min Pulse rate range: 40- 240bpm

TEMP

Channel 2
Measure & alarm range: 0-50 ℃
Resolution: 0.1℃
Accuracy (no sensor) : ±0.1℃ (0-50 ℃ )

RESP

Method: impedance between RA-LL
Resp Impedance range: 0.3-3Ω
Base Impedance range: 200 Ω-4000 Ω
Bandwidth : 0.3 ~2.5Hz
Gain: x 0.25, x0.5, x1,x2 x4
Resp rate:
Measurement Range
-Adult 0 ~ 120BrPM
-Neonatal/Pediatric 0~150BrPM
Resoluition: 1 BrPM
Accuray: 7~ 150BrPM ( ±2BrPM); 0 ~ 6BrPM(unspecified)
Apnea Alarm: 10- 40s

Measure & alam range:

-Adult

SYS 40~280mmHg DIA 10 ~220mmHg MEAN 20 ~240mmHgl -Pediatric SYS 40 ~220mmHg DIA 10- 160mmHg MEAN 20- 170mmHg

-Neonatal

SYS 40~135mmHg DIA 10 ~100mmHg MEAN 20 ~100mmHg

Static pressure measurement Range:0~ 300mmHg

Measure & alam range:

Accuracy:

±3mmHg Resolution: 1mmHg Accuracy Max. Mean Error ± 5mmHg Max. Standard Deviation: 8mmHg Overpressure protection: Adult 300mmHg Pediatric 240mmHg Neonatal 150mmHg

Detailed Pictures

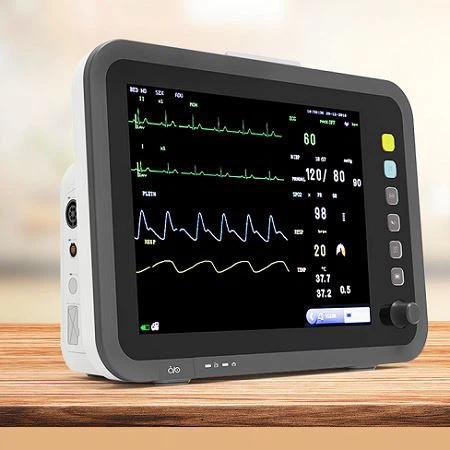

Multi-parameter Patient Monitor

RAQ

Q: 1. What kind of medical equipment does your company specialize in?

A: - Our company specializes in various medical equipment, including but not limited to medical ultrasound scanners, laboratory equipment, ICU equipment and surgical instruments, dental equipment, medical sterilizers, etc.

Q: 2. Which countries or regions do you export to?

A: - Our medical devices are exported worldwide, mainly in North and South America, Europe, Africa and Southeast Asia markets.

Q: 3. What is your shipping method and delivery time?

A: - We offer a variety of transportation options to meet the needs of our customers, including express, air, sea and land. Delivery times vary depending on the destination and the mode of transport chosen.

Q: 4. What payment methods do you accept?

A: - For your convenience, we accept various payment methods, including wire transfer, credit card and PayPal.

Q: 5. May we have a tour of your factory?

A: Of course, we welcome potential customers to visit our factory. Please contact us to arrange a visit.

Q: 6. Do you provide after-sales service?

A: - Yes, we provide comprehensive after-sales service, including product training, repair and technical support.

Q: 7. Can you provide customized solutions for medical devices?

A: - Yes, we have a dedicated team that can provide you with tailor-made solutions to meet your specific requirements.

Q: 8. What is your price range for medical equipment?

A: Our prices are competitive and vary according to the product and quantity ordered. Please contact us for a detailed quote.

Q: 9. How can we guarantee the authenticity of your products?

A: - All our products have CE, ISO, FDA and other certificates.

Q: 10. What is your target market for medical devices?

A: Our target markets include hospitals, clinics and medical institutions around the world, with a particular focus on emerging markets where demand for high-quality medical devices is high.

Contact Information

Tel: +8618237112626

Phone: +8618237112626

Email: forermed@yjcompany.com

Address: Wanda Center, Jinshui District, Zhengzhou, Henan, China

Whatsapp: +8618237112626

Skype: live:.cid.f4a1b4801c7fee8

Wechat: +8618237112626

Hot Tags: Multi-parameter Patient Monitor, China, suppliers, manufacturers, factory, low price

Standard accessories	NIBP cuft & tube
	ECG cable & electrodes
	SpO2 sensor
	TEMP probe
	Lithium-ion battery
	Power cable
	Operator's manual
Optional accessories	IBP
	CO2
	Nellcor SpO2
