Products Description

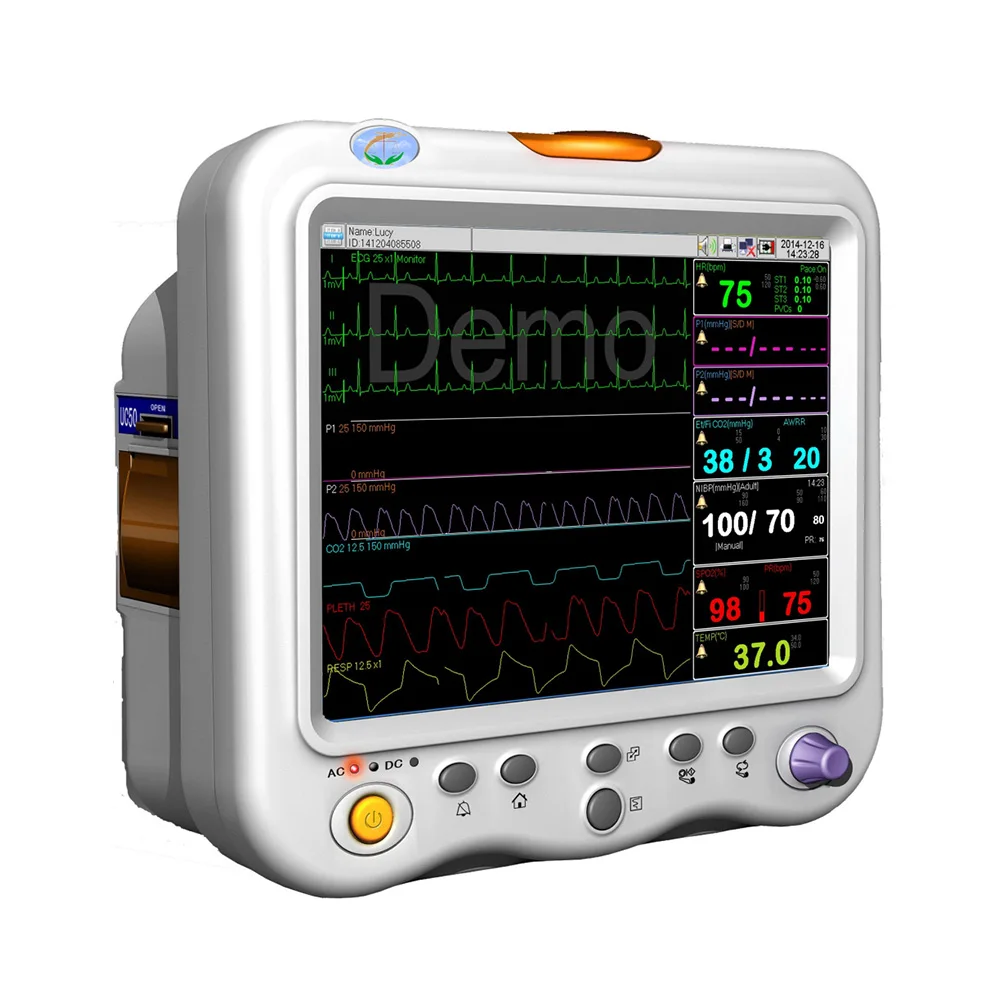

Multi-parameter Patient Monitor YJ-F15
Newly advanced A9 main board with Linux OS, calculating speed is 4 times faster than traditional products
Support storage of 2160 hours trend table and graph review, 2 hours waveform review, 2000 groups NIBP review and 2000 alarm events review
our services
Lorem ipsum dolor sit amet consectetur adipisicing elit.
Body
1. 15 inch high-brightness TFT LED Support display 9~13 waveforms
2.Support 7 channel ECG waveform display simultaneously
3.Optional touch screen
4.Optional HDMI output
Printer
Built-in high-speed 50mm thermal printer (Brand: SEIKO, Japan)
Central System
1.Optional Build-in wireless network module, supporting wired or wireless connection to the central monitoring station.
2.Optional Support HL7 (Health Level Seven)
Central System
1.Optional Build-in
wireless network module, supporting wired or wireless connection to the central monitoring station.
2.Optional Support HL7 (Health Level Seven
Linux OS
1.Support operation with mouse and computer keyboard (option)

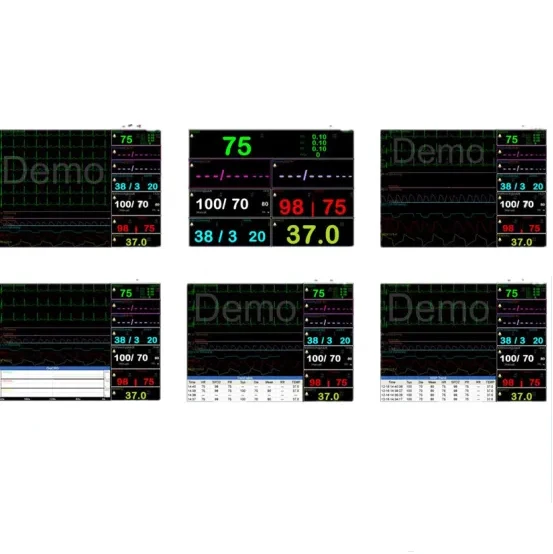

2.Multi-display mode to meet different clinical requirement, including standard interface, big font, OxyCRG, trend graph, NIBP review and full leads ECG interface.
3.NIBP self-test mode: including overpressure test, static pressure test and air leakage test.
4.Generate ID automatically when register a new patient Support medical history search by patient ID, name and mobile number
5.18 types of Arrhythmia analysis and real-time S-T segment analysis and pacemaker detection
6.Drug calculation and titration table
7.Support multi-language display
8.Support online software upgrading by net/USB
Service Features
1.The Support Tool helps technical personnel to – carry out configuration, upgrades and troubleshooting on an individual monitor. – back up the monitor settings.
2.The Service Mode is password-protected and ensures that only trained staff can access service tests and tasks. It includes Skin Type, Brightness Setting, Clear Data, NIBP Calibration and Touch Screen Calibration.
3.The Support Tool uses the USB interface of the monitor for software upgrading.
Detailed Pictures
RAQ
Q: 1. What kind of medical equipment does your company specialize in?
Q: 2. Which countries or regions do you export to?
Q: 3. What is your shipping method and delivery time?
Q: 4. What payment methods do you accept?
Q: 5. May we have a tour of your factory?
Q: 6. Do you provide after-sales service?
Q: 7. Can you provide customized solutions for medical devices?
Q: 8. What is your price range for medical equipment?
Q: 9. How can we guarantee the authenticity of your products?
Q: 10. What is your target market for medical devices?
Contact Information
Tel: +8618237112626
Phone: +8618237112626
Email: forermed@yjcompany.com
Address: Wanda Center, Jinshui District, Zhengzhou, Henan, China
Whatsapp: +8618237112626
Skype: live:.cid.f4a1b4801c7fee8
Wechat: +8618237112626
Hot Tags: multi-parameter patient monitor (15 inches), China, suppliers, manufacturers, factory, low price
|
Performance Specifications
|
|
|
Dimension and Weight
|
- Dimension: 380mm*360mm*160mm
- Weight: 4.5kg(excluding accessories) |
|
Power Supply
|
- Voltage: AC100～240V, 50/60HZ, Power≤60W
|
|
Display
|
- 15" color TFT LED
- Resolution: 1024*768 pixels |
|
Battery (Pluggable)
|
- Type:Rechargeable lithium battery 14.8V/2200mAh
- Charge Cycle: ≥500 times - Working time: 2 hours (optional larger battery for 4-5 hours) |
|
Recorder (Option)
|
- Method: Thermal printer
- Paper width: 50 mm (1.97 in) - Printing speed: 12.5/ 25/ 50 mm/s - Trace: Max. 3 tracks - Recording way: Real-time Recording, Review Printing,Periodic Recording, Alarm Recording |
|
Alarm
|
- Level: Low, medium and high
- Indication: Auditory and visual - Alarm volume adjustable - Alarm pause time: 1min, 2min - Parameter alarm type: Latch/ Unlatch |
|
Input Device
|
- Touch screen (option)
- Knob (Standard) - Keypad input (Standard)
- Mouse/ Keyboard input (option) |
|
System Output &Extensible Interface
|
- Ethernet Network: 1 standard RJ45 socket
- USB Port: 1 - Video Output: 1 HDMI port (option) |
|
Operating Environment
|
- Temperature: 5 ~ 40 ℃
- Humidity: 15% ~ 80% (non-condensing) - Atmosphere pressure: 86 KPa ~ 110 KPa |
|
Transportation and Storage
Environment |
- Temperature: -20～50 ℃
- Humidity: 10%～90% (non-condensing) - Atmosphere pressure: 86 KPa ~ 110 KPa |
|
Safety
|
- IEC60601-1 Approved, CE marking according to MDD93/42/EEC
- With reference to RoHS Directive 2011/65/EU recasting |
|
Trend & Reviewing
|
- Trend: 2160 hours
- ARR events: 128 groups of ARR events and associated waveform - NIBP measurement reviewing: 2000 groups - Waveform review: 2 hours - Alarm event: 2000 groups of parameter alarms events and associated parameter |
|
ECG
|
- Lead mode: 3/5 Leads, I, II, III or I, II, III, AVR,AVL, AVF, V
- Protection:Breakdown Voltage 4000VAC50/60Hz; Defibrillator proof - Gain: 2.5mm/mV (×0.25), 5.0mm/mV (×0.5),10mm/mV (×1), 20mm/mV (×2), 40 mm/ mV (×4), Auto - Sweep speed: 6.25mm/s, 12.5mm/s, 25mm/s,50mm/s - ECG signal range: ±12 mV (Gain × 0.25) - Accuracy: ±1bpm/ ±1%, whichever is greater - Resolution: 1 bpm - Leakage Current < 10 μA - Baseline Recovery:≤ 3s after defibrillation (Monitor mode);≤ 1s after defibrillation (Surgery mode)
- Bandwidth: Surgery 1 ~ 25 Hz ,Monitor 0.5 ~ 40 Hz , Diagnostic 0.05 ~ 120 Hz - Indication of Electrode Separation: Every electrode (exclusive of RL) |
|
Maternal Heart Rate
|
- Measure range: Adult: 0bpm; 10 ~ 300 bpm
Neonate: 0bpm; 10 ~ 350 bpm - Resolution: 1 bpm - Accuracy: ± 1% or ± 1bpm, whichever is greater |
|
ST Measurement
|
- Range: -2.0 ~ +2.0 mV
- Accuracy: -0.8mV～+0.8mV: ±0.02mV or ±10%, whichever is greater - Other range: unspecified- Resolution: 0.01mV |
|
Respiration
|
- Method: Impedance between RA-LL, RA-LA
- Gain: ×0.25, ×0.50, ×1, ×2, ×4 - Respiration Rate: 0bpm, 6 ~ 150 BrPM - Sweep speed: 6.25 mm/s, 12.5 mm/s, 25mm/s - Resolution: 1 BrPM - Accuracy: ±2 bpm or ±2%, whichever is greater - Apnea Alarm: 10 ~ 60 s |
|
NIBP
|
- Method: Oscillometric
- Measure mode: Manual, Auto, STAT - Measure Interval in AUTO Mode 1~480 min - STAT mode cycle time: Keep 5 minutes, at 5 seconds interval - Measure and Alarm Range: Adult:SYS: 30 ~ 270 mmHg DIA: 10 ~ 220 mmHg MEAN: 20 ~ 235 mmHg Pediatric: SYS: 40 ~ 235 mmHg DIA: 10 ~ 220 mmHg MEAN: 20 ~ 225 mmHg Neonate: SYS: 30 ~ 135 mmHg DIA: 10 ~ 110 mmHg MEAN: 20 ~ 125 mmHg - Static pressure accuracy: ±3mmHg - Resolution: 1mmHg - Accuracy: Maximum Mean error ±5mmHg |
|
Pulse Rate
|
- Range: 25~250bpm
- Accuracy: ±1% or ±1 bpm, whichever is greater - Resolution: 1bpm |
|
Temperature
|
- Technique: Thermistor probe (2.25K)
- Channel: Dual-channel, provide T1; T2; ΔT - Measuring and Alarm Range: 0.0 ℃~ 50 ℃ (32℉~ 122℉) - Unit: Celsius (℃), Fahrenheit ( ℉) - Resolution: 0.1℃or 1℉ - Accuracy: ±0.1℃(exclusive probe) |
|
SpO2 (Digital Technic)
|
- Measurement Range: 0 ~ 100 %
- Resolution: 1 % - Response Modes: Low, Medium, High - Accuracy: ±2% (70% ~ 100%) ;±3 % (35% ~ 69%) ; Unspecified (0 ~ 34%) - Support Pitch tone and multi-level volume |
Model Configuration
|
Standard Config. |
15 inch LED, 3/5 Lead ECG, NIBP, SpO2, Pulse Rate, Temperature, Respiration |
|
Optional Config. |
1/2 IBP, 2-Temperature, Nellcor SpO2, Masimo SpO2, 12-Lead ECG EtCO2(Mainstream/
Sidestream /Microstream),Anesthesia Depth Monitoring (CSM module),Multi-gas (AG) Monitoring |
|
Optional Accessories: |
Touch Screen, Printer, USB Mouse/Computer Keyboard Input Function, |
|
Remark: |
1) User can NOT choose USB mouse function and WIFI at the same time. 2) User can NOT choose touch screen and USB mouse function at the same time. |
