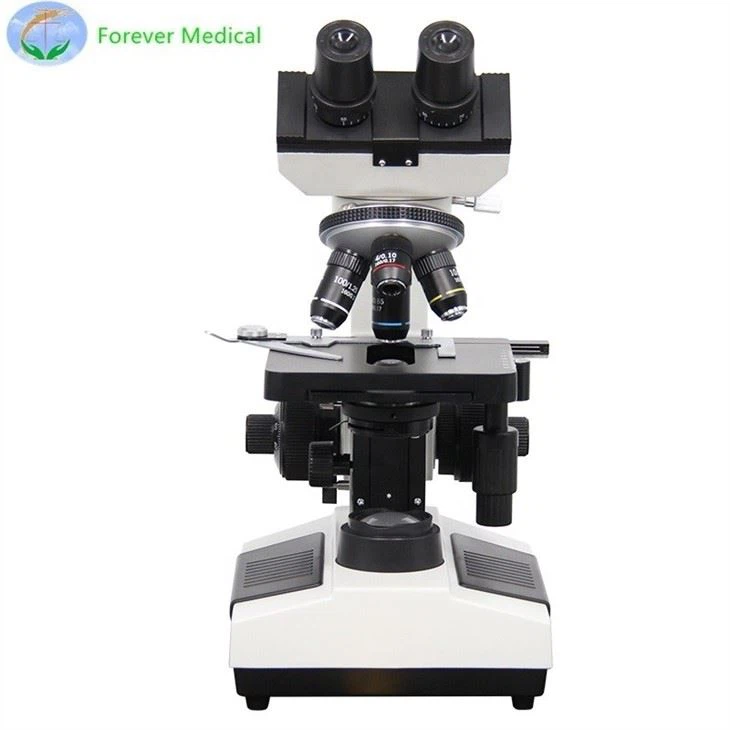

YJ-N107T Microscope
Classical microscope, using advanced calibration technology, to ensure high definition imaging, and make the appearance more beautiful, more excellent performance, can be widely used in biology, histology and pathology teaching and other fields.
| Technical specifications | |
| Observation head | Translational binocular head |
| Translational Trinocular Head | |
| Hinged binocular head | |
| Anti-mold device | |
| Eyepiece | WF10X |
| P16X | |
| converter | Four-hole converter |
| Five-hole converter | |
| Obiective | Achromatic objective lens 4X,10X,40X.100X |
| Platform | Double-layer movable platform 140X140mm moving range 75X50mm |
| collecting mirror | NA1.20 Abbe condenser with variable diaphragm and color filter |
| Focus system |
Coaxial coarse and fine focusing mechanism fine adjustment scale value 0.002mm, coarse movement stroke 37.7mm per circle,fine movement stroke 0.2mm per circle,focusing range 28mm |
| Handrail board | Black armrest board |
| Rubber hand wheel cover | Rubber hand wheel cover |
| Lighting system | S-LED continuously adjustable lighting brightness |
| 100V-240V/ 6V20W halogen lamp | |
| Plano-Concave Mirror | |
| Packing | Foam |
| Carton | |
