Products Description
YJ-SAB-500 Ophthalmic Scanner
The Ophthalmic A/B Scanner is a versatile ultrasound device used for diagnosing intra-ocular diseases with precision. It features a 15-inch LED touch screen, multiple scanning modes including vitreous body enhancement and retina observation, and supports measurements like anterior chamber depth and lens thickness. With an integrated patient database, report editor, and image capture, it ensures efficient operation. The portable design includes a built-in battery for up to 4 hours of use, making it ideal for various clinical settings.
Applications: Hospital, Clinic, Veterinary
The Scan with normal, vitreous body enhancement, retina observation mode, mainly used for diagnosis of intraocular diseases, display the location, shape range of the focus of infection and the relationship with the surrounding tissue. Can be diagnosed vitreous opacity, retinal detachment, eye base tumors etc. eye diseases. A scan is used to measure anterior chamber depth, lens thickness, axial length, calculate diopter of implant IOL as well.

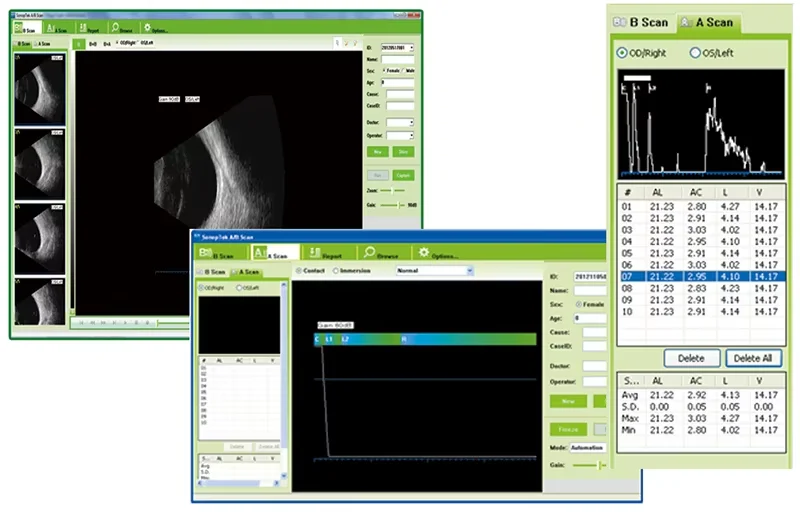

Detailed Picture
RAQ
Q: 1. What kind of medical equipment does your company specialize in?
Q: 2. Which countries or regions do you export to?
Q: 3. What is your shipping method and delivery time?
Q: 4. What payment methods do you accept?
Q: 5. May we have a tour of your factory?
Q: 6. Do you provide after-sales service?
Q: 7. Can you provide customized solutions for medical devices?
Q: 8. What is your price range for medical equipment?
Q: 9. How can we guarantee the authenticity of your products?
Q: 10. What is your target market for medical devices?
Contact Information
Tel: +8618237112626
Phone: +8618237112626
Email: forermed@yjcompany.com
Address: Wanda Center, Jinshui District, Zhengzhou, Henan, China
Whatsapp: +8618237112626
Skype: live:.cid.f4a1b4801c7fee8
Wechat: +8618237112626
Hot Tags: ophthalmic scanner, China, suppliers, manufacturers, factory, low price
Specification
|
A Scan |
B Scan |
|||
|
Frequency |
10MHz, with LED |
Frequency: |
10MHz/20MHz (optional) ,Magnetic driven, noiseless |
|
|
Depth |
40mm |
Scanning Mode |
Sector Scanning |
|
|
Precision |
±0.05 mm |
Magnify |
Multicontinuous magnification, Real-Time magnification |
|
|
Measurement |
Anterior chamber depth, lens thickness, vitreous body length, total length and average |
Resolution |
Lateral ≤0.3mm; Vertical≤0.2mm |
|
|
Eye mode |
Phakic / Aphakic / Dense / Various IOL |
Geometry position precision |
Lateral ≤10%; Vertical≤5% |
|
|
IOL Formula |
SRK-II, SRK-T, HOFFER-Q, HOLLADAY, BINKHORST-II, HAIGIS |
Depth |
60mm |
|
|
Stat. Calculation |
Average and standard deviation |
Enhance the part of vitreous body and retina |
||
|
Store |
10 Scanning results for each eye |
Gain of probe |
30dB-105dB |
|
|
Display Mode |
B, B+B, B+A, A |
Scanning Angle |
53° |
|
|
Hint |
preset keyword |
Gray Scale |
256 |
|
|
Case Search |
Multi-keywords |
False Color |
Multi colors. OCT |
|
|
Screen |
15 inch LCD |
Measurement type |
multigroup distances, perimeters and areas |
|
|
Built-in battery |
can use 4 hours |
Image post processing |
multiple curves processing, Pseudo-color processing curve |
|
|
User-defined report template poor credit secured loans |
Movies |
100 images movie review, AVI JPG format image output |
||
