-86 ℃ human organ Biological Deep Freezer
We supply Medical Ultra-low temperature Freezer,we devoted ourselves to send you clients high quality Cold Chain equipment with long terms warranty.
We are expecting to become your long-terms business partner in China.
1.Product Introduction of the -86 degree freezer
-86 °C Ultra low freezer is specially designed for long term storage of various biological products, such as germs, virus, erythrocytes, leukocytes, suits. It can be installed in institutions including blood banks, hospitals, epidemic prevention services, research institutes and laboratories for electronic and chemical plants, biological engineering institutes marine fishery companies.
2.Main Technical Parameters:
| Model | YJ-86L280 | YJ-86L360 | YJ-86L480 | YJ-86L590 | |
Technical | Cabinet Type | Vertical | Vertical | Vertical | Vertical |
Climate Class | N | N | N | N | |
Cooling Type | Direct cooling | Direct cooling | Direct cooling | Direct cooling | |
Defrost Mode | Manual | Manual | Manual | Manual | |
Refrigerant | CFC-Free, Mixing | CFC-Free, Mixing | CFC-Free, Mixing | CFC-Free, Mixing | |
Performance | cooling performance(℃) | -86 | |||
Temperature Range(℃) | -40~-86 | ||||
Material | Exterior Material | Galvanized steel powder coating | |||
Interior Material | Galvanized steel powder coating/stainless steel | ||||
Dimensions | Cap city(L) | 280L | 360L | 480L | 590L |
Interior Dimensions(W"D*H) | 440x580x1310mm | 440x580x1310mm | 600x580X1310mm | 740x580X1310mm | |
Exterior Dimensions(W*D*H) | 620x650X1920mm | 620x780x1920mm | 780x780X1920mm | 920x780X1920mm | |
Thickness of Cabinet Foamed Layer | Four walls and top with 90mm, bottom with 130mm | ||||
Thickness of Door | 90mm | 90mm | 90mm | 90mm | |
Capacity for 2 inch boxes | 180 | 340 | 320 | 400 | |
Inner door | 2 | 2 | 2 | 2 | |
Power Supply(V/Hz) | 220V/50Hz(110V/60Hz) | 220V/50Hz(110V/60Hz) | 220V/50Hz(110V/60Hz) | 220V/50Hz(110V/60Hz) | |
Controller | Display | 7” LCD touch screen | |||
High/Low Temperature | Y | Y | Y | Y | |
Hot Condenser | Y | Y | Y | Y | |
Power Failure | Y | Y | Y | Y | |
Sensor Error | Y | Y | Y | Y | |
Low Battery | Y | Y | Y | Y | |
High Ambient Temp | Y | Y | Y | Y | |
Door Ajar | Y | Y | Y | Y | |
Alarm mode | Sound and light alarm, remote alarm terminal | ||||
Caster | Y | Y 3 | Y | Y 3 | |
Test Hole | Y | Y | Y | Y | |
Shelves (stainless steel) | 3 | 3 | 3 | 3 | |
Chart Temperature Recorder | Optional | Optional | Optional | Optional | |
Accessories | Door locking device | Y | Y | Y | Y |
Handle | Y | Y | Y | Y | |
Pressure balance hole | Y | Y | Y | Y | |
USB Interface | Y | Y | Y | Y | |
Racks & Boxes | Optional | Optional | Optional | Optional | |
3.Product Feature And Application of the -40 degree freezer
1)Refrigeration System
Optimized cascade refrigeration technology, SECOP compressor to reach a high efficient refrigeration effect;
Specially designed Heat Exchanger, heat transfer high efficient, save Energy;
Dual independent refrigeration system, once one set fails, another set can maintain inner temperature at -70 °C (Models YJ -86L280 excepted);
CFC-Free overall situ polyurethane foaming insulation;
CFC-Free refrigerant
2)Temperature Control
Microprocessor control,7" color touch screen display inner temperature, ambient temperature, running status and alarm information clearly;
The inner temperature can be adjustable at the range of-10 °C ~-86 °C, with an increment of 0.1 °C;
3)Safety Control
Malfunction alarms: high temperature alarm, low temperature alarm, Sensor failure, Power failure alarm, Door jammed, low voltage of backup battery; Over temperature alarm system, set the alarm temperature as requirements;
Three alarming methods: buzzer alarming, digital flashing alarming and Remote alarm.
Protection function: power-on delay, time between stops; Chart temperature recorder monitor system(Optional).
4)Ergonomic Design
Design of computer-user interface based on 7” color touch screen;
Safety door lock, preventing unauthorized access;
Wide voltage design from 187V to 242V;
USB export interface for event and temperature data
Pressure-balanced port design, easy to open the door;
Heavy type caster and locking adjustable screw, easy to move and fix.

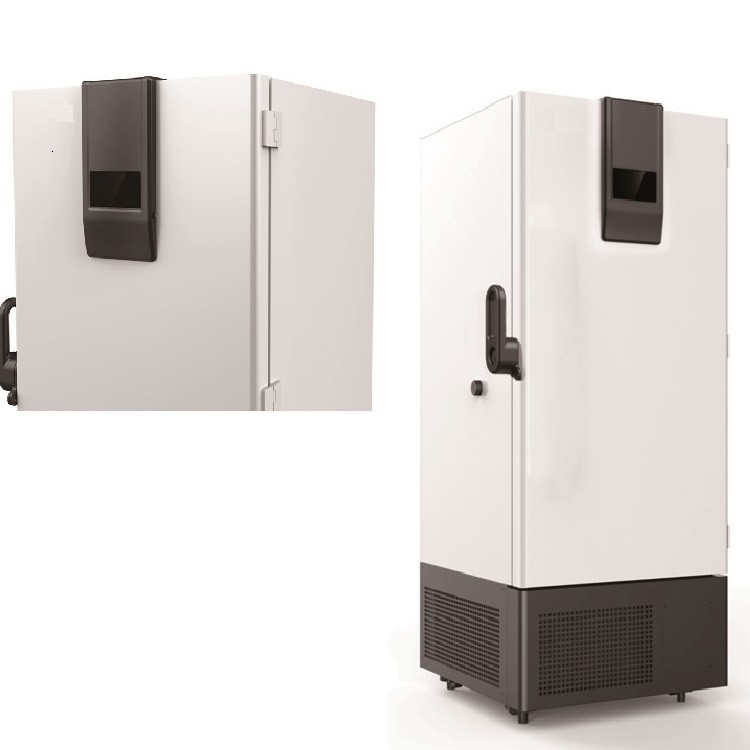

4.Product Detail of the -86 degree freezer

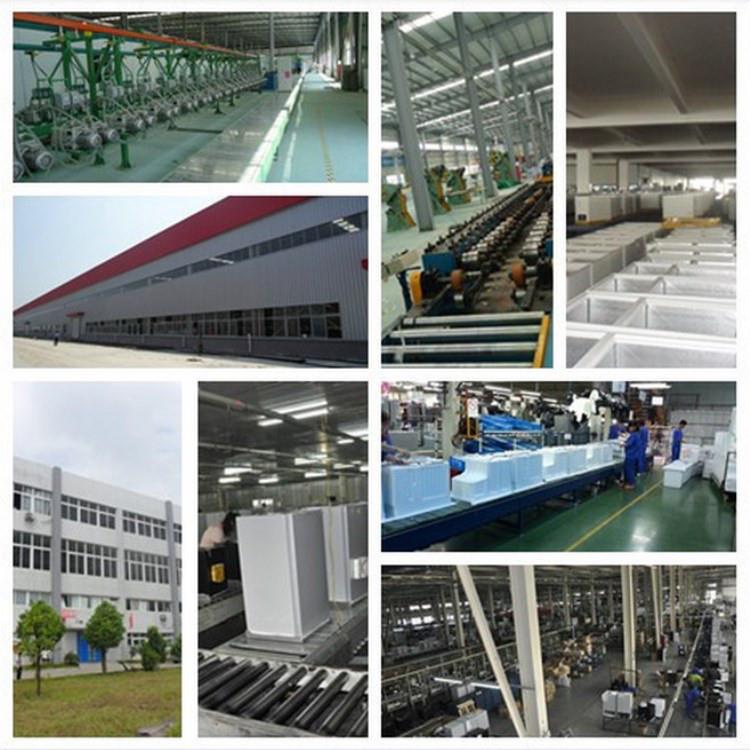

5.Product Qualification of the -86 degree freezer
6.Deliver
7.FAQ
Q:How can i order?
A:You can place the order online or contact with us.
Q:Can i make order with different products?
A:YES,customs can mix products in one order
Q:How about the deliver time?
A:with in 0 working days,can deliver immediately if we have stock.
