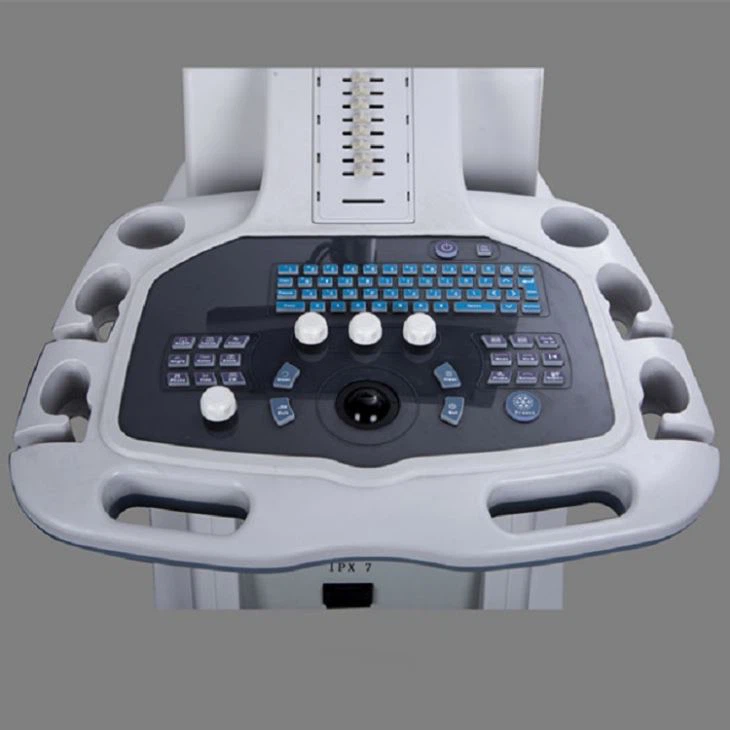

Good After-sales Trolley Ultrasound Machine

Color Digital Trolley Ultrasound Diagnosis System We are professional supplier of Ultrasound,We have color type and B/W type,Portable type and trolley Type. we devoted ourselves to send you clients high quality lab Clinical Equipment with long terms services. We are expecting to become your...

Send Inquiry

Chat Now

Description

Technical Parameters

Color Digital Trolley Ultrasound Diagnosis System

Good After-sales Trolley Ultrasound Machine

Features of Color Trolley Ultrasound YJ-U300T:

15inch LCD Monitor

Windows xp system and 64G hard disk

Convex array probe and one more probe

English User Manual

B,2B,4B, B/M, M, B/C display mode

Print/video/VGA/2 USB ports

Color doppler, THI, Itouch, PW, CMF,B/C mode

Introduction of Color Trolley Ultrasound YJ-U300T:

This product is suitable for the diagnosis of the soft tissue of the human dynamic graphics, such as the liver, gallbladder, kidney, spleen, pancreas, uterus, bladder, fetal, and family planning to check pregnant, check ring, obstetrics and gynecology.

Specification of Color Trolley Ultrasound YJ-U300T:

Model	YJ-U300T
Display mode	B&W mode: B, 2B, 4B, B/M, M,B/C Color Doppler mode: CFM, PDI, PW Duplex: Real-time simultaneous 2D, Doppler Gray scale: 256 Display: 15 inches LCD monitor Transducer frequency: 2.5-10 MHz Digital technology: Dynamic Receiving Focusing (DRF) Dynamic Frequency Scanning (DFS) Scanning depth: 300mm
Main Technical Specification:	Imaging Processing Pre-processing: 8-segment TGC Preset Gain (B&W, Color, Doppler) Audio PRF Dynamic Range Image enhancement Acoustic Power Post-processing: Gray map Black/white reverse Left/right reverse Up/down reverse Functions: Cine-loop: 1000 frame cine loop memory Storage media: 64G massive image-storage capacity Zoom: Pan Zoom USB ports: 2 THI: tissue harmonic imaging ITouch IClear Imaging
Measurement:	B mode: distance, circumference, area, volume, angle, fetal growth, cruve M mode: distance, time, velocity, heart rate Software package: abdomen, gynecology, obstetrics, cardiology, small parts, urology Doppler Mode: Vs, Vd, RI, PI, SD
