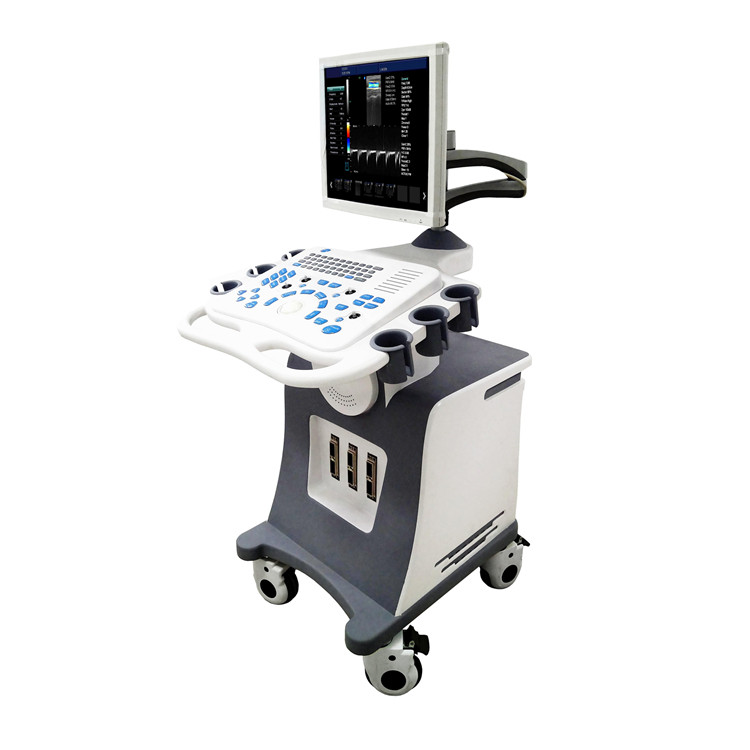

Trolley Color Doppler Ultrasound Machine (YJ-U80TPLUS)
Color ultrasound, B/W ultrasound, Human ultraound, Veterinary ultrasound, Portable ultrasound. Trolley ultrasound, etc...
we devoted ourselves to send you clients high quality Clinical Equipment with long terms services.
Introduction of Color Doppler Ultrasound Scanner YJ-U80T PLUS：
Color doppler YJ-U80TPLUS is a Full Digital Color Doppler Ultrasound Diagnostic System Machine, Based on Windows 7 platform, equipped with SSD (Solid State Disk), makes the storage safer and more reliable, easy for switching machine, 17 inch LED monitor. It can mesure: distance, circumference, area, volume, heart rate, tube diameter, narrow rate, angle, speed, abdomen, cardiac, general, musculoskeletal, early obstetric, middle and late obstetric, pelvic(uterus accessory), small organ, urology, peripheral, gestational week and EDD, fetal weight, etc.
Features of Color doppler YJ-U80TPLUS：
1.15 inch LCD display
2.Depth range：126-320mm
3.Built-in 60G solid state drive,External USB storage.
4.Probe automatic freeze protection to extend the life of the probe.
5.Rich clinical measurement software, apply to various department.
6.Display mode: B mode, C mode, PW mode, CW mode, real time 4D mode, B/C, B/C/PW, B/PW.
7.Probe Optional: Convex probe, micro-convex probe, 4D volume probe ,trans-vaginal probe, linear probe, trans-rectal probe.
Product Description
*Parameter:
Detection depth: ≥ 300mm. Lateral resolution: ≤ 1mm (depth ≤ 80mm)
≤ 2mm (80 <depth ≤ 130mm).Vertical resolution: ≤1mm(depth≤80mm)
≤2mm(80<depth≤130mm) Blind zone: ≤ 5 mm.
Precision geometric position: Horizontal ≤ 10%. Longitudinal ≤ 10%.
Signal channels: 64 channels Display: 17 inch LCD monitor.
PAL output interface Grey Scale: 256 Power range: AC220V ± 10% 3A.
Host Power: DC12.8V 11.5A Input power: ≤ 300VA.
Continuous working time: ≥ 8h.
*Application
Abdomen, OB&GYN, cardiology, vascular and small parts, urology, musculoskeletal, pediatrics and etc
*Displaying mode
B, 2B, 4B, left&right, B|M, B|D, PW, M, B mode, part zoom, B|C|D, B|C|M, B|C,
duplex, PW, CFM, CPA
*Signal processing
Full-digital beam forming, dynamic filter, orthogonal demodulating, space-time filter, dynamic
real-time receiving focusing, RDA, DRA, spectral processing, CFM processing
*Image processing
THI, speckle-reduction, color coder, frame averaging, micro- angle adjustment, wall filter, 256
grey scale, scanning angle/width control, composit processing of tissue and blood flow image
*General measurement
B mode: distance, angle, perimeter and area (ellipse method, Trace method), volume, histogram,
cross-section diagram
M mode: cardiac rate, time, distance, speed.
*Standard configuration
Main unit, 3.5MHz Multi-frequency convex probe(2.0, 3.0, 3.5, 4.0,5.5MHz),
17" LCD monitor, USB port DICOM3.0
*Optional configuration
High frequency linear probe:128 elements R40 wideband Multi-frequency 6.0,6.5,7.5,10,12MHz
Trans-vaginal probe:128 elements R10 wideband Multi-frequency 5.0,6.0,6.5,7.5,9.0MHZ
Phased array probe :64 elements R20 wideband Multi-frequency 2.0,2.1,3.5,4.0,5.0 MHz
*Printer: Video/Thermal printer, Laser printer
Probe Functions:
Convex probe: abdomen,liver,gallbladder,pancreas,spleen,kidney,uterus,thyroid,bladder,uterine appendages,fetal movement gynecology,obstetrics.
Linear probe: mammary gland,thyroid,epidermal tissue,lymph gland, etc.
Trans-vaginal probe: gynaecology vagina, etc.
FAQ：
Q: How long is the warranty time?
A: 24 Months
Q: What is the payment method?
A: Westunion, TT, Moneygram, Payapl, L/C etc.
Q: When do you delivery?
A: Usually in 7-30 days.
Q: Could you offer intallation or tranning oversea?
A: Yes, we offer the service for complex machine in charge.
Q: It is my 1st time purchase products oversea, how to promise its safe?
A: We are vertified company by Alibaba, and we attend many Intl.Fair every year.
Welcome to visit our shop and company.
Q: Can I order a sample?
A: Sure, delivery sample by global express in charge.
