2D B/W Notebook Ultrasound Diagnosis System
Specification of Medical Ultrasound Machine laptop portable ultrasound scanner machine
| Product Name | YJ-U500：best portable ultrasound machine, china b ultrasound scanner |
Scanning mode | convex/linear/micro-convex |
Probes | 96 elements convex probe, transvaginal probe, trans-rectal probe, high-frequency linear probe, visual artificial abortion probe |
Operation panel | user-friendly, convenient and flexible with a back-lit silica gel keyboard & trackball operation |
Monitor | 12-inch high resolution LED |
Magnification | ×0.8, ×0.8, ×0.90, ×0.95, ×1.0, ×1.05, ×1.10, ×1.20, ×1.30, ×1.40, ×1.50, ×1.60, ×1.80, ×2.0, ×2.2, ×2.5.(16 kinds) |
Measurement | distance, perimeter, area, volume, heart rate, gestational week, FW, AFI, EDD, maternity table, heart package etc. |
Image processing | up/ down, left / right, black / white conversion, edge enhancement, gamma correction, frame correlation, pseudo color processor( need external color display). |
Images of Medical Ultrasound Machine laptop portable ultrasound scanner machine

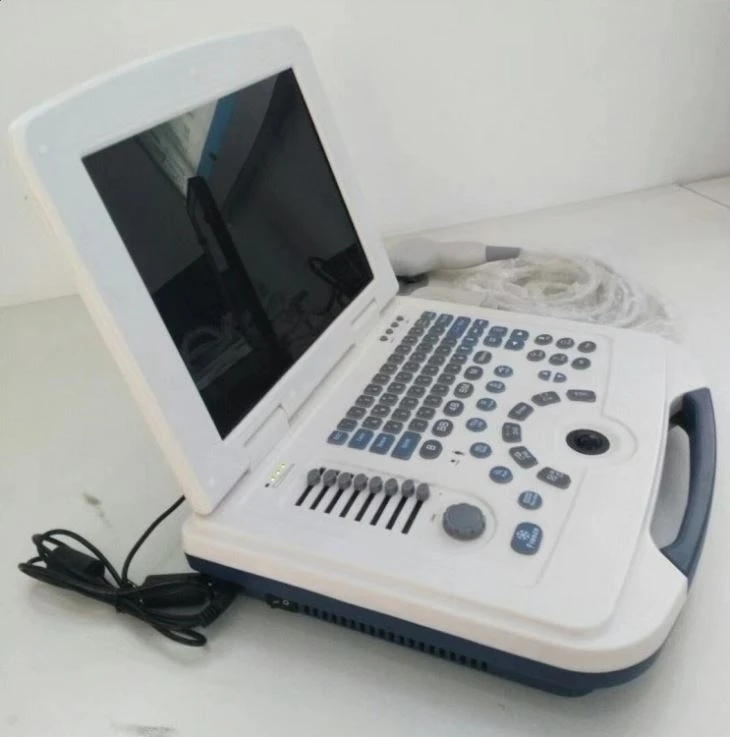

Introduction of Full-Digital Laptop Ultrasound Scanner YJ-U500:
Full-Digital Laptop Ultrasound Scanner YJ-U500 is light and portable, with a much clearer image and convenient to operate. YJ-U500 has an extra-long battery life with over 8 hours of standby time and 4 hours of working time - useful for consultation in various environments of cities, towns, outdoor. A variety of charging to ensure the examination consultation under different environments. That is applicable to the abdomen, obstetrics and gynecology, pediatrics, urology, small organs, musculoskeletal and so on.
Note:
1. Two years quality guarantee and 24 hours phone service for all the products supplied.
2. Training Service Supplied!
Features of Auto Full-Digital Laptop Ultrasound Scanner YJ-U500：
Various Probes
(96 elements):
Convex probe (2.0 - 5MHz)
Linear probe (5.5 - 9.0MHz)
Trans-vaginal probe (5.0 - 8.5MHz)
Micro-convex probe (4.0 - 7.0MHz)
Probe frequency:
Convex probe
Frequency: 2.0MHz,2.5MHz,3.5MHz,4.0MHz,5MHz
Depth: 16 level 【126,142,158,173,189,197,205,213,221,229,237,245,253,261,269,307mm】
Linear probe
Frequency: 5.5MHz,6.5MHz,7.0MHz,7.5MHz,9.0MHz
Depth: 16 level 【35,42,49,62,69,76,83,90,97,104mm】
Trans-vaginal probe
Frequency: 5.0MHz,5.5MHz,6.5MHz,7.5MHz,8.5MHz
Depth: 16 level 【62,69,76,83,90,97,104,111,125,139mm】
Micro-convex probe
Frequency: 4.0MHz,4.5MHz,5.0MHz,6.5MHz,7.0MHz
Depth: 16 level 【62,69,83,97,111,125,139,152,166,180mm】
Packaging:
