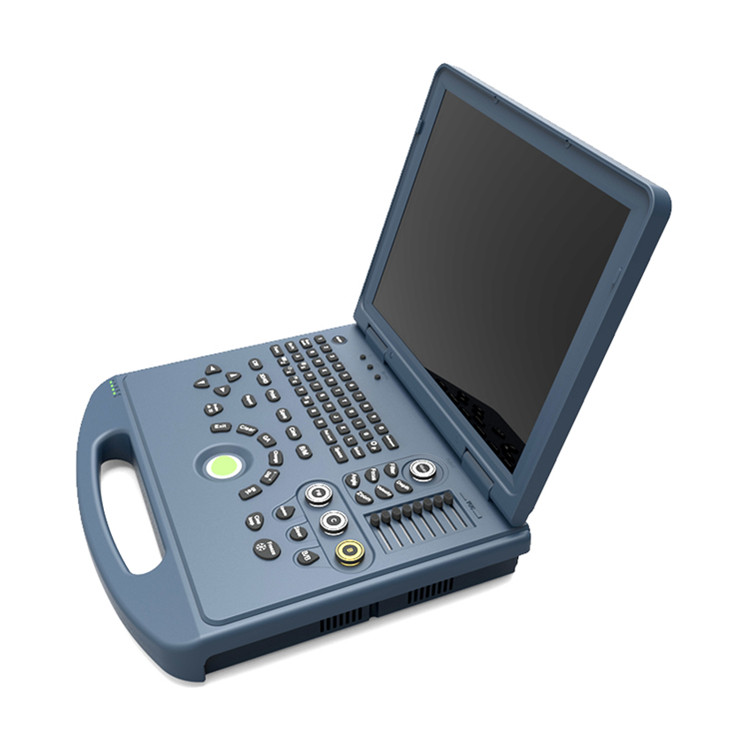

4D Notebook Color Ultrasound Scanner
Clinical Equipment(Color ultrasound, B/W ultrasound, Human ultrasound, Veterinary ultrasound, Portable ultrasound. Trolley ultrasound, etc...),we devoted ourselves to send you clients high quality Clinical Equipment with long terms services.
1. N.W. is about 6.7kgs, easy and portable to carry
2. Stable performance
3. 15" LCD screen
4. battery working time lasts over 3 hrs
5. ISO13485,CE
6. high resolution image quality
7. professional measurement software packages: OBSTETRIC, GYNECOLOGICAL, UROLOGY, SMALL ORGAN
We are expecting to become your long-terms business partner in China.
| Item | Specification | |
Model | doppler portatil 3d ecografo & 3d 4d colour doppler ultrasound | |
Display | 15" LCD screen | |
Power supply | 100V- 240V | |
Scanning mode | Electronic linear, electronic convex, Electronic phased array | |
Display mode | B mode, M mode, color mode, PW mode | |
Input/output port | PAL-D, SVGA (SVGA color monitor), USB port, VIDEO |
Based on Windows 7 platform, equipped with SSD (Solid State Disk), makes the storage safer and more reliable, easy for switching machine.
Built-in 15600mAh Lithium battery, enable continuous scanning ≥3 hours, battery capacity: 173Wh.
1,Monitor:15 inch LED medicinal monitor
2,Scanning mode:convex array/linear array/micro-convex array
3,Probe interface:≥1, single interface, probe automatic identification.
Support: convex, linear, trans-vaginal, micro-convex, 4D volume, rectal probes etc.
4,Language: Chinese/English/Spanish/French/Russian/Arabic/Vietnamese/Portuguese
5,Display mode: B mode(B, B+B, 4B, B+M,M), C mode, PW mode, real time 3D mode(4D), B/C, B/C/PW, B/PW: 4 scanning speed adjustable
6,Electronic focus: 4
7,Body mark: ≥57
8,Frequency: 2.0-12.0MHz multi-frequency (2.0MHz, 3.0MHz, 3.5MHz, 4.0MHz, 5.5MHz, 5.0MHz, 6.5MHz, 9.0MHz, 6.0MHz, 7.5MHz, 12.0MHz as per probe).
Convex probe frequency range: 2.0, 3.0, 3.5, 4.0, 5.5MHz
Trans-vaginal probe frequency range: 5.0, 6.0, 6.5, 7.5, 9.0MHz
Linear probe frequency range: 6.0, 6.5, 7.5, 10.0, 12.0MHz
Micro-convex probe R20 frequency range: 5.0, 6.0, 6.5, 7.5, 9.0MHz
Micro-convex probe R11 frequency range: 2.0, 3.0, 3.5, 4.0, 5.5, 6.5, 7.5, 10.0MHz
4D volume probe frequency: 2.0, 3.0, 3.5, 4.0, 5.5, 6.5MHz
FAQ：
Q: How long is the validity of quotation?
A: Generally,our price is valid within one month from the date of quotation .The price will be adjusted appropriately according to the price fluctuation of raw material and changes in market .
Q: Do you have the CE certificate ?
A: Yes, most of our products have the CE certificate.
Q: What is your Delivery time?
A: Usually, we make merchandise inventory, if we have the products in stock,The delivery time is 5-10 days after receiving the deposit;
If we don’t have the products in stock, we will arrange the production right now, the delivery time will be 15-20days,It depends on the quantity of order
Q: What is your Min.order?
A: There's no minimum quantity
