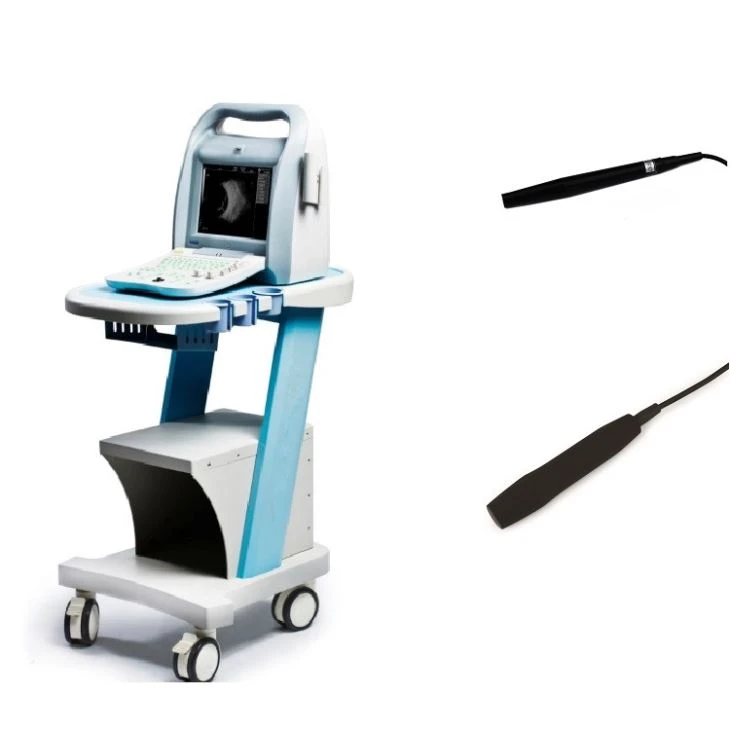

10MHZ AB EYE SACAN Ophthalmic Ultrasound
We supply Ophthalmic A/B Scan for many years,we devoted ourselves to send you clients high quality Clinical Equipment with long terms services.
We are expecting to become your long-terms business partner in China.
Introduction of Palm Ultrasound Scanner ODU8：
Adopt ARM9 Embedded Control Systems, FPGA signal processing system and elaborate selected ultrasonic hardware system.
10.4 inch high resolution and contrast LED screen, satisfy high-definition visual enjoyment
Silicone backlit keyboard design, equipped with photoelectric trackball and encoder , make operation easier.
Good quality hardware and software bring comfortable operating experience.
Specifications of Palm Ultrasound Scanner ODU8:
A scan parameter:
| Measuring range: | 15-35mm. |
Measuring accuracy: | ±0.02mm. |
Measuring parameter: | ACD, LENS, body Length, axial length. |
Eye mode: | normal/aphakia/dense cataract/PMMA, Acrylic & Silicon for Pseudo Phakic eyes. |
Measuring Mode: | Contact and Immersion, automatic and manual. |
Calculation: | std. deviation, average, automatical measuring 8 groups and average, accompany waveform, results correctable. |
Measurement methods: | A single-point measurement(under A mode); five-point measurement(under A mode). |
IOL Formula: | SRK-II, SRK-T, BINKHORST,HOLLADAY, HOFFER-Q, HAIGIS, any of two groups can control display. Calculate IOL, DEM, DAM, REEF, etc. And long term save 100 groups of measurement results of A scan. |
Magnification: | ×1.0,×2.0,x4.0. |
Display Depth: | 0~36mm , delayed depth: 0--36mm. |
Measurement Way: | A single point measurement |
B scan parameter:
| Scan mode: | High accuracy stepping motor drive sector scan. |
Scan Angle: | 53° |
Display Depth: | 0~88mm(incl.delayed depth) |
Delayed depth: | 25--32mm |
Gray: | 256 |
Frame frequency: | 30frames/s |
Depth seletion: | 8 |
Frame correlation: | 4 |
Edge enhancement: | 4 |
Compression Curve: | 8 |
Post-processing: | 8 |
Eight Pseudo colors: | 8 kinds (incl. B/W) |
Image storage | 100 frames permanent image storage. |
Cine loop: | 256 frames,can measure the playback image. |
Disk | Disk management. |
General Measurement: | multi-electronic-rule to measure distance, circumference, area(trace method, ellipse method),volume (ellipse method), angle , histogram, profile , stenosis and curvature etc. |
Features of Palm Ultrasound Scanner ODU8：
1. 10.4" high resolution color LED, high brightness, high contrast, wide visual, LED backlight, image clear and exquisite.
2. Double probe sockets: A mode probe: 10MHz, imported probe with fixation light; B mode probe: 10MHz, imported transducer.
3. Preset items
A. System setting (hospital name, mode selection, date, time, format, probe protection time, help, keyboard sound etc. )
B. IOL setting
C. Network setting, DICOM3.0
D. Password setting
E. Software upgrade setting
4. Diplay: B, B/B, 4B, B/A, A; A single-point measurement(under A mode), five-point measurement(under A mode)
5. Gains range: 0--120dB
6. Dynamic range: 30-100dB, visual and adjustable
7. Gray: 256
8. Intelligent TGC adjustment: 8
9. Internal D disk: 4GB, save mass images, reports, move clips, etc.
10. Report function: Print screen, IOL report, patient report with picture, etc.
11. Two USB ports, support for large capacity USB disk (support for document management/software upgrades/one-key storage), and laser printer directly print various image and report.
12. Dual-mode TV output: PAL/NTSC, connecting to thermal printer and ultrasonic working station.
13. DICOM3.0 network port, realizing network transmission easily.
14. Power supply: AC110/230 -15%~+10%(self-adaption supply voltage) 60/50Hz± 1Hz.
15. Net weight.: 8kg
16. Dimension: 400x186x385mm(length x width x height)
Standard Configuration of Palm Ultrasound Scanner ODU8
1 | Main unit: 1 pc |
2 | 10MHz mechanical sector B probe: 1 pc. |
3 | 10MHz A probe : 1 pc. |
4 | Calibration cup: 1 pc |
5 | Network cable: 1pc |
6 | Footswitch ：1 pc |
Optional Configuration:
| 1 | Trolley |
2 | Video Recorder |
3 | Ethernet switch |
4 | Immersion Shell |
5 | Print Box |
FAQ--Parameters：
10.4＂TFT Color Monitor
PROBE:
A Scan: 10MHz, imported ,built-in fixation light
B Scan: 10MHz,imported tranducer
GENERAL FUNCTIONS:
1. Monitor Display:hospital name, patient name, age, sex, L/R eye,etc.
2. Preset: system,IOL, DICOM,Password, Software upgrade
3. Patient's info: name, age, sex, ID
4. Display: B,B/B,4B ,B/A,A five-point measure,A single point measure
5. TGC:8; Gain : 0～120dB ;dynamic range: 30--100db,
