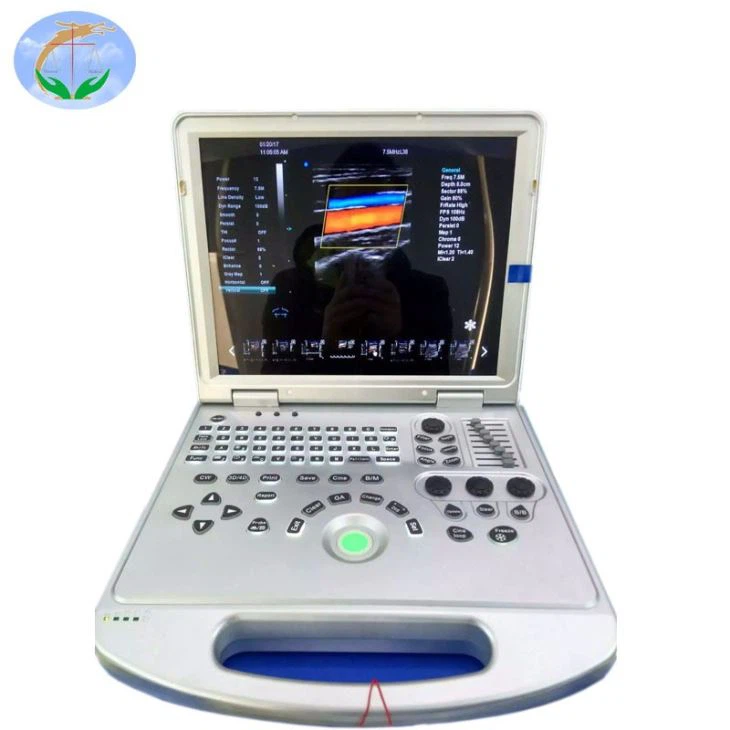

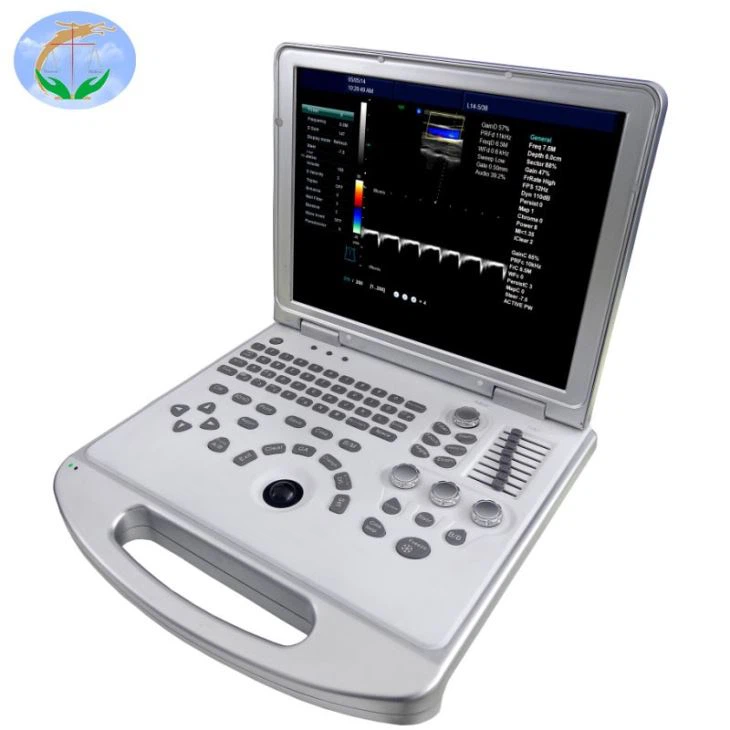

YJ-C60PLUS Laptop Color Doppler Ultrasound Machine
Product Description
Based on Windows 7 platform, equipped with SSD (Solid State Disk), makes the storage safer and more reliable, easy for switching machine. Built-in 15600mAh Lithium battery, enable continuous scanning ≥3 hours, battery capacity: 173Wh.
Parameter
1,Monitor：15 inch LED medicinal monitor
2,Scanning mode：convex array/linear array/micro-convex array/phased array
3,Probe interface：≥1, single interface, probe automatic identification.
Support: convex, linear, trans-vaginal, micro-convex, phased array, 4D volume, rectal probes etc.
4,Language: Chinese/English/Spanish/French/Russian/Arabic/Vietnamese/Portuguese
5,Display mode: B mode(B, B+B, 4B, B+M,M), C mode, PW mode, CW mode, real time 3D mode(4D),
B/C, B/C/PW, B/PW: 4 scanning speed adjustable
6,Electronic focus: 4
7,Body mark: ≥57
Measurement
distance, circumference, area, volume, heart rate, tube diameter, narrow rate, angle, speed, abdomen, cardiac, general, musculoskeletal, early obstetric, middle and late obstetric, pelvic(uterus accessory), small organ, urology, peripheral, gestational week and EDD, fetal weight, etc, formula can be converted to edit in obstetric measurement. The distance, circumference and volume measurement of 3D mode.
Optional Probe
|
Convex probe |
frequency range: 2.0, 3.0, 3.5, 4.0, 5.5MHz |
|
Trans-vaginal |
frequency range: 5.0, 6.0, 6.5, 7.5, 9.0MHz |
|
Phased array probe |
frequency range: 2.0, 3.0, 3.5, 4.0, 5.0MHz |
|
Linear probe |
frequency range: 6.0, 6.5, 7.5, 10.0, 12.0MHz |
|
Micro-convex probe |
R20 frequency range: 5.0, 6.0, 6.5, 7.5, 9.0MHz |
|
Micro-convex probe |
R11 frequency range: 2.0, 3.0, 3.5, 4.0, 5.5, 6.5, 7.5, 10.0MHz |
|
4D volume probe |
frequency: 2.0, 3.0, 3.5, 4.0, 5.5, 6.5MHz |
Technical Parameters
|
Gray Scale |
256 |
|
With gravel positioning, dynamic target tracking function. |
|
|
Dynamic range |
0-270dB |
|
Intelligent TGC |
8 segments |
|
Pre-processiong |
variable aperture, dynamic apodization, dynamic digital filtering, multi-beam parallel processing technology, THI etc. |
|
Post-processing |
Dynamic range 0-270dB |
|
black and white afterglow 0-7 |
|
|
Smoothing 0-7 |
|
|
Gray curve 1-16 |
|
|
Frame correlation |
|
|
SHG (Second Harmonic Generation) |
|
|
Sound power |
|
|
Wall filter |
|
|
Cumulative number, baseline adjustment, sampling frame adjustment, spectrum sampling volume, spectral sampling volume angle, PRF, |
|
|
Blind zone |
≤4 |
|
Max scanning depth |
320mm |
|
Geometric accuracy |
horizontal≤5%, vertical≤5% |
|
Resolution |
lateral≤2mm, axial≤1mm |
|
External interface |
VIDEO, USB port *4, DICOM 3.0 |
|
Magnification |
16 kinds; disease diagnosis more accurate |
|
Frame rate |
5-1016fps (adjustable as per requirement) |
|
Scanning range |
5%--100% |
|
Gain control |
Total gain 0～127dB, PW gain 0-15, CFM gain: 0-15 |
|
Image optimization |
6 level adjustable |
|
Smoothing |
8 level adjustable |
|
Edge enhancement |
8 level adjustable |
|
PRF |
16 level adjustable (1.82-29.43KHz) |
|
Gray level curve |
16 level adjustable |
|
Sound power |
15 level adjustable |

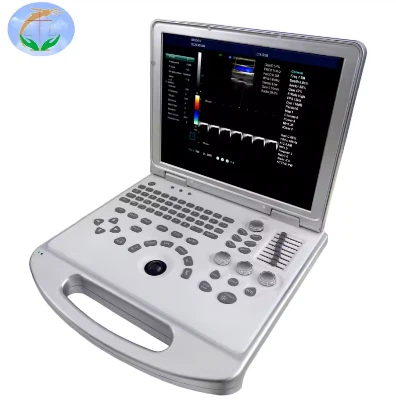

Detailed product pictures
