Tissue Harmonic Imaging(THI) Ultrasound Scanner

B,B/B,4B,B/M,M,PW,B/C,B/C/D,B/D, duplex, triplex, CFM

Signal processing

Full-digital beam forming, dynamic filter, dynamic real time receiving focusing, RDA, DRA, spectral processing, CFM processing, real-time dynamic focusing, dynamic aperture in all fields

Image processing

THI
PSHI TM broadband multi-frequency harmonic image
Speckle-reduction
Power adjustable
Smoothing function
iBeam TM intelligent space image technology
iZoom TM undistorted full screen image
Free Xros M
Engineer control technology with low power consumption
Edge enhancement Image optimizing disposal
One-key optimization
Image conversion
Up/down conversion
Left/right conversion
Intelligent built-in workstation system(Chinese/English)
Doppler Sound output volume adjustable
Wall filter adjustable
Base line adjustable
Sampling frame adjustable
Spectrum sampling volume adjustable
Spectrum sampling volume angle adjustable
PRF adjustable

General measurement

B mode-distance, circumference, area, volume, angle, area Red, Diam Red
M mode- distance, time, velocity, heart rate

Abdomen
measurement

Liver, GB, Aorta, GBWT, CBD, Portal Vein, Spleen

OB packages

EDD table :GS ,BPD, CRL,FL,YS,TAD,LV,OFD,NT,AC,HC, APAD, Cxlength.

Gynecological packages

Uterine measurement (Uterine diameter, uterine endometrial); left/right ovary measurement; left/right sacculus measurement; Cervix; Uterine depth

Urology packages

Left/right kidney measurement, Volume, Cortex

Small parts Measurement

Left/ right thyroid, volume, Isthnus and calculating report

Cardiac Measurement Package

Heart rate, Valve speed, LV, aortic, mitral, ventricular

Skeletal & Muscles

Skeletal & Muscles, distance, area, Hip angle

Vascular

Senosis D, senosis A, Lt/Rt VVA, Lt/Rt Rulb, Lt/Rt ICA

Body mark

Abdominal , Gynecology, Obstetrics, Small parts

Scanning depth

Up to 300mm

Cine loop

Automatically & manually, speed control

Image storage format

BMP,JPEG,PNG

Image storage size

500G

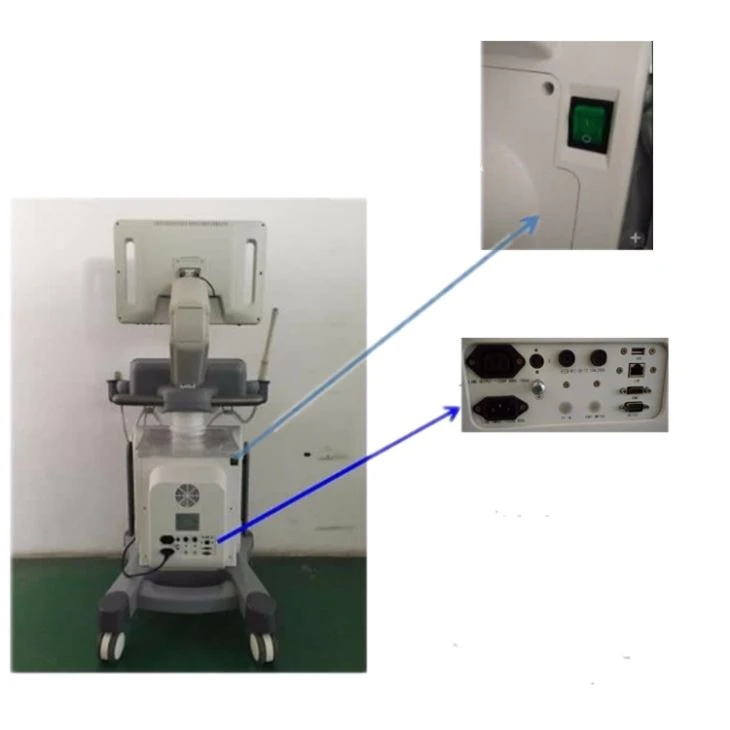

Input/output ports

VGA, USB port, DICOM port(network port)

Standard Configuration

Main unit, 15 inch LED monitor, 3.5Mhz convex probe, 7.5Mhz linear probe, free arm, 4 probe connectors, user's manual, 500G hard disk, DVD-RW

Option

6.5Mhz transvaginal probe, 19 inch LED monitor , video printer, laser printer, DICOM 3.0, biopsy kit

5 Steps Multi-frequency

3.5Mhz abdominal probe

2.0, 3.0, 3.5, 4.0, 5.5Mhz

6.5Mhz transvaginal probe

5.0, 6.0, 6.5, 7.5, 9.0Mhz

7.5Mhz linear probe

6.0, 6.5, 7.5, 10.0, 12.0Mhz

3.5MHz micro-convex probe

2.0, 2.5, 3.5, 4.5, 5.0Mhz

3.0Mhz phased array probe

2.0, 3.0, 3.5, 4.0, 5.5Mhz

4D volume probe

2.0, 3.0, 3.5, 4.0, 5.5Mhz
