Products Description

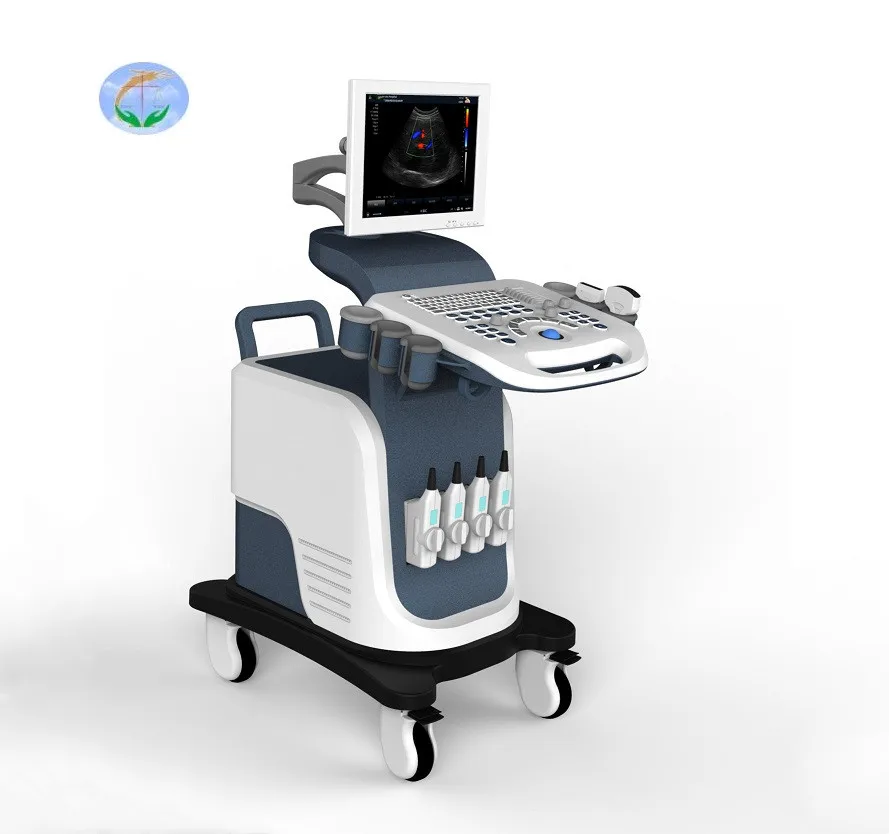

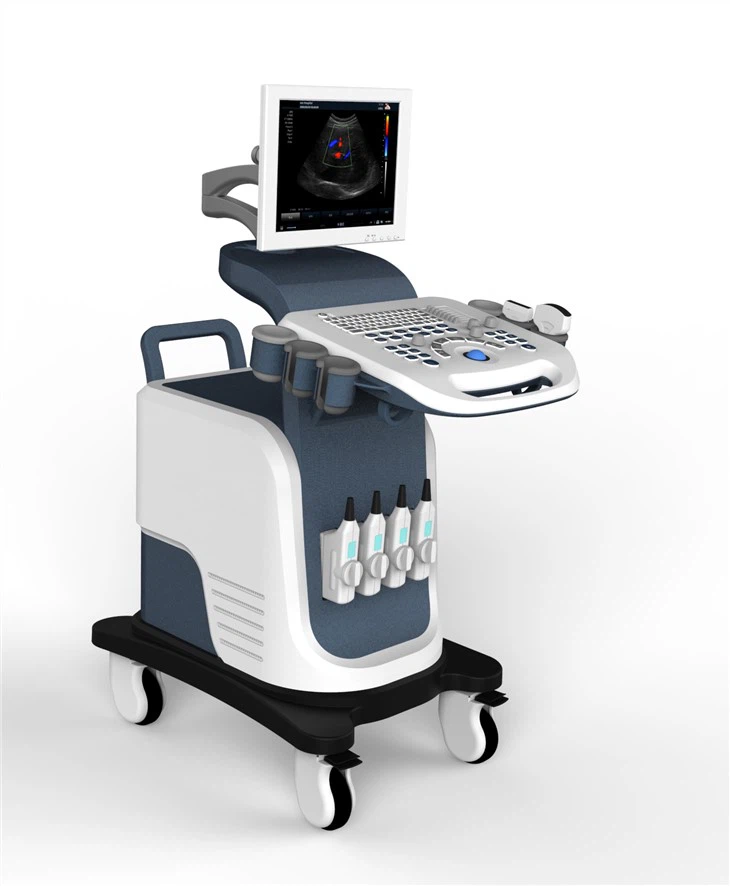

YJ-X7800 Full Digital Color Doppler System
Full Digital Color Doppler System has a unique shape of elegant atmosphere and the latest generation of application digital Color Doppler diagnostic system which can be widely applicable to diagnose abdomen,obstetrics, gynecology, cardiac, mammary gland,musculoskeletal and peripheral vessel.
Storage and transportation environmental requirements
Ambient temperature range：－10℃～＋55℃
Relatice humidity Range ：≤80 %
The atmospheric pressure range：500hPa～1060hPa
Power Supply：AC220V±22V,50Hz±1Hz
Measurement and calculation:
- B mode routine measurement: Distance, circumference, area, volume, angle, ratio, and stenos rate.
- M mode routine measurement: Heart rate, time, distance, speed, ratio, etc.
- Gynecology measurement: Uterus, cervix, endometrial, ovary, follicular. Obstetrics measurement: EGA, ETD, fetal weight estimation, AFI index, OB report (including OB tables).
- Cardiology measurement: LV measurement. Urology measurement: Prostate volume, displacement volume, bladder capacity, and residual urine output.
- PW measurements: Time, speed, Heart Rate, RI, PI, etc.
- Other measurement: Slice volume measurement, hip joint angle measurement.
Detailed Pictures
RAQ
Q: 1. What kind of medical equipment does your company specialize in?
Q: 2. Which countries or regions do you export to?
Q: 3. What is your shipping method and delivery time?
Q: 4. What payment methods do you accept?
Q: 5. May we have a tour of your factory?
Q: 6. Do you provide after-sales service?
Q: 7. Can you provide customized solutions for medical devices?
Q: 8. What is your price range for medical equipment?
Q: 9. How can we guarantee the authenticity of your products?
Q: 10. What is your target market for medical devices?
Contact Information
Tel: +8618237112626
Phone: +8618237112626
Email: forermed@yjcompany.com
Address: Wanda Center, Jinshui District, Zhengzhou, Henan, China
Whatsapp: +8618237112626
Skype: live:.cid.f4a1b4801c7fee8
Wechat: +8618237112626
Hot Tags: Full Digital Color Doppler System, China, suppliers, manufacturers, factory, low price
|
Standard configuration features |
||||
|
Image mode |
digital beam forming, tissue harmonic imaging |
|||
|
B/D dual-purpose |
linear array: B/PWD; convex array: B/PWD |
|||
|
Pseudo color processing |
16 kinds of pseudo color encoding can optional |
|||
|
Gain adjusts |
8 segments TGC, B/M/D/C is independently adjustable; TGC curve can show and hide automatically |
|||
|
Image storage |
Image storage, video storage, cine loop, disk storage capacity≥128G SSD |
|||
