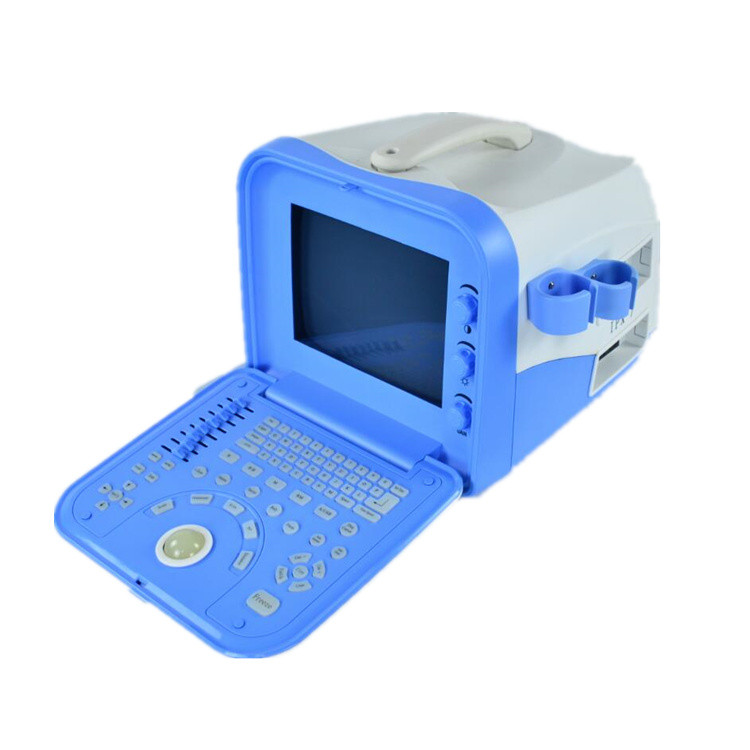

2D B/W Portable Ultrasound Diagnosis Machine

2D B/W Portable Ultrasound Diagnosis System Our new designed Imagine Diagnosis Equipment,hand hold and keyoard,,make it more convenient. And it can be produced by OEM style. Relying on the powerful measurement & calculation software, Portable Ultrasound Scanner (YJ-U100A) can be use for...

Send InquiryChat Now
Product Details

2D B/W Portable Ultrasound Diagnosis System


Our new designed Imagine Diagnosis Equipment,hand hold and keyoard,,make it more convenient. And it can be produced by OEM style.

Relying on the powerful measurement & calculation software, Portable Ultrasound Scanner (YJ-U100A) can be use for Human and animals. It has 10 inch VGA monitor, Light and compact design, simple to use.

Product Description


Main Features:

Powerful measurement & calculation software packages

8-Segment TGC ABD Trackball adjustment

10 inch LED screen

OB measurements: BPD, GS, CRL, FL, AC, HC, etc

Permanent function of image store: 32 images

Back-lit keyboard

2 probe connectors

Probe automatic identification

Main technical specification

Scanning mode: Convex/Linear/Trans-vaginal/Trans-rectal;

Display modes: B, B+B, B+M, M, 4B;

Scanning depth: 240mm;

Gray scales: 256;

Body marks: 33;

Function of image magnification: image zoom (real-time status under B mode), up to 5 times (area); local amplification function which can be enlarged under the real-time and froze;

Image conversion: up/down, left/right, black/white;

Function of puncture guide;

Max dynamic range>=100db;

Detecting depth>=190mm, scanning depth>=240mm;

The geometric location accuracy: vertical<=5%; lateral<=5%; blind spot: <=4mm;

Vertical resolution: <=1mm (depth<=130mm) < =2mm (130mm Lateral resolution: <=1mm (depth<=130mm) < =2mm (130mm Gamma: 4 gray scale γ transform function;

Variety of focus selection and multi-stage dynamic focusing with 4 transmit focus; support to launch multi-focus combination;

Built-in pseudo color processor, Pal-D and VGA video output, can connect external screen monitors, color monitors, VCRs, video image printer and other equipment.

Fixed characters and real-time clock and calendar display;

Software reset function;

Printer function: can connect laser printer and Video printer directly;

Comment: Date, Name, Sex, Age, Hospital, Annotation;

Zooming: *1.0, *1.2, *1.5, *2.0;

Port: USB 2.0, VGA, Video connector;

Wide application: abdomen, OB/GYN, urology, cardiology, small parts etc;

USB Function of image store: more than Sixteen thousand images;

Power supply: AC 110V-240V, 50HZ/60HZ;

Probe connector: 2;

USB/VGA/ ports;

Video connector;

Measurement:

General menu: Distance, Area, Volume, Angle, Ellipse;

Obstetrics menu: GS, CRL, BPD, HC, AC, FL, Fetus Weight;

Heart menu: Distance, Time, Slope, Rhythm;

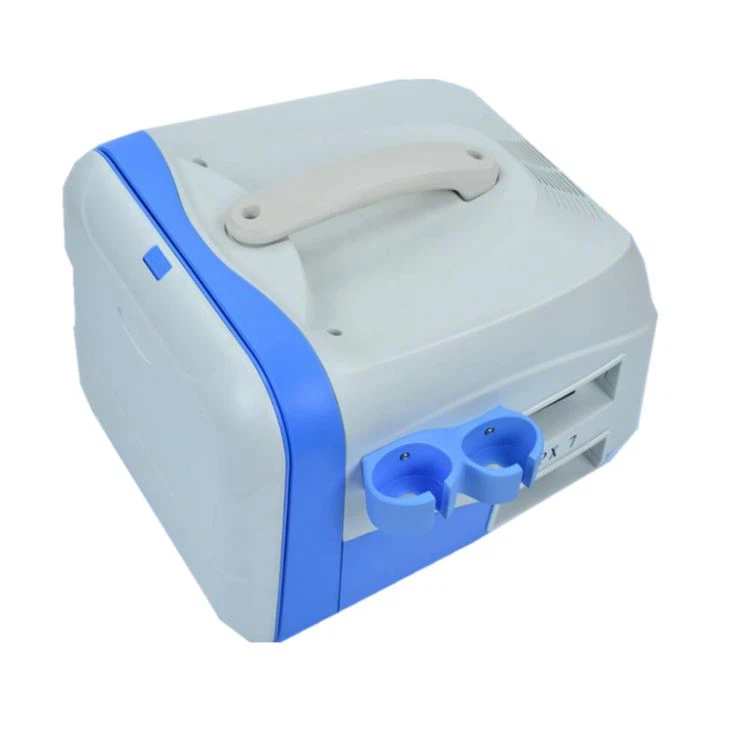

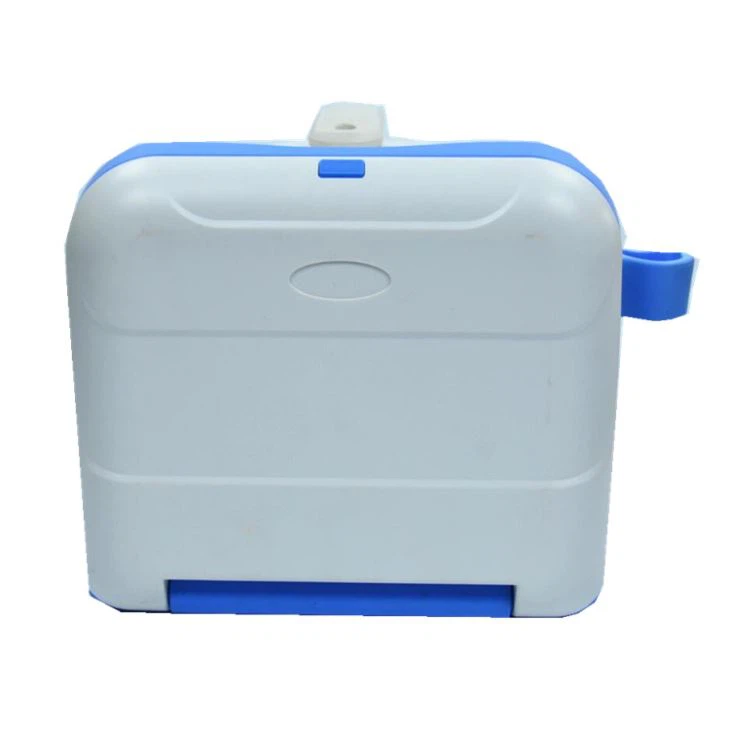

Detailed Images


Main Features:

Powerful measurement & calculation software packages

8-Segment TGC ABD Trackball adjustment

10 inch LED monitor

Permanent function of image store: 32 images

Back-lit keyboard

2 probe connectors

Probe automatic identification

Standard configuration:

10 inches LED main unit 1set;

60R/3.5MHZ Convex array probe 1pc;

Power line 1pc;

Ground line 1pc;

Fuse 4 pc;

User’s manual in English 1pc;

Warranty card 1pc

Features of Portable Ultrasound Scanner YJ-U100A:

1.Powerful measurement & calculation software packages

2.8-Segment TGC Trackball adjustment

3.10 inch VGA monitor

4.OB measurements: BPD, GS, CRL, FL, AC, HC, etc

5.Permanent function of image store: 32 images

6.All back light keyboard

7.2 probe connectors

8.Probe automatic identification

Shipment

Transport

1. Shipment will be arranged as 7working days after getting the payment.

2. Import fees and charges are the buyer's responsibility.

To make sure that you may receive the items at the minimum tax, we will negotiate the name of the item with low value.

If you have special requests, please advise us on your order advance.


Our Service

1.For all your inquires, we will reply you in detail within 24 hours

2.We own professional team who have professional attitude to recommend products and services, introducing for you.

3.The product has one year free warranty, after it is still providing after-sales service;

4.We offer OEM services. Can print your own logo on the product;

5.We have very experienced engineers; can help you better use our products.

Your satisfaction is our duty! It will be our great honor to serve you.

We do hope we can offer you more help in medical field and build the long term business relationship with you.

FAQ

Q: How to buy your products?

A: For some products we have on stock , you can take away the products after you arrange the payment ;If we don't have stock ,we will start the production once getting the payment.

Q: What's the warranty for the products?

A: The free warranty is 18 months from the date of exportation date.

Q: Can we visit your factory?

A: Of course, welcome to visit our factory if you come to China.

Q: How long is the validity of quotation?

A: Generally, our price is valid within one month from the date of quotation.

The price will be adjusted appropriately as the price fluctuation of raw material in the market.

Q: What's the production date after we confirm the order?

A: This depends on the quantity. Normally, it is about 3-7 working days at sight of your payment. Please contact us for more detail information.
