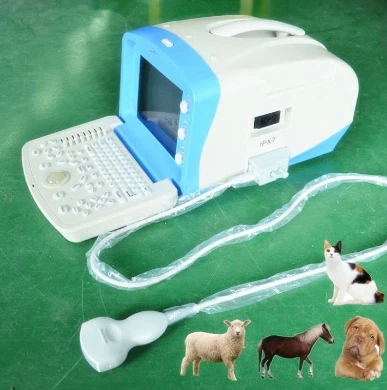

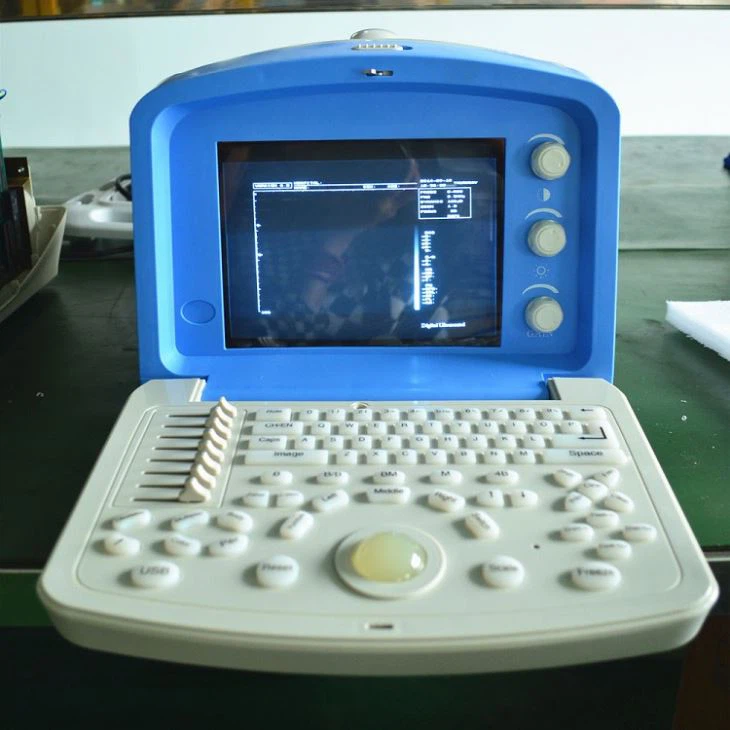

2D B/W Portable Ultrasound System Scanner
We supply Clinical Equipment(Color ultrasound, B/W ultrasound, Human ultraound, Veterinary ultrasound, Portable ultrasound. Trolley ultrasound, etc...),we devoted ourselves to send you clients high quality Clinical Equipment with long terms services.
We are expecting to become your long-terms business partner in China.
Features:
● Application of FPGA& SMT technology, brief circuits with reliable performance
● Dynamic frequency imaging, multistage focusing, aperture control
● Multi-frequency (4-frequency) & high sensitivity probe contributes to high resolution images
● Applicable to abdominal, obstetrics, gynecological, urological and small parts diagnosis
● Cline-loop & permanent image storage
● 8-segment TGC
● Built-in color coding module & VGA video outlet
● User-friendly with one-touch keyboard & trackball operation
● USB port
Specification:
● Display modes: B, B+B, B+M, M, 4B
● Scanner depth: 230mm
● Gray scale: 256
● Image magnification: x0.8, x1.0, x1.2, x1.5, x2.0
● Cline-loop: maximum 128 frames
● Permanent Image storage: 32 frames
● Image conversion: up/down, left/right, black/white
● Local zoom: 4(can be used at frozen/real-time)
● Frame correlation: selectable 4 levels
● Body marks: 43
● Pseudo color processor: 7 colors
● Video output: PAL-D, VGA
● Monitor: external monitor can be used
● Measurement: distance, circumference, area, heart rate, pregnant week, fetal weight, EDD
● Comments: real-time clock, date, scanning depth, model of probes, parameter of frame correlation, combination of focus, patient's ID, gender, age
● Power supply: AC220V±22V or AC110±11V, 50Hz±1Hz or 60 Hz±1Hz
● Gross Weight: 12kgs
● Net Weight: 10kgs(including probe)
● Carton Size: 47cm x 39cm x 39cm
Standard:
● 10-inch SVGA high resolution monitor
● 2 probe connector
● 1 USB
● 80 elements R60, 3.5MHz multi-frequency convex probe
Optional:
● High frequency linear probe
● Electronic trans-vaginal probe
● Micro-Convex probe
● Video thermal recorder
Features of Portable Ultrasound Scanner YJ-U100C：
1.Powerful measurement &calculation software packages
2.8-Segment TGC ABD Trackball adjustment
3.12 inch LCD monitor
4.Permanent function of image store: 32 images Back-lit keyboard
5.OB measurements: BPD, GS, CRL, FL, AC, HC, etc 2 probe connectors
6.Probe automatic identification
Product Parameter
| Product name | 2D B/W Portable Ultrasound System Scanner |
| Wide application | abdomen, OB/GYN, urology, cardiology etc |
| OB measurements | BPD, GS, CRL, FL, AC, HC, etc |
| Output | two groups of electrotherapy and one group of heating t |
| LCD monitor | 12 inch |
| Probe sockets | 2 |
| Carton Size | 54*41*44(cm) |
| G.W | 11KGS |
| Qty/Ctn | 1 |
FAQ：
Q1：When was Henan Forever Medical Co., Ltd. founded, and what scale has it developed to now?
A：Founded in 2016, Henan Forever Medical Co., Ltd. currently has 4 production bases and a research institute.
Q2：Do Henan Forever Medical Co., Ltd.'s products have international certifications?
A：Yes, all products of Henan Forever Medical Co., Ltd. have obtained CE and ISO certifications.
Q3：What types of products does Henan Forever Medical Co., Ltd. provide sale and service for?
A：The company offers sale and service of medical devices including Sterilizers, Ultrasound Scanners, and Laboratory Equipment.
Q4：What is Henan Forever Medical Co., Ltd.'s positioning in the medical device field?
A：The company is committed to becoming a reliable supplier and exporter for customers in the field of medical devices.
