B/W Digital Trolley Ultrasound Workstation System
We supply Clinical Equipment(Color ultrasound, B/W ultrasound, Human ultraound, Veterinary ultrasound, Portable ultrasound. Trolley ultrasound, etc...),we devoted ourselves to send you clients high quality Clinical Equipment with long terms services.
We are expecting to become your long-terms business partner in China.

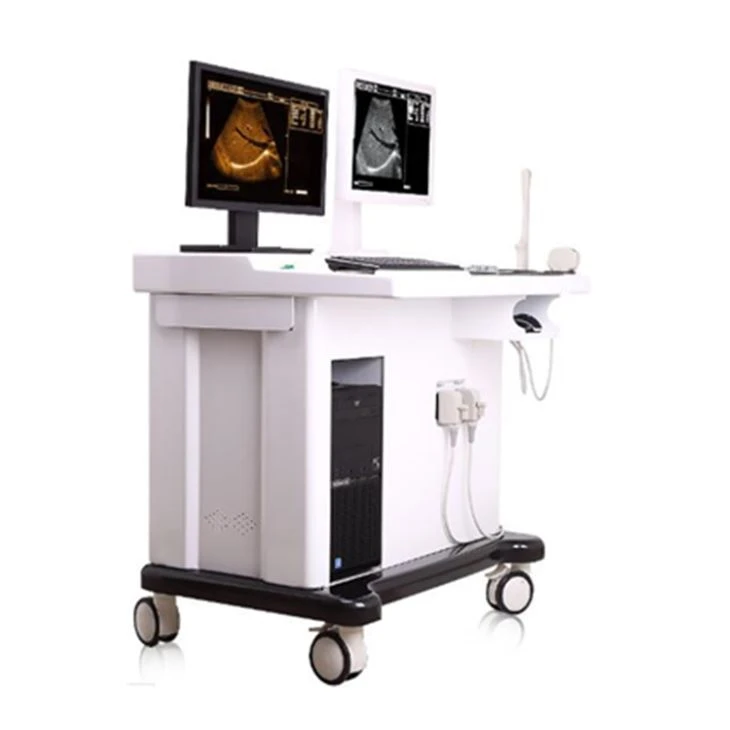

Introduction of Digital Trolley Ultrasound Scanner with Workstation YJ-U80T：
Color doppler YJ-U80T is a Digital Trolley B/W Ultrasound Diagnostic System machine, equipped with, 15” LCD monitor. The device is applicable for hospitals and clinics for examining liver, GB, spleen, kidney, pancreas, heart, bladder, uterus, etc.
Note:
1,Two years quality guarantee and 24 hours phone service for all the products supplied.
2,Training Service Supplied!
Specifications of Full Digital Ultrasound Scanner YJ-U80T:
| Full Digital Ultrasound Scanner YJ-U80T | |
Ultrasound Scanner | |
Detecting depth | ≥ 220mm |
Monitor | 15” LCD monitor |
Image Modes | B, B+B, B+M, M, 4B |
Gray Scale | 256 |
Image amplification | ×1.0; ×1.2; ×1.5; ×2.0 |
Local zoom | 2 times |
Electronic focusing | 4 focuses combination randomly |
Measurement | distance; circumference; area; heart rate; gestational week; fetal weight etc |
Annotation | time; date; ID; age; sex; detecting depth; probe type; focus; frame correlation etc |
Cine-loop | 341 |
Image load/storage | 32 |
Body marks | 40 types |
Obstetric table | BPD; CRL; GS; FL; AC; HC; FW; EDD |
Language | English-Chinese |
Power requirements | 100V~130V/220V~240V, 50/60Hz |
Net Weight | 40Kgs(including probe) |
Dimension (mm) | 910*760*900; 40*35*37 ( CRT monitor carton ) |
Imaging workstation specification | |
Main board | Gigabyte G31M |
CPU | INTEL Celeron 430 1.8MHz |
EMS memory | Kingston800 1G |
Hard disk | Western Digital 160G |
Monitor | 19" LCD |
Electromechanical | phillips+ GREATWALL |
Keyboard | Lisheng |
Mouse | double swallow optional mouse |
Standard configuration: | 1) Ultrasound Scanner with 17" CRT Monitor: 1pc |
Optional | 7.5 MHz Linear Probe |
HS Code | 901812910 |
Features of Full Digital Ultrasound Scanner YJ-U80T：
● Display image in real time, frozen, amplified, black- white reversed, up/down conversed and shift depth in real time.
● Video output: PAL and VGA; large screen monitor, videocassette recorder, video image printer.
●Soft keyboard and track ball to make operation faster, convenient and flexible.
● Trolley structured with plastic cover. Switch power is used without working frequency transformer.
● FPGA and SMT in the device make the device high integrated, small volume and light weight.
● The device passed clinical verifications of safety and diagnosis validity in its manufacturing
FAQ：
Q: What is time of delivery?
A: Since our products are produced according to each specific order, the delivery period will be 15days after confirmation of order. If it is small or sample order, please do check with us about whether we have ready goods in stock to make delivery as soon as possible.
Q: What about quality assurance?
A: We offer one year warranty period beginning from the time of shipment for medical equipment, Per minor problems, we can provide free spare parts for replacements, Per serious problems, we can make replacement of free charge. But if the machine is damaged due to rough handling during the transportation, we are free of any responsibility, but we will still provide help to the buyer issue claims against the shipping company or insurance company, thus all the spare parts or expenses should be borne by buyer.
Q: What is payment terms?
A: T/T in advance, Western Union
Q: Which shipping company usually using?
A: MAERSK-LINE, PIL, COSCO, SAFMARINE, MARUBA, APL, CMA, CSAV, K-LINE, MSC, NYK, AND DHL, EMS, TNT, UPS FOR COURIER, buyer's option will be our priority, we will give suggestion according to the schedule and services.
Delivery:
