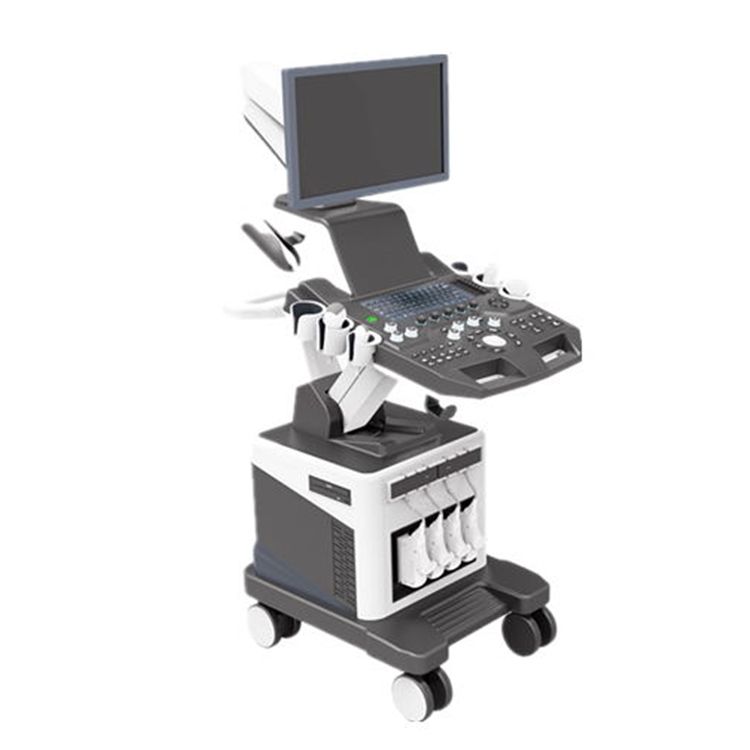

Real-time Panoramic Sonoscape 4D Trolley Color Doppler

3D Trolley Color Ultrasound Diagnosis System Leading image process technical and advanced and practical clinical solution method. Applicable to diagnosis of abdominal organs(trans-vaginal included), superficial organs and cardiac. With scalable design, upgrade continuously, fully meet the needs...

Send InquiryChat Now
Product Details

3D Trolley Color Ultrasound Diagnosis System


Leading image process technical and advanced and practical clinical solution method. Applicable to diagnosis of abdominal organs(trans-vaginal included), superficial organs and cardiac. With scalable design, upgrade continuously, fully meet the needs of clinical application extension.

Windows Embedded operation system (EN language)

19’’medical monitor(1280*1024)+10.4'' touch monitor

Intel i5 processor

4G RAM

120G SSD+500G HDD

Transducer type: Convex, Linear, Sector Phased, Micro Convex, 4D Volume Convex, Endocavity, Veterinary linear

Applications: Abdominal, OB/GYN, Urology, Cardiac, Vascular,Small Parts, Pediatric, MSK

Probe ports: 4 Active

Image modes: 2D, 3D, 4D, Color/PW/CW/Power/Directional Color Power Doppler, Tissue Doppler, Color M-Mode, Free Steering (Anatomical) M-Mode

Features:

Compound Imaging

Speckle Reduction Imaging

Tissue Harmonics Imaging

4D Real-time

Automatic Image Optimization

Tissue Doppler

Image optimization

Multi-Beam

IMT

Trapezoidal imaging

iBank database

Export Options:

DICOM, Ethernet, JPG/BMP/PNG,AVI, Network Storage, USB Memory Stick.

USB DVD/CD+R(W)

DICOM modes: Store, Print, Working list, Storage Commitment, Structured Reports

Input/Output: VGA, 2 USB Ports, Ethernet, Dicom, Built-in speakers


Features of Color Doppler Ultrasound Scanner YJ-U800TPLUS:

1.18.5 inch LCD display

2.4 probe connectors

3.Multi-angle adjustable joint arm design

4.Built-in 60G solid state drive, External USB storage

5.Humanized ergonomic design to improve the operating comfort

6.Probe automatic freeze protection to extend the life of the probe

7.Rich clinical measurement software, apply to various department

8.Display mode: B mode, C mode, PW mode, CW mode, real time 4D mode, B/C, B/C/PW, B/PW.

9.Probe Optional: Phased array probe, Convex probe, micro-convex probe, 4D volume probe ,

10.10.4’’ touch screen for option

11.Depth range:126-320mm

12.Built-in 60G solid state drive,External USB storage.

13.Probe automatic freeze protection to extend the life of the probe.

14.Rich clinical measurement software, apply to various department.

15.Display mode: B mode, C mode, PW mode, CW mode, real time 4D mode, B/C, B/C/PW, B/PW.

16.Probe Optional: Convex probe, micro-convex probe, 4D volume probe ,trans-vaginal probe, linear probe, trans-rectal probe.


FAQ:

1.How to get your products? Do you have any distributor in our country?

You can buy the products from our factory directly.

Normally the procedure is :

-Sign the contract

-Payment by T/T(or West Union,Paypal,Money Gram,etc.)

-Contact the shipping company to delivery the goods to your city.

2. What is the warranty?

Our Portable Ultrasound Machine are manufactured under the strict guidelines established by ISO 9001: 2000 Standards. All items come with at least a 2-year warranty. We carry all of the full-coverage warranty services.

3. Does it have good image quality?

Great question. Yes. Its image quality is comparable or better than most new mid-range ultrasound machines. The difference is that the Dawei ultrasound offers more modalities and is more versatile than most Portable Ultrasound Machine in its price range.

4. Can we visit your factory?

Of course,we will prepare for everything in advance if it is necessary.Generally speaking,it is requirement that customers must will/have build agency relationship or business relationship with our factory.

5. How long is the validity of quotation?

Generally speaking,our Portable Ultrasound Machine price is valid within one month from the date quoted. We reserve the right to adjust the price appropriately according to the price fluctuation of raw material and changes in market.

Please make sure you got the latest quote before placing an order.

Hot Tags: real-time panoramic sonoscape 4D trolley color doppler, China, suppliers, manufacturers, factory, low price
